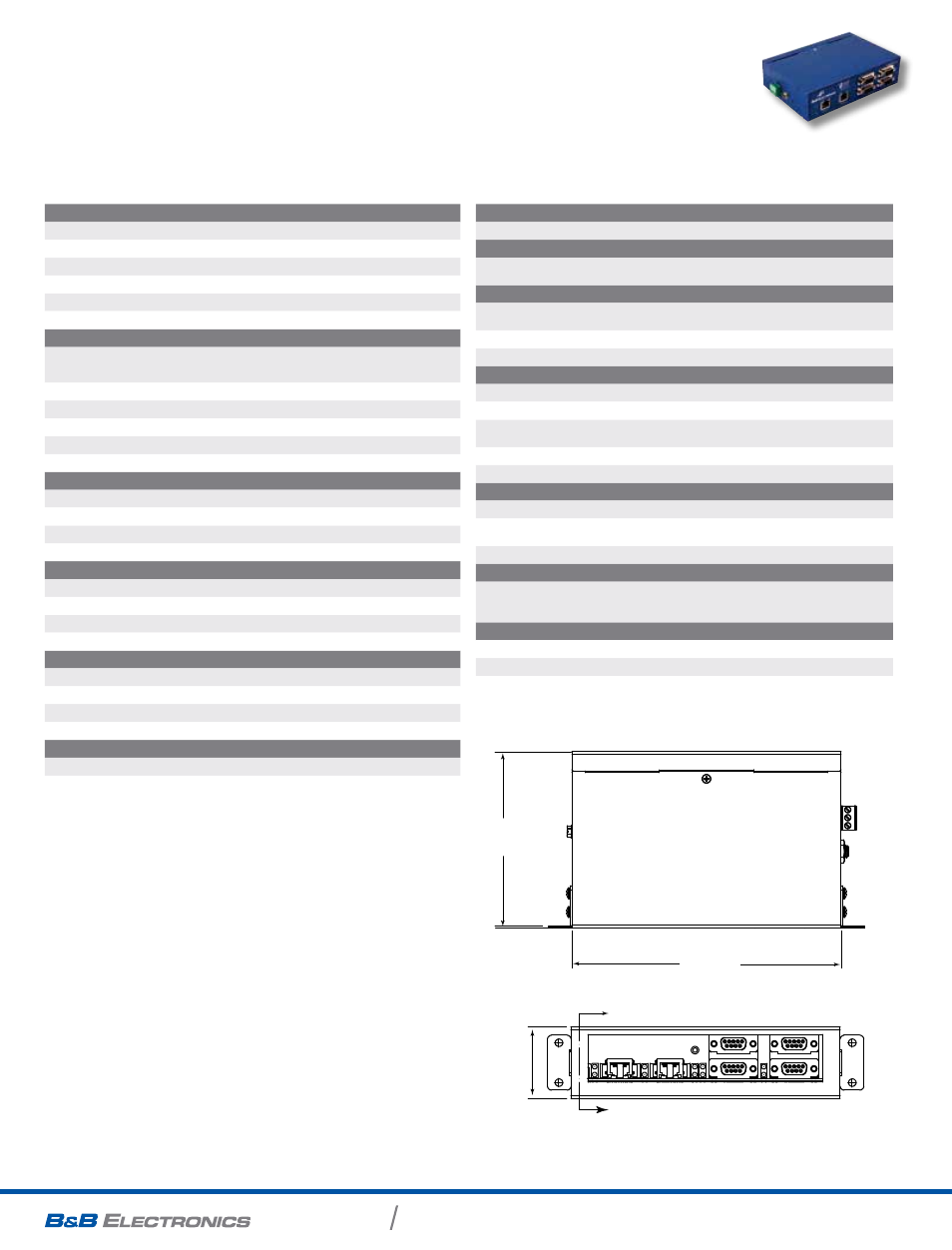

background image

four Port industrial

ethernet serial servers

VESR400 Series

Network CoMMuNiCatioNs

LAN

10/100 Mbps Auto-detecting, 10BaseT or 100BaseTX

Network PhysiCal layer staNdards

Ethernet

IEEE 802.3 auto detecting & auto MDI/MDX, 10BaseT

and 100Base TX

ProtoCols

Protocols

TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/

BOOTP

IP Mode

Static, DHCP

TCP/UDP

User definable

other

Connection Mode

Server, Client, VCOM, Paired

Client Connection

At power up or upon data arrival

Search

Serial direct COM and Ethernet Auto Search or specific

IP

Diagnostics

Display PC IP, ping, test VCOM

Firmware Upgrade

Vlinx Manager

etherNet Pass-through Port (Vesr424)

Standards

IEEE 802.3, 802.3u, 802.3x

Processing Type

Store and Forward with 802.3x full duplex, non blocking

flow control

Flow Control

IEEE 802.3x flow control, back pressure flow control

CoNFiguratioN soFtware

OS Compatibility

Windows 2000, XP (32/64 bit), 2003 Server (32/64 bit),

Vista (32/64 bit), 2008 Server (32/64 bit), Windows 7

(32/64 bit)

regulatory / CertiFiCatioNs / saFety

Compliance

FCC, Part 15 Class A, CE, NEMA TS2 (VESR424D)
Shock IEC 600068-2-27
Vibration IEC 600068-2-6

sPecificAtions

serial teChNology

RS-232 (DB9)

TD, RD, DTR, DSR, RTS, CTS, DCD plus Signal Ground

RS-232 (terminal block)

TD, RD, RTS, CTS, plus Signal Ground

RS-485 2-Wire

Data A(-), Data B(+), GND

RS-422/485 4-Wire

TDA(-), TDB(+), RDA(-), RDB(+), GND

Serial Connector

DB9M or Removable Terminal Blocks

Data Rate

Up to 230.4 Kbps

Fiber oPtiC teChNology

Vesr424x-Mx

Vesr424-sx

Type / Wavelength

Multi-mode / 1310 nm

Single-mode / 1310 nm

Output Power

(-) 19 to (-) 14 dBm

(-) 15 to (-) 8 dBm

Receive Sensitivity

< / = (-) 32 dBm

< / = (-) 32 dBm

Cable

62.5 / 125 µm

9 / 125 µm

Connector

SC or ST

SC or ST

Range

2 km (1.2 miles)

20 km (12.4 miles)

Power

Source

External

Input Voltage

10 to 48 VDC (58 VDC maximum)

Connector

Removable Terminal Block (16 – 28 AWG)

Power Consumption

6.0 Watts Max.

MeChaNiCal

LED Indicators

Serial Port, Ethernet Link, Speed

Switches

Reset Button

Dimensions

17.145 x 11.237 x 4.572 cm (6.750 x 4.424 x 1.800 in)

Enclosure

35 mm DIN Rail, Panel Mount, metal, IP30

eNViroNMeNtal

Operating Temperature

-40 to 80°C (-40 to 176°F)

Operating Humidity

10 to 95% Non-condensing

MTBF

VESR424: 70273 hours

MTBF Calc Method

Parts Count Reliability Prediction

Network

Serial Memory

8 KB per port

Network Memory

4 KB

11.237 cm

4.424 in

17.145 cm

6.750 in

A

A

4.572 cm

1.800 in

11.237 cm

4.424 in

17.145 cm

6.750 in

A

A

4.572 cm

1.800 in

mechAnicAl diAgrAm
