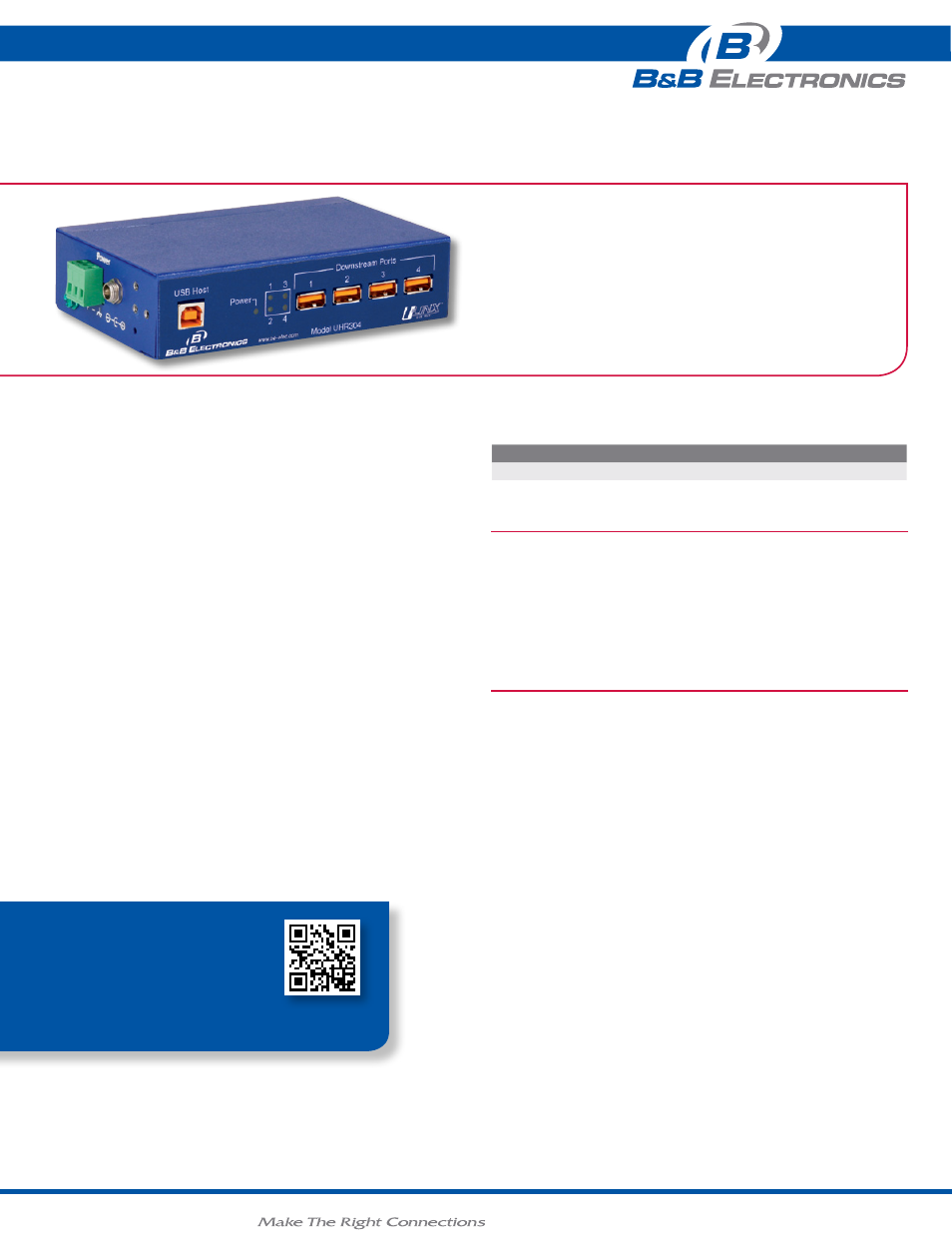

Four Port rugged usB Hubs
UHR304 & UHR204
The UHR304 and UHR204 are Industrial Grade Four Port USB Hubs. They
are designed and tested to meet heavy industrial EMC standards and
are UL listed for Class 1 Division 2 hazardous locations. High retention
USB connectors hold standard USB cables tight and are perfect for high
vibration applications - requiring up to 3.2 lbs-force to disconnect them.
Model UHR304 has 4 kV Isolation between the upstream and downstream
USB ports to protect expensive equipment from dangerous ground loops
and to help ensure data integrity.
The Heavy Industrial EMC specifications allow these hubs to operate where
standard office grade hubs fail – such as near variable frequency drives,
motor control centers, welding, and other large electrical loads.
They are powered from an external 10 to 30 VDC source. The non-isolated
UHR204 may also be powered from the USB bus. Two power connectors
are provided - terminal block or threaded / lockable barrel plug. Refer to
ordering information for power supply recommendation. Each downstream
port provides up to 500 mA of power to connected USB devices. Refer to
the specification table for additional information concerning downstream
power. Panel Mount Brackets and a DIN Rail Clip are included.
• 4 kV Isolation (Model UHR304)
• High Retention USB Connectors
• Level 4 ESD Protection – 15kV
• Rugged Metal Case – Panel & DIN Rail Mount
• Wide Operating Temperature (-40 to 80°C)
• USB 2.0 – Full Speed (12 Mbps) Model UHR304
• USB 2.0 – High Speed (480 Mbps) Model UHR204
Learn More!
WatCH a demo!
USB Hubs -
Built for Industrial Applications
www.bb-elec.com/USBHubs
*Carrier data charges may apply.
ProduCt Features
ordering inFormation
Model nuMBer uSB SPeed
UHR304 4 Port Industrial USB Hub, Isolated
UHR204 4 Port Industrial USB Hub
aCCessories
PS12VLB-INT-MED - Power Supply 12VDC, Medical Grade - US, EU, UK Blades
MDR-20-24 - DIN Rail Mount Power Supply 24VDC, 1.0A
USBAMBM-15F - Type A Male to Type B Male, 15 ft. (4.6 m)
USBAMBM-3F - Type A Male to Type B Male, 3 ft. (0.9 M) (Grey)
USBAMBM-6F - Type A Male to Type B Male, 6 ft. (1.8 m) (Grey)
UHR304 & UHR204_3713ds
