All product specifications are subject to change without notice Last updated : 20-Jan-2006
General
 Certifications CE, FM
 Connectors 1 x Plug-in screw
terminal (# 14~22 AWG)
 Power Consumption 0.5 W (typical)
0.63 W (max.)
Thermocouple Input
 Accuracy ±0.1% or better
 Bandwidth 13.1 Hz @ 50 Hz
15.72 Hz @ 60 Hz
 Channels 7 differential
 CMR @ 50/60 Hz 92 dB min
 Input Impedance 2 M Ω
 lnput Range ±15 mV, ±50 mV, ±100
mV, ±500 mV,
±1 V, ±2.5 V, ±20 mA
 lnput Type mV, V, mA,thermocouple
 Resolution 16-bit
 Sampling Rate 10 samples/sec. (total)
 Span Drift ±25 PPM/ ° C
 T/C Type and Temperature Range
J
0 ° ~ 760 ° C
K 0 ° ~ 1370 ° C
T -100 ° ~ 400 ° C
E 0 ° ~ 1000 ° C
R 500 ° ~ 1750 ° C
S 500 ° ~ 1750 ° C
B 500 ° ~ 1800 ° C
 Zero Drift ±0.3 µV/ ° C
Protection
 Fault and Overvoltage Withstands overvoltage
Protection Up to ±35 V
 Isolation Voltage 3,000 V
DC
Ordering Information
 ADAM-5018 7-channel Thermocouple
Input Module
General
 Certifications CE, FM
 Connectors 1 x Plug-in screw
terminal (# 14~22 AWG)
 Power Consumption 1.4 W (typical)
2.9 W (max.)
Analog Output
 Accuracy ±0.1% of FSR for
current output
±0.2% of FSR for
voltage output
 Channels 4
 Current Load Resistor 0 ~ 500 Ω (source)
 Output Type mA, V
 Output Range 0 ~ 20 mA, 4 ~ 20 mA,
0 ~10 V
 Programmable 0.125 ~ 128.0 mA/sec.
Output Slope 0.0625 ~ 64.0 V/sec.
 Resolution 12-bit
 Resolution ±0.015% of FSR
 Span Temperature ±25 PPM/ ° C
Coefficient

Zero Drift Voltage: ±30 µV/ ° C
Current: ±0.2 µV/ ° C
Protection
 Isolation Voltage 3,000 V
DC
Ordering Information
 ADAM-5024 4-channel Analog Output
Module

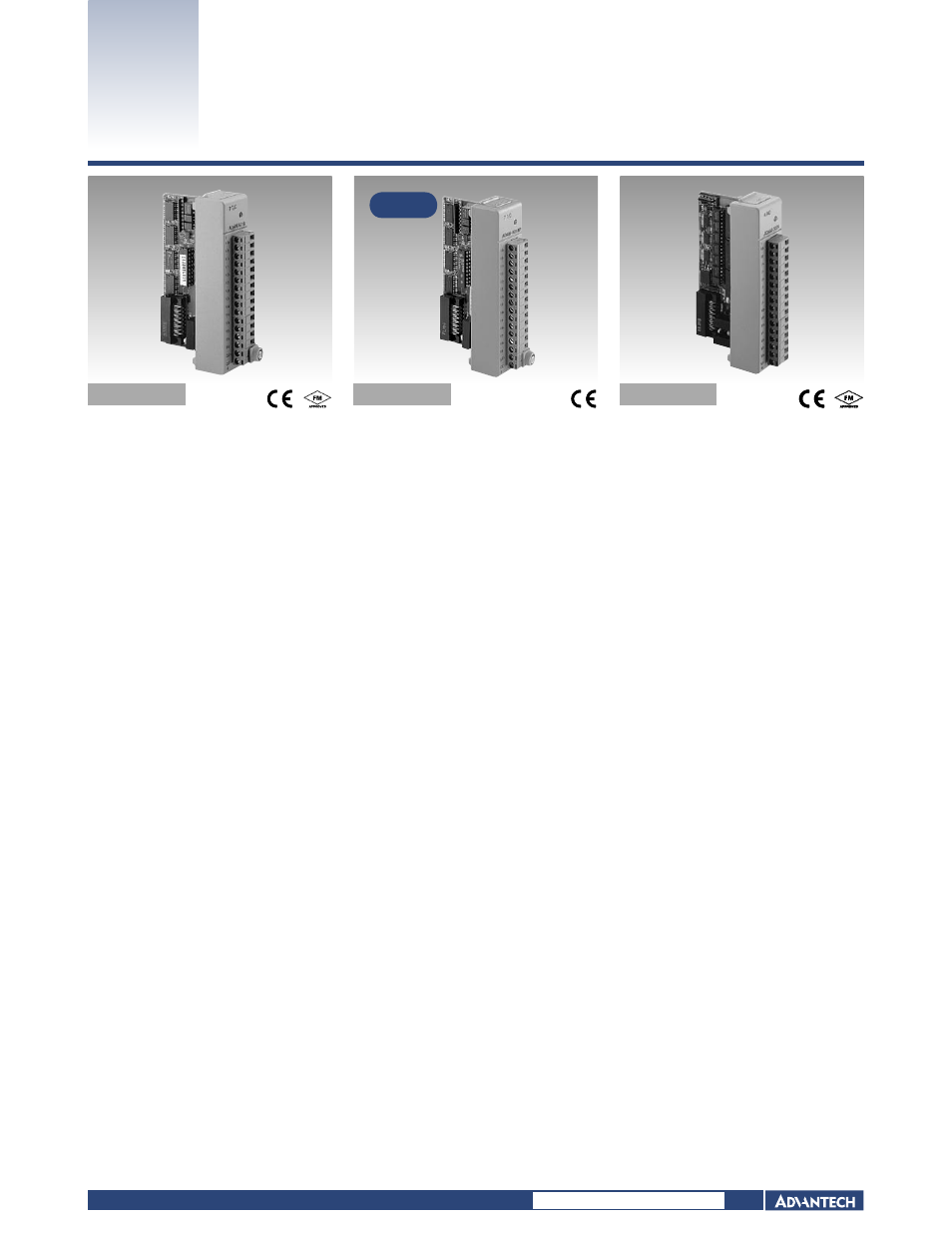

7-channel Thermocouple Input Module
7-channel Thermocouple Input Module with
Independent Input Range
4-channel Analog Output Module
ADAM-5018
ADAM-5018P
ADAM-5024
ADAM-5018P ADAM-5024
Specifications Specifications
ADAM-5018
NEW
General
 Certifications CE
 Connectors 1 x Plug-in screw
terminal (# 14~22 AWG)
 Power Consumption 0.5 W (typical)
0.63 W (max.)
Thermocouple Input
 Accuracy Bandwidth ±0.1% or better
13.1 Hz @ 50 Hz
15.72 Hz @ 60 Hz
 Channels 7 differential with
Independent Input
Range
 CMR @ 50/60 Hz 92 dB min
 Input Impedance 2 M Ω
 lnput Range and Types
Thermocouple
J 0 ~ 760° C
K 0 ~ 1370° C
T -100 ~ 400° C
E 0 ~ 1000° C
R 500 ~ 1750° C
S 500 ~ 1750° C
B 500 ~ 1800° C
 Current mode ±20 mA, 4~20mA
 Voltage ±15 mV, ±50 mV,
±100 mV, ±500 mV
±1 V, ±2.5 V
 Resolution 16-bit
 Sampling Rate 10 samples/sec. (total)
 Span Drift ±25 PPM/°C
 Zero Drift ±0.3 µV/°C
Protection
 Fault and Overvoltage Withstands over voltage
Protection Up to ±35V
 Isolation Voltage 3,000 V
DC
 Filter function Yes
 Built-in Dual Watchdog Timer
 Built-in TVS/ESD Protection
Ordering Information
 ADAM-5018P 7-channel
Thermocouple
Input Module with
Independent Input
Range
Specifications
