SpeCiFiCationS

serial teChnology

Data Rate

115.2 kbps maximum

rs-232

Connector DB25 female (DTE)
Connector DB25 male (DCE)

Signals TD, RD, RTS, CTS

Transmission Mode

Asynchronous, half or full duplex, point-to-point

Power

Source

Port-powered from RS-232 data and handshake lines

Optional External

Source

+10 to +16 VDC @ 40 mA max

External Connections 2.5mm power jacks (tip positive) or

DB25 connectors pins 11 (+) and 12 (-)

isolation

Volts/Duration

4,000 Volts RMS isolation for 1 minute

(may be limited by external supply)

MeChaniCal

Dimensions

10.4 x 5.8 x 2.4 cm (4.1 x 2.3 x 0.95 in)

Minimum Air

Clearance between

DTE & DCE Sides:

5 mm (0.197 in)

Minimum Creepage

Distance between

DTE & DCE Sides:

8 mm (0.315 in)

environMental

Operating

Temperature

0 to +70 °C

Storage Temperature -55° to 125°C
Operating Humidity

10 to 90% Non-Condensing

MTBF

351896

MTBF Calc. Method

Parts Count Reliability Prediction

aPProvals / CertiFiCations - 232sPhi4

FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class B Emissions
CE
IEC 60601-1-2:2007 Medical Electrical Equipment, Electromagnetic Compatibility
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-

Industrial Environments

EN 61000-4-2: 2009 Electro-Static Discharge (ESD)

EN 61000-4-3: 2006 +A1 +A2 +IS1 Radiated Field Immunity (RFI)

EN 61000-4-4: 2012 Electrical Fast Transients-Burst Immunity (EFT)

Download complete Declaration of Conformity at www.bb.elec.com

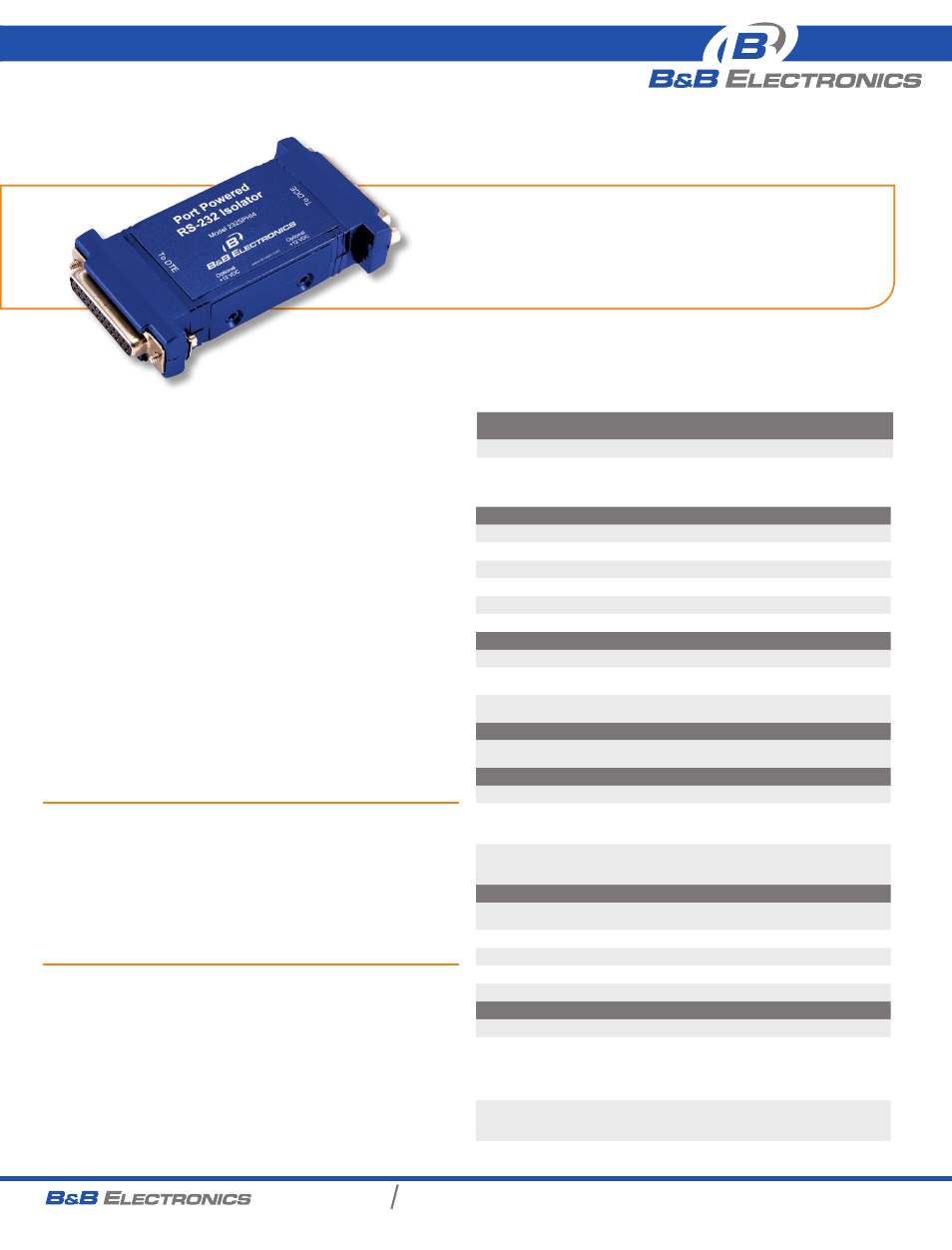

4kv rS-232 optical isolator

232SPHI4

The 232SPHI4 isolates and protects RS-232 equipment from lightning
surges, accidental high voltage shorts, and ground loops. RS-232 data
signals at up to 115.2K bps as well as the RTS and CTS handshake lines
are supported. The 232SPHI4 provides 4000 Volts of isolation between
sides, and maintains creepage and air clearances required for double or
reinforced insulation by IEC 60601-1.

Model 232SPHI4 has 4000 Volts of isolation — twice the rating of most
isolators — to protect RS-232 equipment from lightning strikes, accidental
high voltage shorts and ground loops.

DTE device connections are made through a DB-25 female. DCE device
connections are made through a DB-25 male. The two sides of the isolator
are powered independently to maintain isolation. Both sides can draw
power from the RS-232 data and handshake lines, eliminating external
powering requirements in nearly all systems.

If the isolator is to be used with low power ports or when no handshake
lines are available, external power can be supplied to either side. This
versatile powering configuration minimizes the number of supplies
required by the overall system.

• 4,000V, 2-way optical isolation
• DB25 male and DB25 female connectors
• Can be used in 60601-1 applications
• Port-powered OR use optional external power supply

proDuCt FeatureS

orDering inFormation

Model

nuMber

Channels

ProteCted

dte

ConneCtor

dCe

ConneCtor

isolation

232SPHI4

4

DB25 Female

DB25 Male

4,000 V

aCCeSSorieS

232PS2 - 12VDC@100mA wall transformer power supply, tinned stripped leads
PS1EU-1000 - 220-240 VAC to 12 VDC Power Supply, jack, Euro CEE7/7 plug
PS1UK-1000 - 220-240 VAC to 12 VDC wall power supply, jack, UK BS-1363 plug
232CAMR - DB9 Male to DB25 Female, 6 in (15.2 cm)
232CAMS - DB9 Female to DB25 Male, 6 in (15.2 cm)
