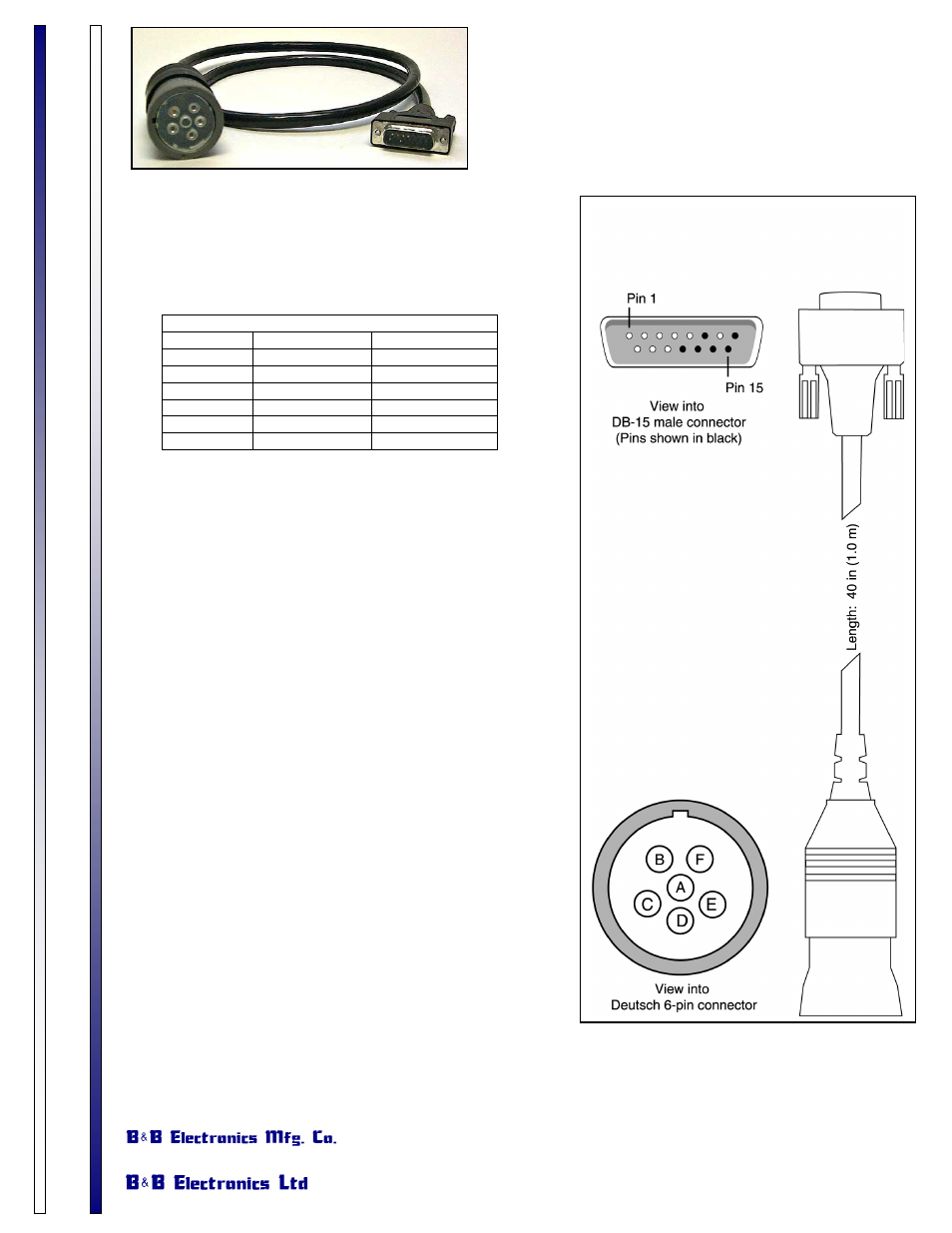

Model D6D15M

Deutsch 6-Pin to DB15 Male Cable

The D6D15M provides a quick interconnection between a
Deutsch 6-pin connector and B&B’s J1708 adapters equipped
with DB15 connectors. The overmolded cable is 40 inches (1.0 m)
and has a strain relief molded into both ends. The cable pinout is
listed in the chart below. All conductors are 20 gauge.

Interconnection Table

DB15 Male

6-Pin Deutsch

Description

6

E

GND

8

C

Battery +

12

D

13

F

14

B

J1708- (ATA-)

15

A

J1708+ (ATA+)
