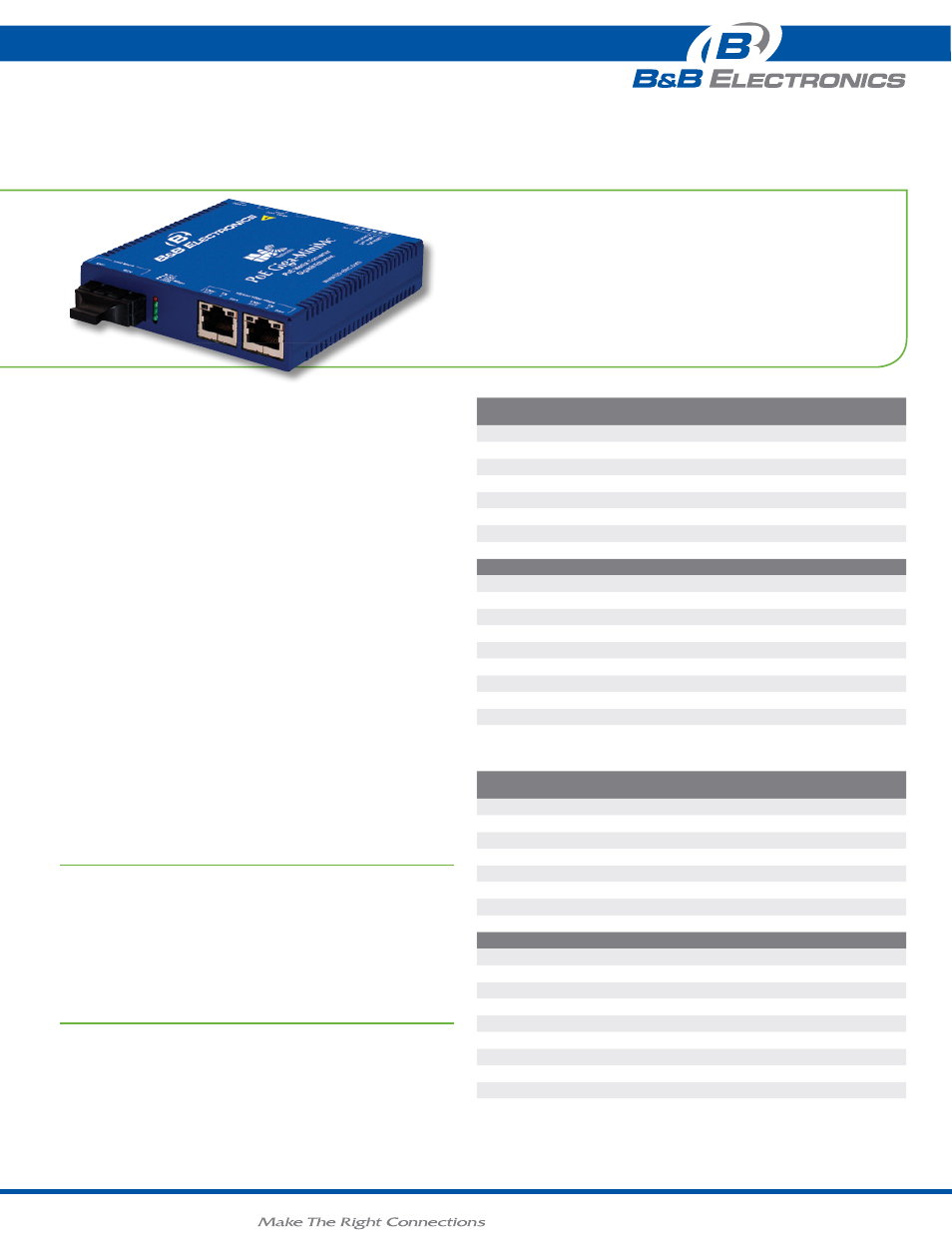

PoE Switching Media Converter
10/100/1000 Mbps
PoE & PoE+ Giga-MiniMc/LFPT
The PoE and PoE+Giga-MiniMc/LFPT are low-cost, compact, multi-port
media converters that support both PoE and PoE+ standards. Utilizing
their flexibility and compact size, interior private network applications
can further benefit from the ever-expanding versatility of the MiniMc
product line.
Featuring 2-10/100/1000Base-T copper UTP ports and one SFP uplink
port that supports either a copper or fiber SFP, the PoE and PoE+
Giga-MiniMc are Power Source Equipment (PSE) devices. The PoE+
Giga-MiniMc is capable of powering up to two Powered Devices (PD)
over standard CAT5 cable or better, whereas the PoE Giga-MiniMc/
LFPT can power one PD device via a copper port while delivering data
over the other copper port. The PoE+ Giga-MiniMc/LFPT is able to
power high-power devices such as touch panels, PTZ (pan-tilt-zoom) IP
surveillance cameras, and RFID readers that require more power than
the typical 15.4 W provided by standard PSE devices such as the PoE
Giga-MiniMc.
The PoE and PoE+ Giga-MiniMc/LFPT models are fully compatible
with the IEEE 802.3af/at standards to ensure a seamless integration
into your network. Enhanced features include store-and-forward,
Autocross, an LFPT DIP Switch, and PoE reset on fiber loss of signal.
PoE reset is an advanced function that, when enabled, will force the
PSE output power to reset when LINK state is lost on the SFP port.
• Rugged stand-alone metal enclosure with compact external power supply
• Supports Jumbo Frames (up to 10240 bytes)
• Multiple mounting options (Desktop, DIN Rail or Wall-mount)
• Features configurable PoE Reset on Fiber LOS
• Supports IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+
(25.5W) standards
• Link Fault Pass Through
PRODUCT FEATURES
ORDERing inFORMATiOn
Model
NuMber
Fiber
Fiber
Ports raNge
etherNet
Ports
etherNet
CoNNeCtor
Poe giga-MiniMc /lFPt
857-11811 SFP *
1 Various 2 RJ45
857-11812 MM850-SC 1 220/550 m 2 RJ45
857-11813 MM1300-SC 1 2 km 2 RJ45
857-11814 SM1310-SC 1 15 km 2 RJ45
857-11815 SM1310/PLUS-SC 1 40 km 2 RJ45
857-11816 SM1550/LONG-SC 1 80 km 2 RJ45
857-11817 SM1550/XLONG-SC 1 100 km 2 RJ45
siNgle straNd Fiber sslX or ssbX **
857-11820 SM1310-SC 1 15 km 2 RJ45
857-11821 SM1550-SC 1 15 km 2 RJ45
857-11822 SM1310-SC 1 10 km 2 RJ45
857-11823 SM1490-SC 1 10 km 2 RJ45
857-11824 SM1310/PLUS-SC 1 40 km 2 RJ45
857-11825 SM1550/PLUS-SC 1 40 km 2 RJ45
857-11826 SM1310/PLUS-SC 1 30 km 2 RJ45
857-11827 SM1490/PLUS-SC 1 30 km 2 RJ45
857-11828 SM1490/LONG-SC 1 70 km 2 RJ45
857-11829 SM1550/LONG-SC 1 70 km 2 RJ45
PoE and PoE+ Giga-MiniMc/LFPT also available in CWDM
** These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
Model
NuMber
Fiber
Fiber
Ports raNge
etherNet
Ports
etherNet
CoNNeCtor
Poe+ giga-MiniMc/lFPt
857-11911 SFP
1 Various 2 RJ45
857-11912 MM850-SC 1 220/550 m 2 RJ45
857-11913 MM1300-SC 1 2 km 2 RJ45
857-11914 SM1310-SC 1 15 km 2 RJ45
857-11915 SM1310/PLUS-SC 1 40 km 2 RJ45
857-11916 SM1550/LONG-SC 1 80 km 2 RJ45
857-11917 SM1550/XLONG-SC 1 100 km 2 RJ45
siNgle straNd Fiber sslX or ssbX **
857-11920 SM1310-SC 1 15 km 2 RJ45
857-11921 SM1550-SC 1 15 km 2 RJ45
857-11922 SM1310-SC 1 10 km 2 RJ45
857-11923 SM1490-SC 1 10 km 2 RJ45
857-11924 SM1310/PLUS-SC 1 40 km 2 RJ45
857-11925 SM1550/PLUS-SC 1 40 km 2 RJ45
857-11926 SM1310/PLUS-SC 1 30 km 2 RJ45
857-11927 SM1490/PLUS-SC 1 30 km 2 RJ45
857-11928 SM1490/LONG-SC 1 70 km 2 RJ45
857-11929 SM1550/LONG-SC 1 70 km 2 RJ45
* SFP Fiber sold separately
ACCESSORiES
806-39105 - DIN Rail Clip
806-39800 - PoE Power Adapter for PoE Giga-MiniMc
895-39229 - Wall Mount Bracket
806-39900 - PoE+ Power Adapter for PoE+ Giga-MiniMc
806-39910 - PoE+ Isolated Power Adapter
