Industrial grade 10/100/1000
miniature media converters
IE-Giga-MiniMc (with LFPT Switch)
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
MTU: Supports Jumbo Frames up to 10240 bytes
Extended temperature range (DC configuration)
Plug-and-play operation
RJ45, SC and SFP connectors
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber Single-strand fiber and CWDM models
4-terminal DC power with a pair of input terminals and a pair of output terminals
for cascading power on DIN installations
Country-specific, high-reliability power adapter
Auto Negotiation, Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for
10 Mbps, 148,810 pps for 100 Mbps, 1,488,096 pps for 1000 Mbps)
Status LEDs
Supports DIN Rail mounting
Mechanical
Dimensions
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
Shipping Weight
0.7 lbs (.317 kg)
Power
AC Adapter
100 to 240 ±10% VAC input, 5 VDC @ 2.0 A
max
DC Input Voltage
7 to 50 VDC @ 2.5 watts,
Chassis grounded to negative terminal
environMental
Operating Temperature:
DC terminal block
-13°F to +185°F (-25°C to +85°C)
Operating Temperature:
AC Adapter
+14°F to +122°F (-10°C to +50°C)
Storage Temperature:
-31° F to +167° F (-35° C to +75° C);
Operating Humidity
5% to 95% (non-condensing)
regulatory aPProvals
FCC Class B
UL/cUL, CSA, CE
(31,75)
1.25
(1.0)
.04
(26,4)
1.04

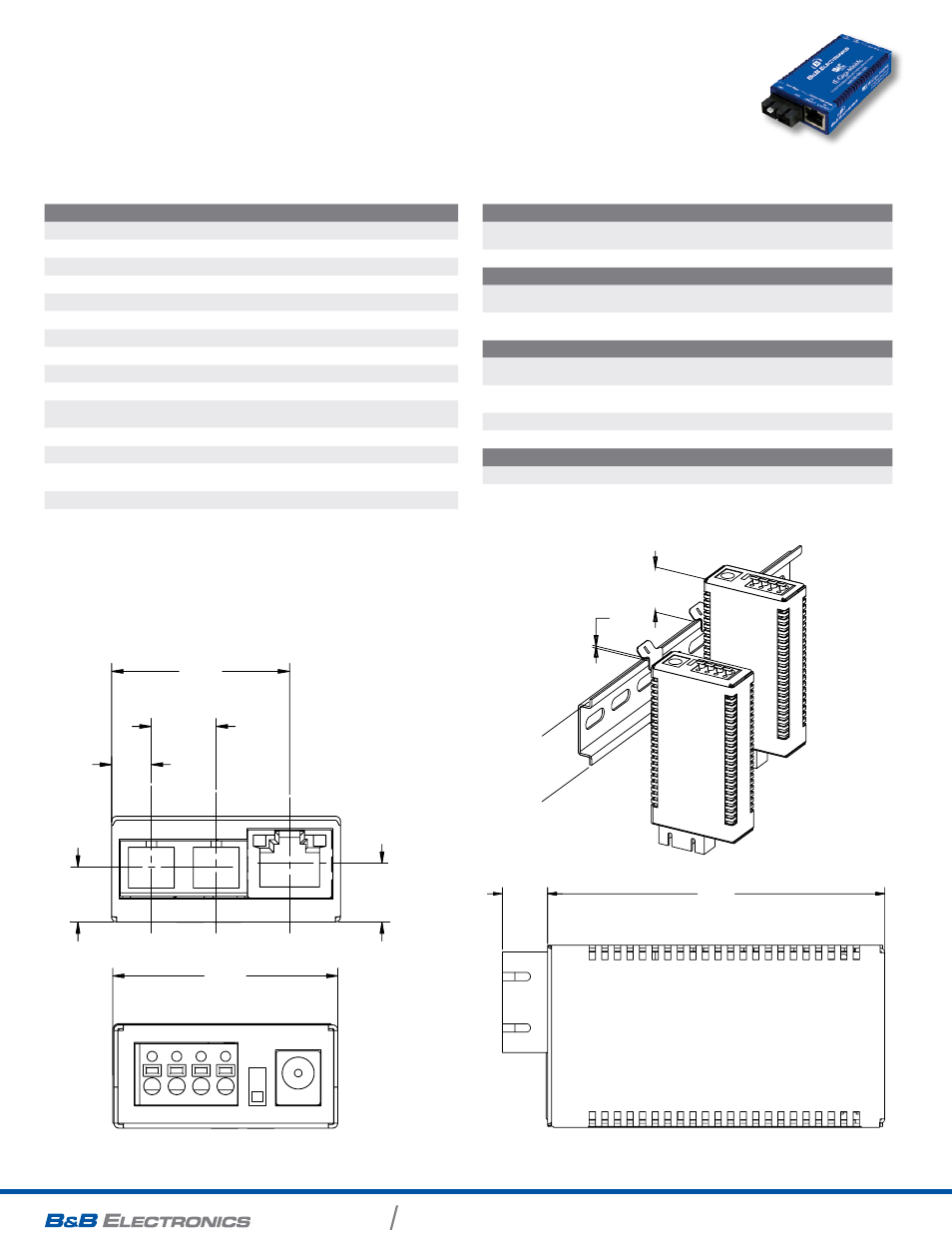

mEchanIcal dIagram
(dimensions in inches & millimeters)
(85,1)
3.35
(11,4)
.45
(7,9)
.31
(12,9)
REF
.51
(35,6)
1.40
(11,0)
.43
(11,7)
.46
(46,0)
1.81
