POWER SUPPLY REQUIREMENTS
NEW AND EXISTING INSTALLATIONS
The VFG9000-DN option card draws all of its power from the main board of
the Fieldbus Gateway. The specifications of the Fieldbus Gateway account for
the power needs of an option card.
COMMUNICATING WITH THE VFG9000-DN OPTION
CARD
CONFIGURING A VFG9000-DN OPTION CARD
The VFG9000-DN is configured using Fieldbus Gateway Manager software.
Updates to the software for new features and drivers are posted on the website
as they become available. By configuring the VFG9000-DN using the latest
version of the software, you are assured that your unit has the most up-to-date
feature set. Fieldbus Gateway Manager software can configure the VFG9000-
DN through the RS232 PGM port, USB port, Ethernet port, or CompactFlash
socket on your Fieldbus Gateway. Additional information can be found in your
Fieldbus Gateway hardware bulletin and the Fieldbus Gateway Manager user
manual.
DeviceNet PORT PROTOCOLS
The VFG9000-DN option card has one DeviceNet port. This port may be
configured for various DeviceNet protocols. Check www.bb-elec.com for
currently supported protocols.

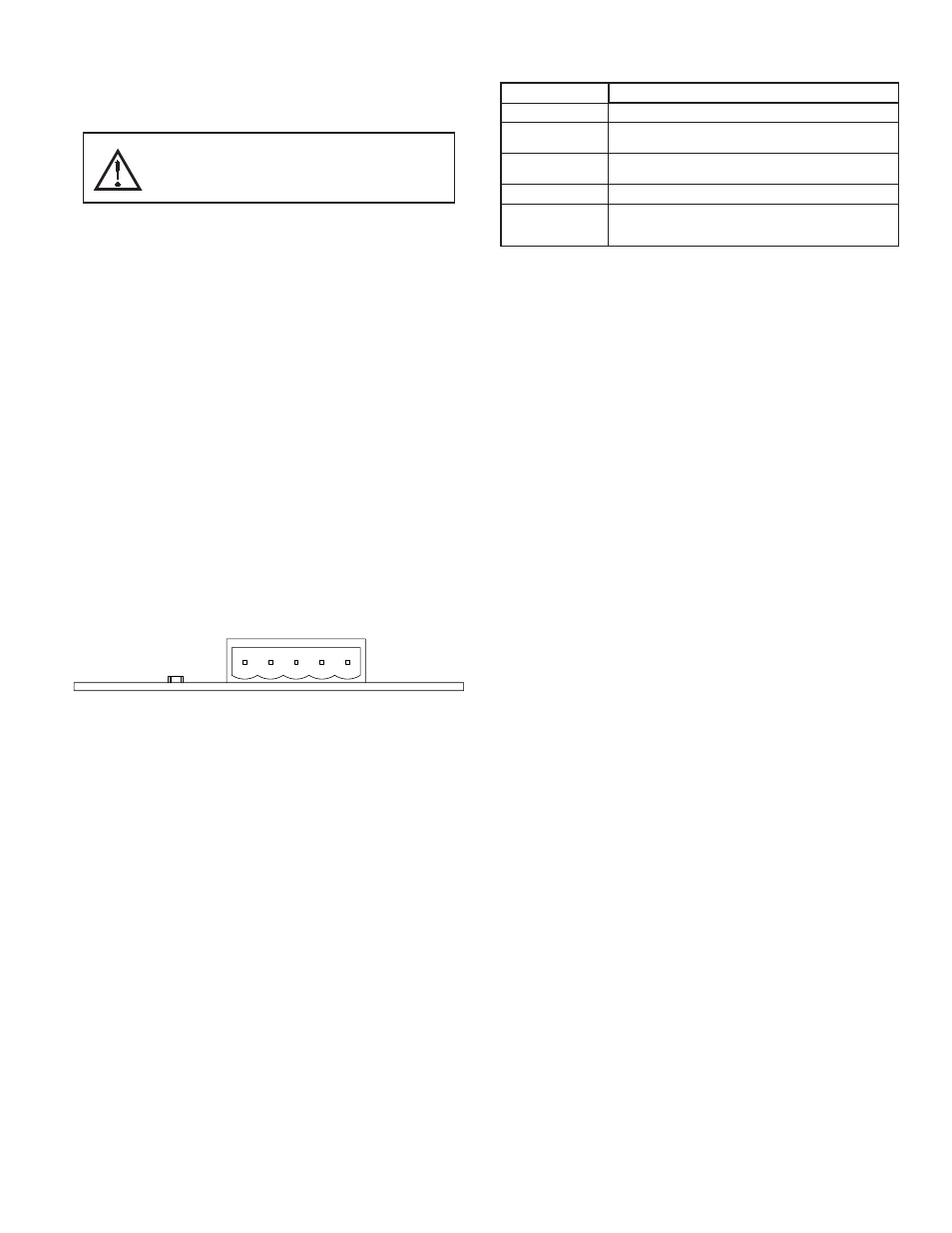

VFG9000-DN PORT PIN OUTS
Must use only NEC Class 2 or Limited Power Source (LPS) rated power
supply.
V-
Position 1 of the pluggable connector provides a CAN ground connection.
This terminal is isolated from the Fieldbus Gateway.
CAN_L
Position 2 of the pluggable connector provides the CAN_L bus line (active
low). This terminal is isolated from the Fieldbus Gateway.
DRAIN (OPTIONAL)
Position 3 of the pluggable connector is provided for optional drain
connections. This position is available only to tie drain wires together or to earth
ground. There is no internal connection to earth ground. The DRAIN position is
not connected to any circuitry internal to the VFG9000-DN option card or
Fieldbus Gateway.
CAN_H
Position 4 of the pluggable connector provides the CAN_H bus line (active
high). This terminal is isolated from the Fieldbus Gateway.
V+ (OPTIONAL 24 VDC)
Position 5 of the pluggable connector is provided for optional 24 VDC
connections. This position is available only to tie 24 VDC wires together. The
VFG9000-DN card neither provides 24 VDC power nor uses 24 VDC power
through this connection. The V+ position is not connected to any circuitry
internal to the VFG9000-DN option card or Fieldbus Gateway.
SOFTWARE/UNIT OPERATIONS
LED
TROUBLESHOOTING YOUR VFG9000-DN OPTION
CARD
If for any reason you have trouble operating, connecting, or simply have
questions concerning your new VFG9000-DN option card, contact B&B
Electronics’ technical support. For contact information, refer to the back page of
this bulletin for phone and fax numbers.
Web Site: http://www.bb-elec.com
3
LED STATE VFG9000-DN CARD INDICATION
OFF Initializing
FLASHING GREEN
GREEN
FLASHING RED One or more established communications have timed out
RED
The device is online and is waiting on communications
from other devices
The device is online and has established
communications with another device
The device has detected an error that has rendered it
incapable of communicating on the network (duplicate
MAC ID or bus activity).
LE
D
DRAIN V+ V- CAN_
L
CAN_
H
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
WHILE CIRCUIT IS ALIVE UNLESS AREA IS KNOW TO BE
NON-HAZARDOUS.
