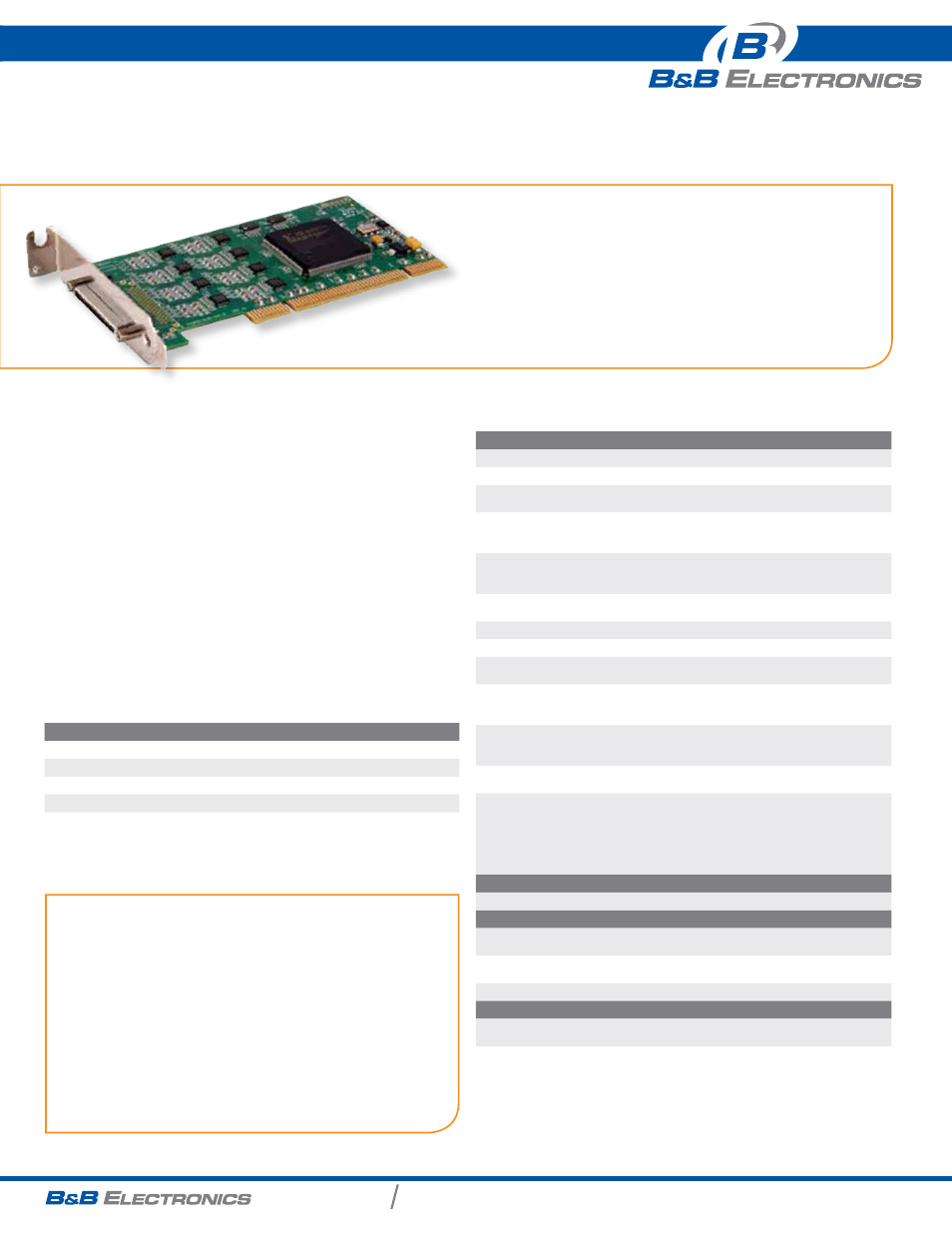

Low Profile Universal PCI Serial Cards
DSCLP-100, ESCLP-100, QSCLP-100, SSCLP-200/300
These Low Profile Universal PCI Serial Cards utilise a single PCI slot to
provide two independent asynchronous serial ports sharing a single
interrupt. Multi-port versions require only one slot to connect. The cards
include a fan out cable with independent DB-9 male connectors. All PCI
registers are properly implemented, so you can be assured that these
boards will be good citizens on the PCI bus. These models use a universal
PCI connector compatible with both the 3.3V connector key required by PCI
2.3 and later specifications and the 5V connection used by older systems.
Full modem control and hardware and software flow control
Serial port connections are made via DB-9 male connectors with 16550
UARTs containing 16-byte FIFOs. To maintain maximum signal integrity,
the four-layer board design ensures maximum protection versus noise
propagation throughout the communication lines.
• 1, 2, 4 or 8 independent RS-232 ports
• RS-232 speeds up to 921.6 kbps (100 series)
• RS-422 or 485 configurable, full or half duplex (excludes ESCLP-100)
• RS-422/485 speeds up to 460.8 kbps (200/300 series)
• Auto enable/disable of RS-422/485 transmitter
• 16550 UARTs with 16-byte FIFOs (1, 2, 4 port boards)
• 16750 UARTs with 64-byte FIFOs (8 port boards)
PRODUCT FEATURES
SPECIFICATIOnS
Serial technology
Bus Interface 32-bit, 33 MHz PCI Bus specification 2.3 compliant
O/S Support Windows 95/98/Me/2000/XP/Vista/7, Linux, DOS
Data Rate
Up to 460.8 kbps (200/300 series)
Up to 921.6 kbps (100 series)
RS-232
Connectors/Ports
DSCLP: DB-25 male to cable with 2 DB-9 male
QSCLP: HD-44 female to cable with 4 DB-9 male
ESCLP: VHDCI-68 male to cable with 8 DB-9 male
RS-422/485
Connectors/Ports
DSCLP: DB-25 female to cable with 2 DB-9 female
QSCLP: HD-44 female to cable with 4 DB-9 female
Each RS-422 or RS-485 configurable, full or half duplex
RS-232 UARTs
D/ QSCLP: 16550 UARTs; 16-byte FIFOs (1 per port)
ESCLP: 16750 UARTs; 64-byte FIFOs (1 per port)
RS-422/485 UARTs SSCLP-200/300: 16550 UARTs; 64-byte FIFOs (1 per port)
RS-232 Transceiver ICL3245CA or compatible
RS-422/485
Transceiver
MAX3076E or compatible
RS-232 Drivers
High Level Output: +5V (min), +5.4V (typical)
Low Level Output: -5V (min), -5.4V (typical)
Transition Time (THL-TLH): 25ns (typical)
RS-422/485 Drivers
Differential Voltage: ±3.3V
Transition Time (TLH): 52ns (typical)
Transition Time (THL): 60ns (typical)
RS-232 Receive
Buffers
Voltage Range: -25V (max), -25V(minimum)
Transition Time (THL-TLH): 50ns (typical)
RS-422/485 Receive
Buffers
Differential Input Threshold: ±0.2V
Voltage Range: -7V to +12V Common Mode Input
Transition Time (THL-TLH): 65ns (typical)
Dimensions
MD1 board, fits 2U racks: 6.36 x 11.99 cm (2.5 x 4.72 in)
Low profile PCI bracket: 7.92H cm (3.12 in)
(Standard PCI bracket also included)
Power
Requirements +5V, 260mA (typical)
environmental
Operating
Temperature
0 to +70 °C
Storage
Temperature
-50 to +80 °C
Operating Humidity 10 to 80%
aPProvalS / certificationS
Certifications
CE, FCC Class B
RoHS and WEEE compliant
ORDERIng InFORmATIOn
model number deScriPtion
SSCLP-200/300 1 Port, RS-422/485, DB9, Low Profile, Universal PCI
DSCLP-100 2 Port, RS-232, DB9, Low Profile, Universal PCI
QSCLP-100 4 Port, RS-232, DB9, Low Profile, Universal PCI
ESCLP-100 8 Port, RS-232, DB9, Low Profile, Universal PCI
about low Profile universal cards
Low Profile Universal PCI cards add serial connectivity to a variety of desktop,
thin client, embedded systems, and server environments. These boards
provide true universal connectivity, enabling a single product to be used to
implement systems with dramatically different resource requirements. This
makes Quatech boards the most robust, flexible, and economical choice for
any application requiring multiple serial ports. These cards are mechanically
similar to standard PCI cards, but use a shorter board and a different
mounting bracket. With greater flexibility, they are designed on the smallest
MD1 low profile footprint, but come with both a full size ORB for standard
systems, and a smaller ORB for use in low profile backplanes to fit even 2U
racks without riser cards. A wide range of OS options facilitates system
upgrades and multiplatform installations.
xSCLP-100-xx_4713ds
