uL rated Current Loop Converter
232CLDR
SpeCiFiCationS
serial teChnology
Data Rate 19.2 kbps maximum
rs-232
Connector Terminal block
Signals TD, RD, GND
Current Loop
Connector Terminal block
Signals T+, T-, R+, R-, GND
isolation
Method Optical
Rating 2,000 V
Power
Connector Terminal block
Input Voltage 10-30 VDC
Power Consumption 2.5 W
Source External
terMinal bloCks
Wire Size 24 to 14 AWG
Torque 4 kfg-cm
led indiCators
Data LEDs RS-232 & Current Loop flash red when data is transmitted
enClosure
Material Plastic
IP Rating 20
Dimensions 2.5 x 7.9 x 9.5 cm (1.0 x 3.1 x 3.7 in)
Mounting 35 mm DIN (panel mount adapter option)
MTBF 401834
MTBF Calc. Method Parts Count Reliability Prediction
environMental
Operating Temperature -40 to +80°C (-40 to +176 °F)
Storage Temperature -40 to +85°C (-40 to +185 °F)
Operating Humidity 0 to 95% non-condensing
aPProvals / CertiFiCations - 232Cldr
FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions
CE
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-
Industrial Environments
EN 61000-4-2: 2009 Electro-Static Discharge (ESD)
EN 61000-4-3: 2006 +A1 +A2 +IS1 Radiated Field Immunity (RFI)
EN 61000-4-4: 2012 Electrical Fast Transients-Burst Immunity (EFT)
EN 61000-4-6: 2009 Conducted Immunity
Download complete Declaration of Conformity at www.bb.elec.com

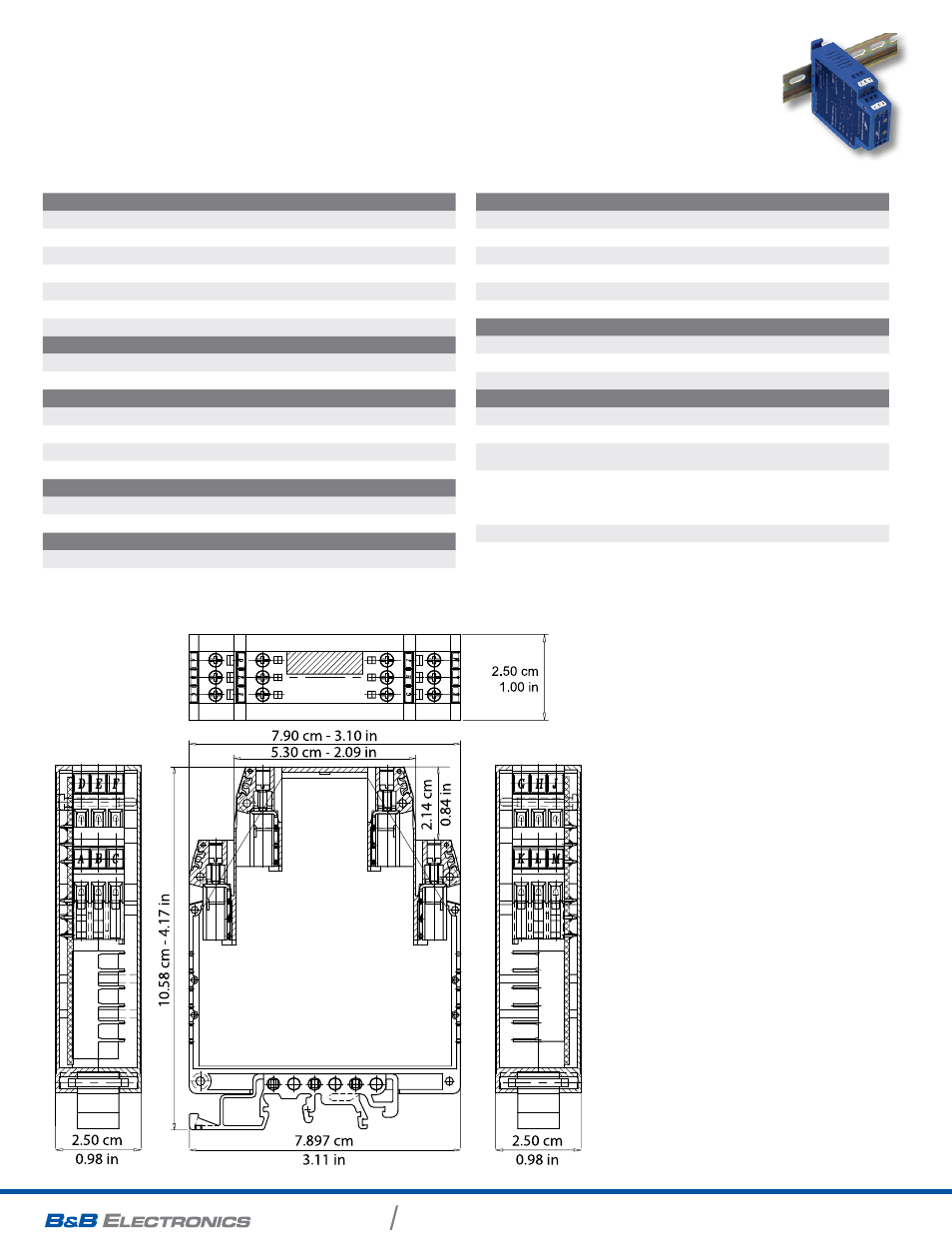

Dimensional Diagram of 232CLDR
meChaniCaL Diagram
pn#6577
