10/100/1000base-tx to gigabit
sFp hardened media converter
EIR-G-SFP-T
Power
Input Voltage Dual 12 to 48VDC (Terminal Block); 12VDC (DC Jack)
Power Consumption
10.56W, 0.88A @ 12VDC, 0.44A @ 24VDC, 0.22A @
48VDC
Overload Current
Protection
Present
Reverse Polarity
Protection
Present
regulatory aPProvals
Safety EN60950-1, IEC60950-1
EMI
FCC Part 15, Class A
VCCI, Class A
EN61000-6-3: EN55022, EN61000-3-2, EN61000-3-3
EMS
EN61000-6-2
EN61000-4-2 (ESD Standards) Contact: + / - 4KV;
Criteria B Air: + / - 8KV; Criteria B
EN61000-4-3 (Radiated RFI Standards) 10V/m, 80 to
1000MHz; 80% AM Criteria A
EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV;
Criteria B D.C. Power Ports: + / - 4KV; Criteria B
EN61000-4-5 (Surge Standards) Signal Ports: + / - 1KV;
Line-to-Line; Criteria B D.C. Power Ports: + / - 0.5KV;
Line-to-earth; Criteria B
EN61000-4-6 (Induced RFI Standards) Signal Ports:
10Vrms @ 0.15~80MHz; 80% AM Criteria A D.C. Power
Ports: 10Vrms @ 0.15~80MHz; 80% AM Criteria A
EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50,
60Hz; Criteria A
Environmental Test
Compliance
IEC60068-2-6 Fc (Vibration Resistance) 5g @
10~150KHz, Amplitude 0.35mm (Operation/Storage/
Transport)
IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine
Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock
Pulse; Storage/Transport)
IEC60068-2-32 Ed (Free Fall) 1M (3.281ft.)
NEMA
NEMA TS1/2 Environmental requirements for Traffic
control equipment
spEcIFIcatIons
ethernet teChnology
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/1000Base-LX
IEEE802.3x
Forward & Filtering Rate 1,488,100pps for 1000Mbps
interFaCe
Ethernet Ports
1 - 10/100/1000Base-TX
1 - Gigabit SFP
LED Indicators
Per Unit: Power Status (Power1, Power2, Power3, Fault),
LFPT
Per Port: 10/100/1000TX: Link/Activity, Speed, Full-
duplex/Collision Gigabit SFP: Link/Activity
Alarm Contact
One relay output with current 1A @ 30VDC,
0.5A@120VAC
MeChaniCal
Enclosure Aluminum case, IP30
Dimensions
5.00 cm x 11.0 cm x 14.10 cm
(1.97 x 4.33 x 5.55 inches)
Weight 0.8Kg (1.76lbs.)
Installation DIN-Rail (Top hat type 35mm), Rack Mounting (Optional)
Operating Temperature
-40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Ambient Relative
Humidity
5% to 95% (non-condensing)
MTBF 348,518 Hours
MTBF Calc. Method Parts Count Reliability Prediction
14.10 cm
5.55 in
5.00 cm
1.97 in
11.0 cm
4.33 in
14.10 cm
5.55 in
5.00 cm
1.97 in
11.0 cm
4.33 in
14.10 cm
5.55 in
5.00 cm
1.97 in
11.0 cm
4.33 in

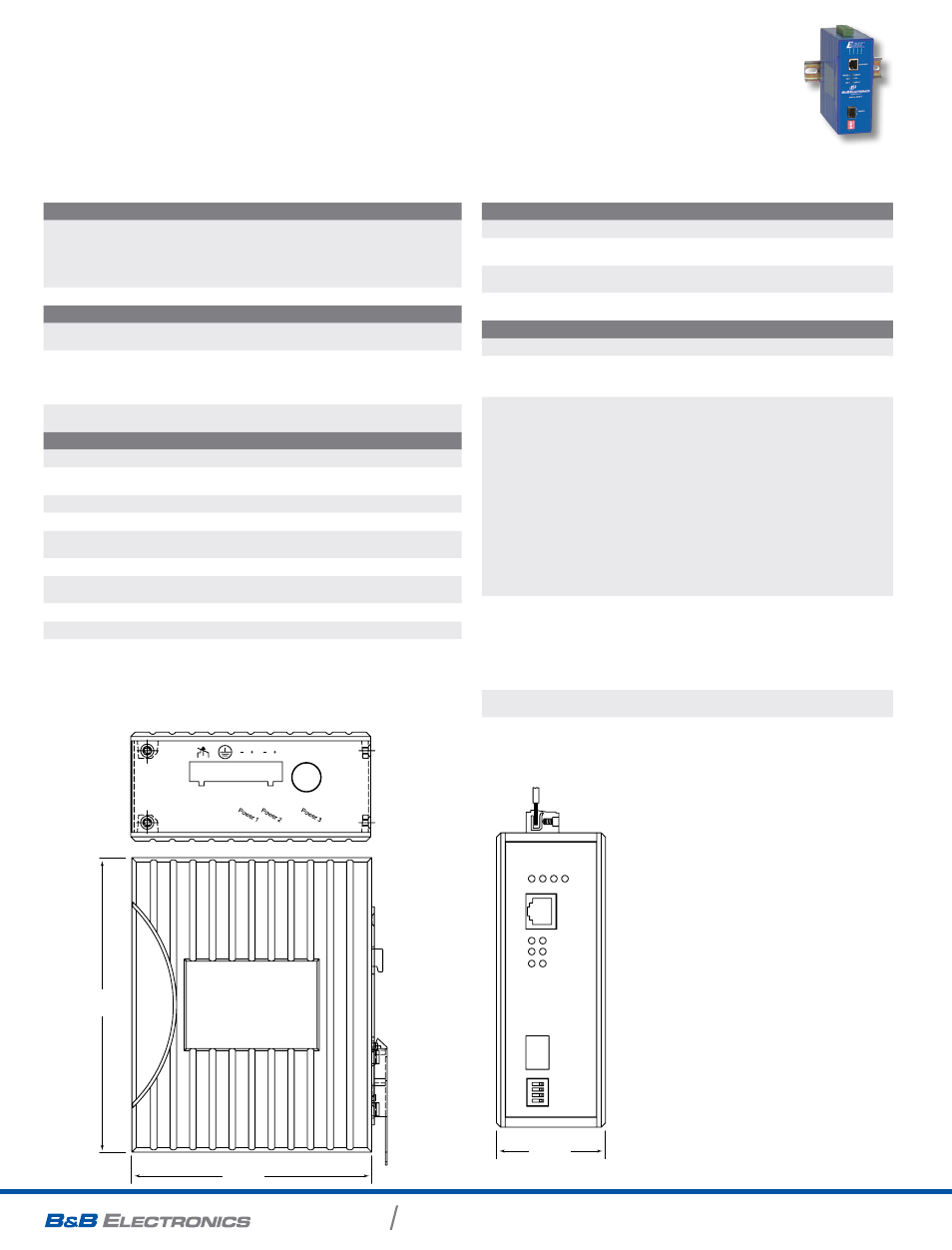

mEchanIcal dIagram
(dimensions in inches & millimeters)
