International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104

European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

www.bb-elec.com

[email protected]

[email protected]

SpeCiFiCationS

serial teChnology

Connectors

Terminal blocks

RS-422/485: (4) wire leads

surge suPPression

Surge Suppressors 7.5 Volts, bi-directional avalanche breakdown device
Clamping Voltage < 1 x 10 -12 seconds, theoretical
Fuses

125 mA fast-acting type

Peak Power

500 Watts dissipation

Series Resistance 7.2 Ohms, maximum
Capacitance

6,000 picofarads, maximum

Installation

In-line

Weight

0.05 lbs (22.7 g)

environMental

Operating

Temperature

0 to +70 °C (+32 to +185 °F)

Storage

Temperature

-40 to +85 °C (-40 to +185 °F)

Operating

Humidity

0 to 95% Non-Condensing

aPProvals / CertiFiCations - 485FPP

FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions
CE
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-

Industrial Environments

Download complete Declaration of Conformity at www.bb.elec.com

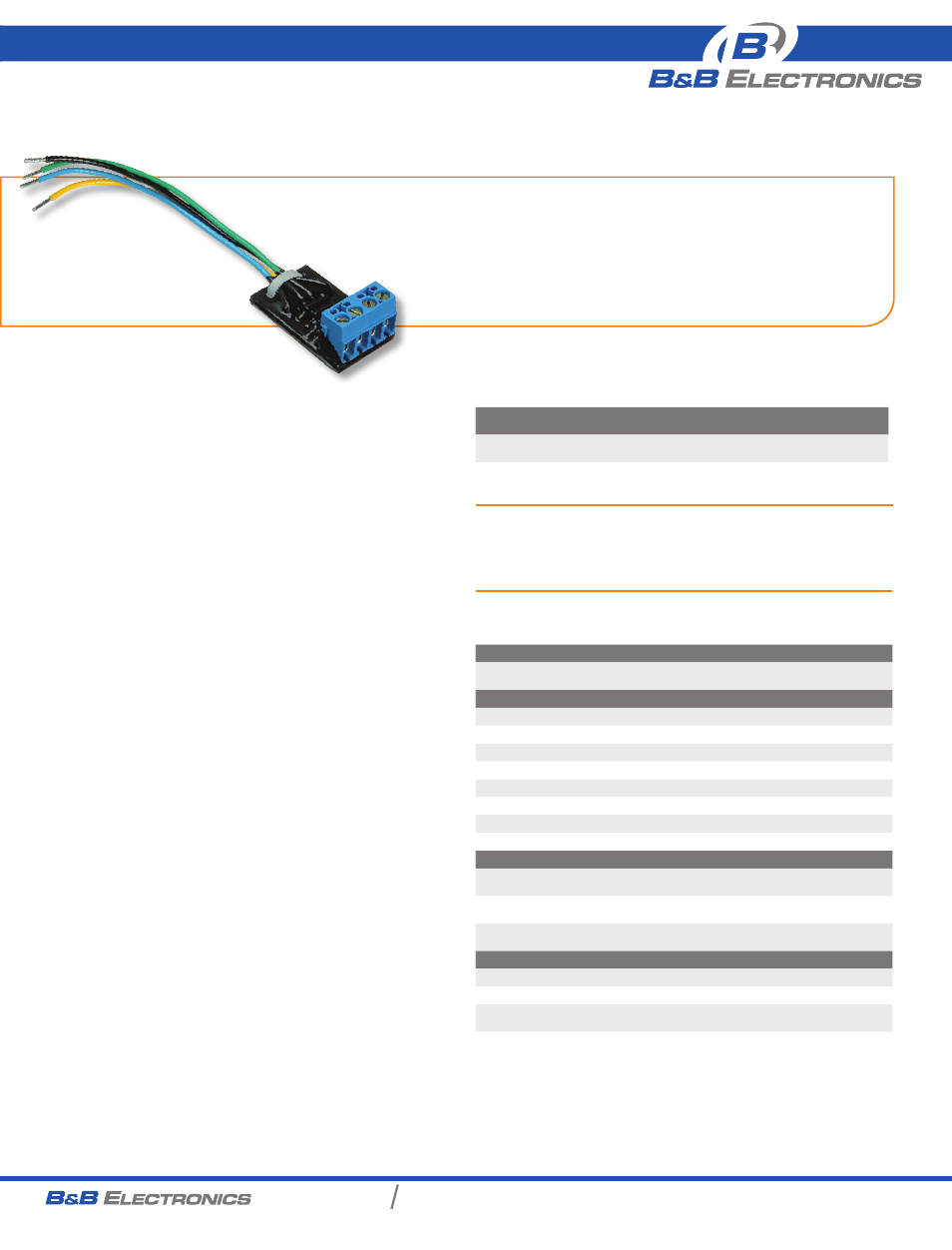

Fused rS-422/485 Surge protector

485FPP

Single stage surge protectors offer a high degree of protection with
Transient Voltage Suppressors (TVS) for each protected line.

Model 485FPP has 600W Transient Voltage Suppressors to clamp voltages
without adversely affecting normal RS-422/485 data. Fast-acting 125 mA
PCB fuses to protect RS-422 and RS-485 circuits against transient voltages
that are too long or too large for normal suppression.

The 485FPP has 4 wires and terminal blocks for easy installation inline
between the data cables – as close as possible to the serial port. Once a
fuse is blown, the unit should be disposed and replaced.

• Protects RS-422 or RS-485 ports
• 600W serial circuit surge suppression
• 125 mA fast-acting PCB fuses
• Simple in-line installation
• One time use, disposable unit

proDuCt FeatureS

aCCeSSorieS

485HESP - RS-485 Surge Protector
485OP - RS-485 Optical Isolator

orDering inFormation

Model

nuMber

ProteCtion

ConneCtors

lines ProteCted

485FPP

RS-422/485

(disposable, fused)

Terminal Blocks

(4) wire leads

(4) RS-422/485 data lines

485FPP_3713ds
