Industrial grade 10/100 miniature
media converters
IE-MiniMc
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX fiber
IEEE 802.3af Power Over Ethernet
Supports jumbo packets up to 1916 bytes
Plug-and-play operation
RJ45 and ST or SC ports available
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available with single-strand fiber support
Includes terminal DC power block
Country-specific, high-reliability power adapter
Auto Negotiation
Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10
Mbps, 148,100 pps for 100 Mbps)
Status LEDs
Mechanical
Dimensions
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
Shipping Weight
0.7 lbs (.317 kg)
input specifications
DC Terminal: 7 - 50 VDC, 1A - 0.1A
Barrel Connector: 5 VDC
PoE: Maximum supply voltage is 50V
environMental
Operating Temperature: DC or
PoE (PD)
-13° F to 185° F (-25° C to +85° C)
Operating Temperature: AC wall
adapter
+14° F to +122° F (-10° C to +50° C)
Storage Temperature:
-31° F to +167° F (-35° C to +75° C)
Operating Humidity
5% to 95% (non-condensing)
regulatory approvals
FCC Class A (using DC terminal or PoE power)
FCC Class B (using any DC jack, optional)
UL/cUL, CSA, CE
NEMA TS2 (select models)
(85,1)
3.35
(11,4)
.45
(7,9)
.31
(12,9)
REF
.51
(35,6)
1.40
(11,0)
.43
(11,7)
.46
(31,75)
1.25
(1.0)
.04
(26,4)
1.04
(46,0)
1.81

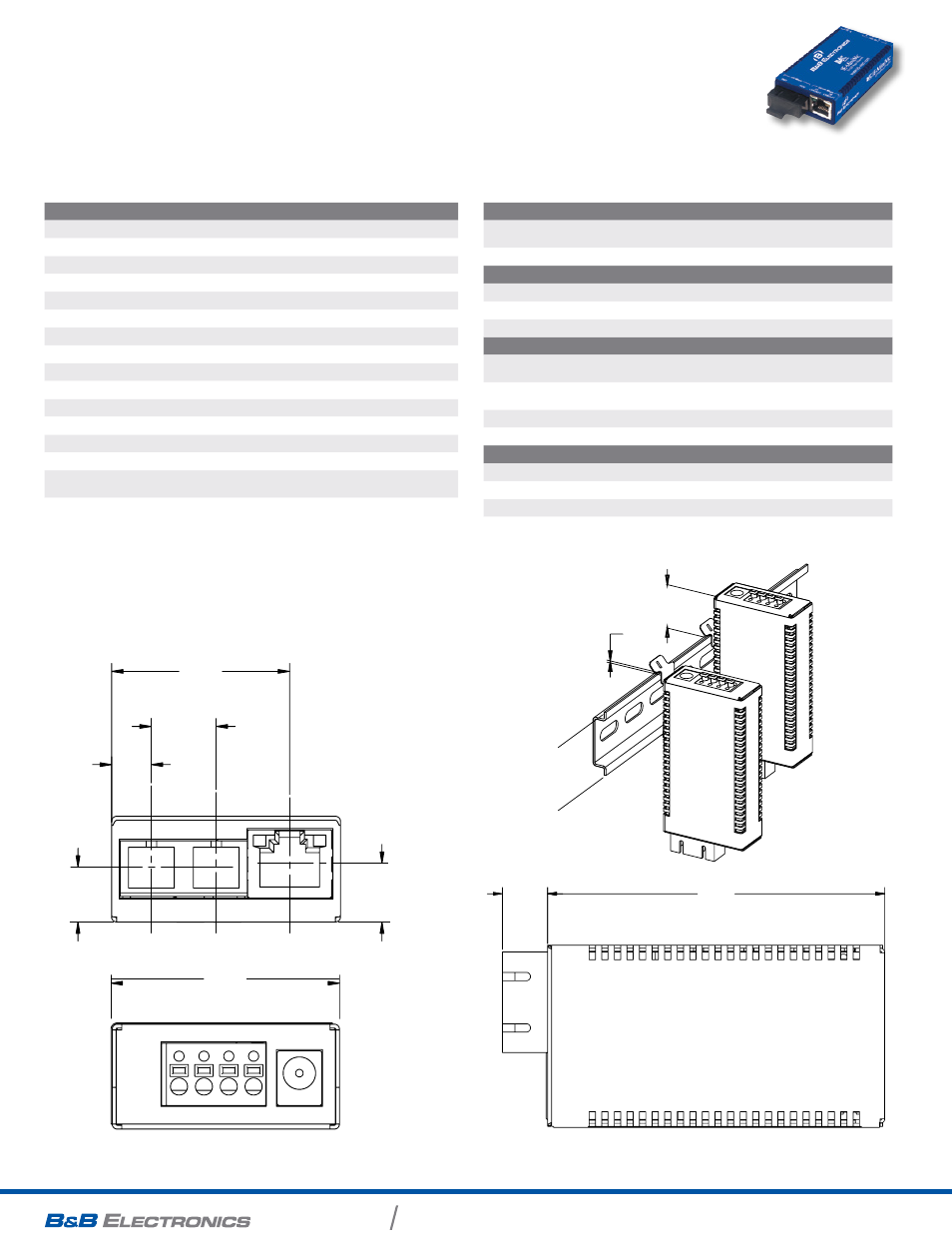

mEchanIcal dIagram
(dimensions in inches & millimeters)
