B&B Electronics I-7017 - Datasheet User Manual
Channel analog input module

I-7017 / I-7017F - 5003 1/2
International Headquarters:
707 Dayton Road P.O. Box 1040 Ottawa, IL 61350 USA
815-433-5100 Fax 433-5104 www.bb-elec.com [email protected] [email protected]
Westlink Commercial Park Oranmore Co. Galway Ireland
+353 91 792444 Fax +353 91 792445 www.bb-europe.com [email protected] [email protected]
Integrate – Expand – Simplify
B&B ELECTRONICS
PRODUCT INFORMATION

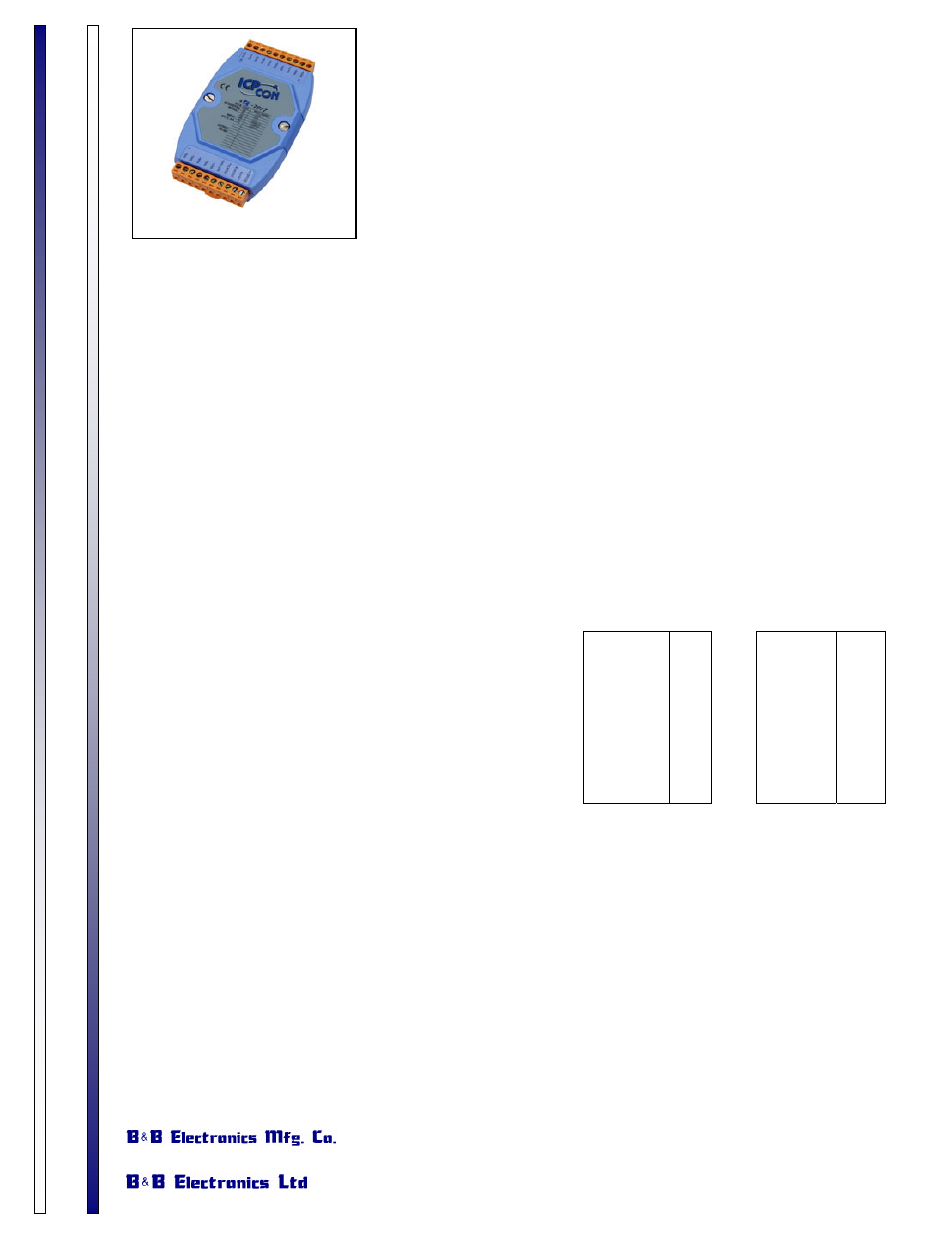

Models: I-7017, I-7017F
8-channel Analog Input Module
The I-7017 and I-7017F are 8-channel analog input modules. The I-7017F supports high-speed analog input function.
Features/Benefits
DIN rail mountable
10 to 30 VDC input
Dual watchdog
Specifications
Analog Input
Type: mV, V , mA (with external 125 ohms resistor)
Channels: 8 differential or 6 differential and
2 single-ended by jumper select
Voltage range: +/-150mV,+/- 500mV, +/-1V,+/- 5V, +/-10V
Current range: +/- 20mA
Resolution: 16 bits
I-7017 sampling rate: 10 Samples/Second
I-7017F sampling rate: 75 Samples/Second
Bandwidth: 15.7 Hz
Input impedance: 20M Ohms
Accuracy: ±0.1%
Zero Drift: ± 20uV/°C
Span Drift: ±25ppm/°C
CMR @ 50/60 Hz: 86 dB
NMR @ 50/60 Hz: 100 dB
Over voltage protection: 35V (P-P)
Isolation: 3000Vrms
Digital Input
Channel: 1
Logic Level 0: + 1V max
Logic Level 1: + 3.5V to 30V
Event Counter
Max. Input Frequency: 50Hz
Min. Pulse Width: 1 mS
Digital Output
Channels: 2
Open Collector to 30V
Output Load: sink 30mA max.
Power Dissipation: 300mW
Model I-7017
PIN Assignments
Vin5+
Vin5-
Vin6+
Vin6-
Vin7+
INIT*/Vin7-
(Y)DATA+
(G)DATA-
(R)+Vs
(B)GND
1
10
Vin4-
Vin4+
Vin3-
Vin3+
Vin2-
Vin2+
Vin1-
Vin1+
Vin0-
Vin0+
20
11
