Dual Band (2.4 GHz, 5 GHz)
Ethernet Bridge/Router
AirborneM 2 M TM Enterprise Series
Features
Transmit Power
802.11b 15 dBm (31.6mW)
802.11g 12.6dBm (18.12mW)
802.11a 17 dBm (50.1mW)
Security Protocols
Disabled, WEP 64 & 128bit, WPA (TKIP), WPA (AES), WPA2
(AES), 802.1x (EAP) Supplicant 802.11I, WPA & WPA2
Enterprise supplicants (EAP-TLS, EAP-TTLS(MSCHAPv2),
EAPTTLS (MDS5), EAP-PEAPv0 (MSCHAPv2, LEAP), EAP-FAST,
LEAP)
Supports Certificates and Private Key Upload and Storage
(Multiple)
Antenna Integrated RP-SMA Omni-directional 2dBi 2.4/5 GHz Antenna
Power Supply 5.0VDC+/-5%
Supply In-rush
Current
3000mA (MAX) for 20ms
DC Characteristics Operating Current (Tx, 802.11g) = 370mA Typ.
Operating Current (Rx, 802.11g) = 200mA Typ.
Environmental
Operating Temperature: -20° to +85°C
Storage Temperature: -20° to +85°C
Relative humidity: 5% - 95% (non-condensing)
Vibration: 20G peak-to-peak, 20Hz-2KHz swept
Shock: 1500G peak-to-peak, 0.5mS duration
Interfaces 10/100 Ethernet
Enclosure Nylon (Gray)
LED Indicators 3 indicator LEDs (Power, LINK, COMM)
Agency Approvals
North America: FCC Title 47 Part 15 Class B Sub C Intentional
Radiator, IOC RSS210
Europe: CE ETSI EN300 328
RoHS & WEEE compliant
SpecificationS
Technology
Technology IEEE 802.11a/b/g/n, Wi-Fi compliant
Wired Interface 10/100 Ethernet port (Bridge, Router (NAT3) Modes)
Frequency
2.4 ~ 2.4835 GHz (US/Canada/Europe)
5.150 ~ 5.350 GHz
5.725 ~ 5.825 GHz
Modulation Technology DSSS, CCK, OFDM
Modulation Type DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Network Access Modes Infrastructure (Client), Ad Hoc
Channels
US/Canada: 11 Channels 802.11b/g
13 Channels 802.11a
Europe: 13 Channels 802.11b/g
19 Channels 802.11a
France: 4 Channels 802.11b/g
Wireless Data Rate
802.11b = 11, 5.5, 2, 1 Mbps
802.11a/g = 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n = 65, 58.5, 42, 39, 26, 19.5, 13, 6.5 Mbps
MAC CSMA/CA with ACK, RTS, CTS
Network Protocols TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING
Receive Sensitivity
802.11 b/g
54Mb/s = -72 dBm
36Mb/s = -78 dBm
18Mb/s = -84 dBm
6Mb/s = -89 dBm
11Mb/s = -86 dBm
1Mb/s = -92 dBm
Receive Sensitivity
802.11 a
54Mb/s = -74 dBm
36Mb/s = -80 dBm
18Mb/s = -86 dBm
6Mb/s = -90 dBm
Dimensions 63.4 x 99.0 x 46.7 mm (2.6 x 4.0 x 1.9 in)

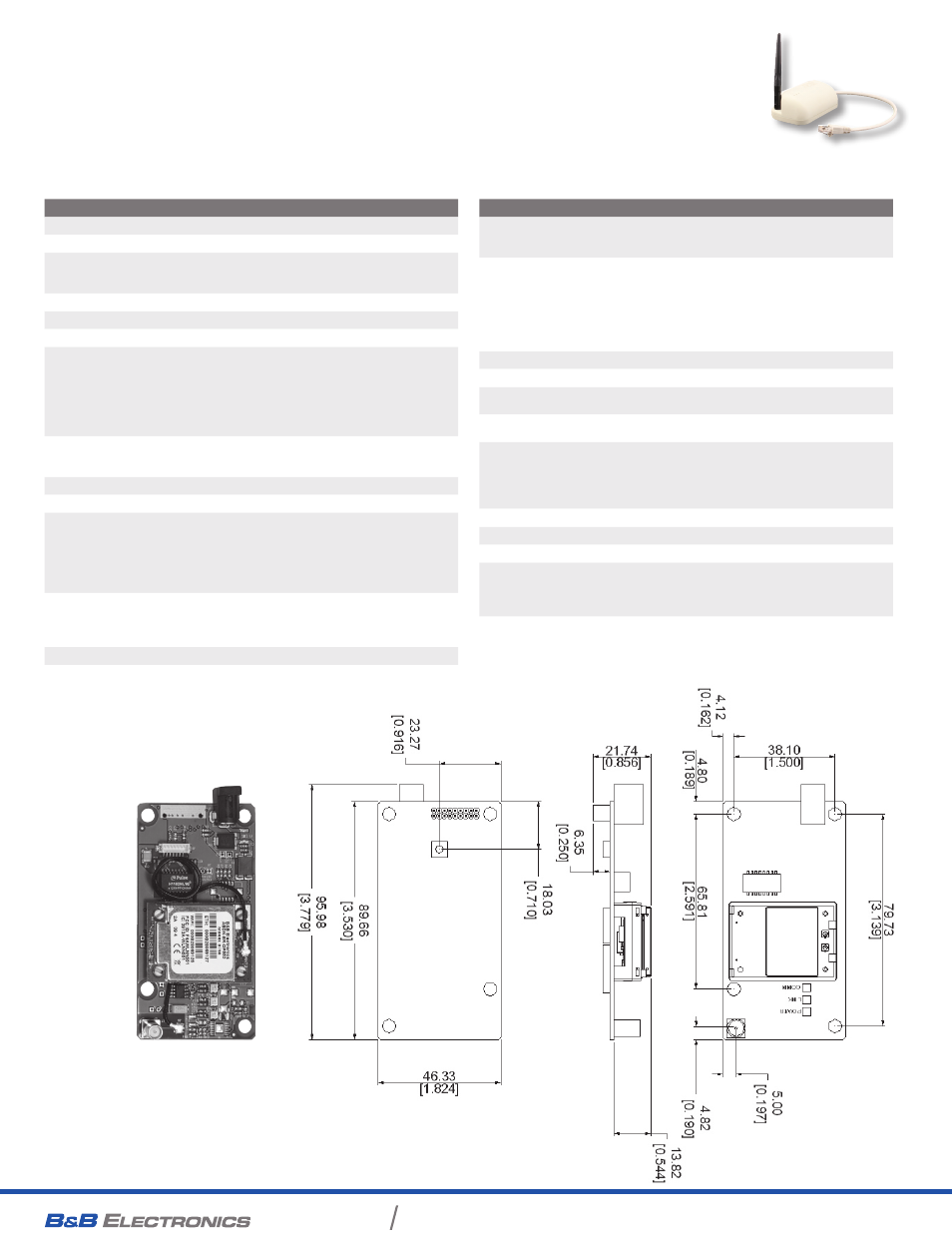

mECHAniCAl DiAGRAm
Model ABDN-ER-Dp553
Dimensions are in mm
