Ordering information, Specifications

Distributed DA&C Systems
All product specifications are subject to change without notice
Last updated : January 2005
Channels
8 differential
Effective Resolution
16-bit
lnput Type
mV, V, mA
lnput Range
±150 mV, ±500 mV, ±1
V, ±5 V, ±10 V; ±20 mA
Isolation Voltage
3000 V
DC
Fault and Overvoltage Withstands overvoltage
Protection
up to
±35 V
Sampling Rate
10 samples/sec. (total)
Input Impedance
2 M
Ω
Bandwidth
13.1 Hz @ 50 Hz, 15.72
Hz @ 60 Hz
Accuracy
±0.1% or better
Zero Drift
±1.5 mV/° C
Span Drift
±25 PPM/° C
CMR @ 50/60 Hz
92 dB min.
Power Consumption
1 W (typical);
1.25 W (max.)
Analog Signal Range ±15 V max.
Note: The voltage difference between any two pins
must not exceed ±15 V
Ordering Information
ADAM-5017
8-channel Analog Input
Module - mV, V, mA
Channels
8 differential
Effective Resolution
12-bit plus sign bit
Input Type
mV, V, mA
Input Range
±250 mV, ±500 mV,
±1 V, ±5 V, ±10 V, 0 ~
+500 mV,
0 ~ +1 V, 0 ~ +5 V, 0 ~
+10 V,
0 ~ 20 mA, 4 ~ 20 mA
Isolation Voltage
3000 V
DC
Sampling Rate
Depends on base unit
ADAM-5000/485 & 5000E: 100 samples/sec
ADAM-5510:
8000 samples/sec max.: one ADAM-5017H installed
ADAM-5510KW: Up to 100 samples/sec
ADAM-5511: Up to 100 samples/sec
ADAM-5000/TCP:
1000 samples/sec max.: depending on the
performance of client server or controller
Input Impedance
20 M
Ω (voltage inputs)
125
Ω (current inputs)
Bandwidth
1 kHz
Signal Input Bandwidth 1 kHz for both voltage
and current inputs
Accuracy
±0.1% or better
CMR @ 50/60 Hz
92 dB min
Power Consumption
1.75 W (typical);
2.2 W (max)
Distinct Range Settings Allowed on Each
Channel
Note: The voltage difference between any
two pins must not exceed ±15 V
Ordering Information
ADAM-5017H
8-channel High-Speed Analog
Input Module - mV, V, mA
Channels
3
Effective Resolution
16-bit
lnput Type
PT100 or Ni RTD
RTD Types and Temperature Ranges
IEC RTD 100 ohms
Pt
-100° C to +100° C
a=0.00385
Pt
0° C
to +100° C
a=0.00385
Pt
0° C
to +200° C
a=0.00385
Pt
0° C
to +600° C
a=0.00385
JIS RTD 100 ohms
Pt
-100° C to +100° C
a=0.00392
Pt
0° C
to +100° C
a=0.00392
Pt
0° C
to +200° C
a=0.00392
Pt
0° C
to +600° C
a=0.00392
Ni RTD
Ni
-80° C
to +100° C
Ni
0° C
to +100° C
Isolation Voltage
3000 V
DC
Sampling Rate
10 samples/sec. (total)
Input Impedance
2 M
Ω
Bandwidth
13.1 Hz @ 50 Hz, 15.72
Hz @ 60 Hz
Input Connections
2, 3 or 4 wire
Accuracy
±0.1% or better
Zero Drift
±0.015° C/° C
Span Drift
±0.01° C/° C
CMR @ 50/60 Hz
150 dB
NMR @ 50/60 Hz
100 dB
Power Consumption
0.85 W (typical);
1.1 W (max.)
Ordering Information

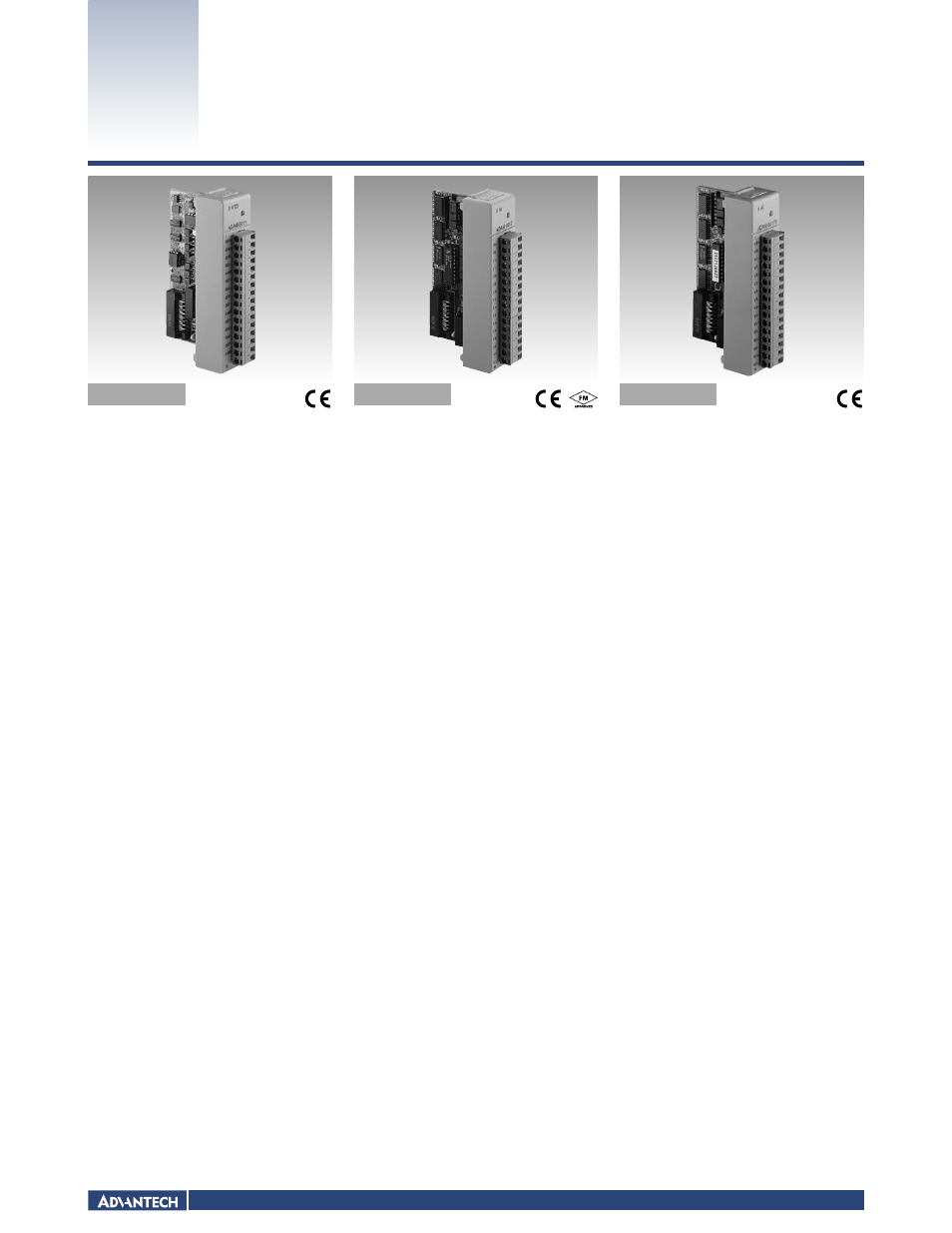

ADAM-5013-A1
3-channel RTD Input Module
3-channel RTD Input Module
8-channel Analog Input Module
8-channel High-Speed Analog Input Module
ADAM-5013
ADAM-5017
ADAM-5017H
ADAM-5013
ADAM-5017
ADAM-5017H
Specifications
Specifications
Specifications
