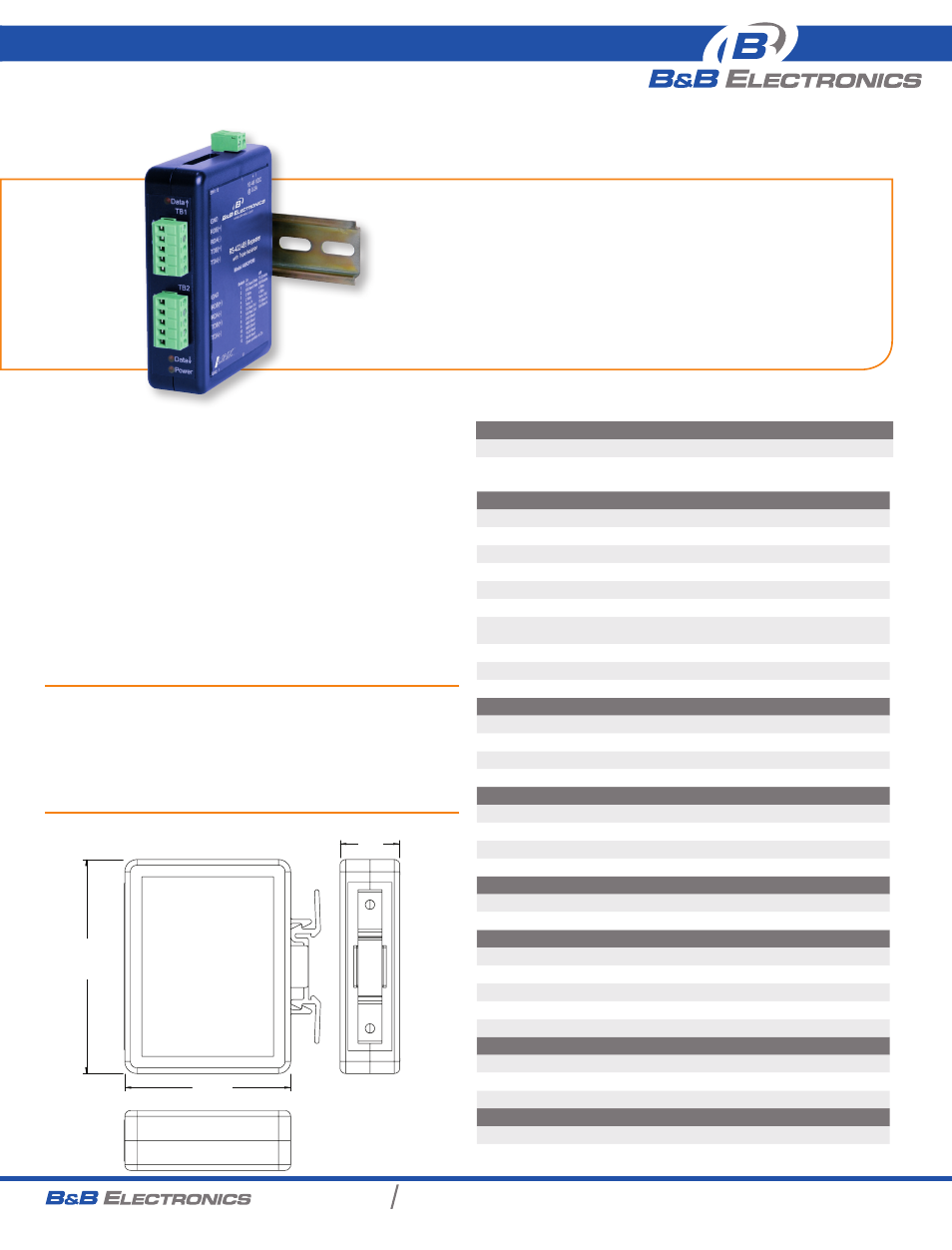

industrial rS-422/485 isolated repeater

485OPDRI

The 485OPDRI isolated RS-422/485 repeater is designed for rugged
industrial environments. It is UL listed and certified for use in Class 1/
Division 2 locations. Powerful optical isolation on both data ports protects
your equipment and data from damaging ground loops and surges.
Additional isolation on the power supply circuits add a third degree of
protection.


Packaged in a rugged ABS plastic case, this repeater operates in wide
temperature extremes. With a 35mm DIN rail mounting bracket, it easily
integrates into control panels or other industrial equipment.


Installation and configuration is easy with DIP switches to set up baud rate
and serial communications mode. Removable terminal blocks make wiring
a snap. Power is connected through separate terminal block that accepts
10 to 48 VDC from any external source.

• Supports data rates up to 115.2 Kbps
• Extends signal 1,200 m (4,000 feet)
• Wide -40 to +80°C temperature range
• 10 to 48 VDC input power range
• 2000 V, 3-way optical isolation
• UL Class 1/Division 2 Listed
• Built-in, switchable termination & bias

proDuCt FeatureS

aCCeSSorieS

MDR-20-24 - DIN rail mount power supply 24VDC, 1.0 A output power
MDR-40-24 - DIN rail mount power supply 24VDC, 1.7 A output power
DRPM25 - 35mm DIN Rail to Panel Mount Bracket, 25mm wide
EK-CLIP-MPC - DIN rail clip for enclosure

orDering inFormation

Model nuMber

desCriPtion

485OPDRI

Industrial RS-422/485 Isolated Repeater

SpeCiFiCationS

serial teChnology

RS-422

TDA(-), TD(B+), RDA(-), RDB(+)

RS-485 4-Wire

TDA(-), TD(B+), RDA(-), RDB(+)

RS-485 2-Wire

Data A(-), Data B(+)

Serial Connector

5 Position, Removable Terminal Block

Data Rate

2.4 to 115.2 Kbps

Isolation

2KV RMS, 1 Minute

Surge Protection

600 W Peak Power Dissipation

Clamping time < 1 pico-second

Industrial Bus

Modbus ASCII / RTU

Bias

Built-in, Switchable, 1.2KΩ XMT/RCV

Termination

Built-in, Switchable, 120Ω

Power

Source

External power required

Power Connector

2 Position, Removable Terminal Block

Input Voltage

10 to 48 VDC (56 VDC Maximum)

Power Consumption

0.5 W (typical), 1.3 W (termination on both sides)

terMinal bloCks

Wire Size Accepted

28 to 12 AWG

Pitch

5.08 mm

Insulation Resistance

≥500 MΩ @ 500 VDC

Maximum Torque

5 Kg / cm

indiCators

Power

Red LED

Data

Red LED for Each Data Port

MeChaniCal

Dimensions

12.3 x 11.3 x 3.2 cm (4.9 x 4.5 x 1.3 in)

Enclosure

IP 20 Plastic, 35 mm DIN Mount

Weight

222 g (0.49 lbs)

MTBF

114696 Hours

MTBF Calc. Method

Parts Count Reliability Prediction

environMental

Operating Temperature

-40 to 80°C (-40 to 176°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Operating Humidity

0 to 95% Non-condensing

regulatory

Approvals

FCC, CE, UL, UL Class 1 DIV 2, Groups A, B, C, D

UL File

E222870 (HAZLOC E245458)

12.3 cm

4.9 in

11.3 cm

4.5 in

3.2 cm

1.3 in

12.3 cm

4.9 in

11.3 cm

4.5 in

3.2 cm

1.3 in

485OPDRI_3713ds
