SpeCiFiCationS

serial teChnology

RS-232
9PCDT

Straight Through Ports: (1) DB9 Male, (1) DB9 Female

Monitoring Port: DB9 Female

232CDT

Straight Through Ports: (1) DB25 Male, (2) DB25 Female

Monitoring Port: (1) DB25 Female

Installation

In-line

MeChaniCal

Weight 9PCDT: 63.5 grams (0.14 lbs)

232CDT: 90.7 grams (0.2 lbs)

environMental

Operating

Temperature

0 to +70 °C (+32 to +185 °F)

Storage

Temperature

-40 to +85 °C (-40 to +185 °F)

Operating

Humidity

0 to 95% Non-Condensing

MTBF, 232CDT

1637197

MTBF Calc.

Method

Parts Count Reliability Prediction

aPProvals / CertiFiCations - 9PCdt

FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class B Emissions
CE
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-

Industrial Environments

Download complete Declaration of Conformity at www.bb.elec.com

3.33 cm

1.31 in

1.74 cm

0.66 in

5.29 cm

2.08 in

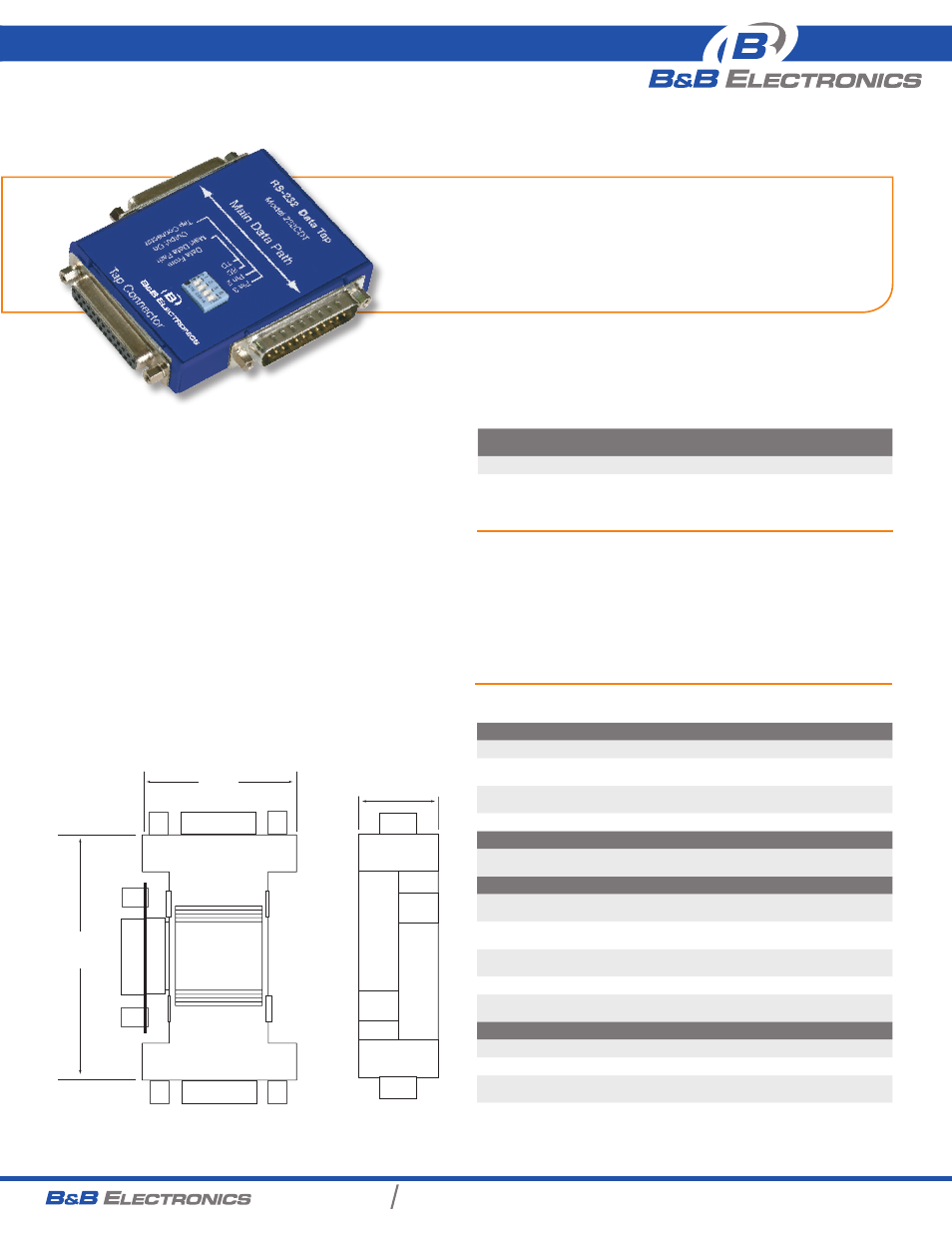

meChaniCaL Diagram - 9pCDt

rS-232 Data taps

9PCDT, 232CDT

Tap in on a serial data stream and transparently feed another
monitor, printer or other device.

Model

9PCdt allows an RS-232 port to tap into and check data

being transmitted between two other RS-232 ports. DIP switches set
programming to monitor the main Transmit and Receive lines individually
or together. Choose between monitoring the DCE or DTE port. Also allows
the monitoring port to be either DTE or DCE. The DTE connector is male,
and DCE and TAP connectors are female.

Model

232Cdt has DIP switches that allow programming to monitor the

main Transmit and Receive lines individually or together. The male RS-232
connector on the top and the female RS-232 connector on the bottom
are connected straight through, pin for pin. These connectors are used to
connect the device – in series – with the RS-232 line to be tapped.

• Monitor and record serial data streams
• Easy to install, may be left in place
• Transparent connections
• No external power required

proDuCt FeatureS

aCCeSSorieS

9PAMF6 - DB9 Male To DB9 Female, 6 ft.
232CAMS - DB9 Female to DB25 Male, 6 in
232AMF5 - DB25 Male to DB25 Female, 6 ft.
232SGM - DB25 Gender Reverser – Changes Female Port to Male (M to M)
232SGF - DB25 Gender Reverser – Changes Male Port to Female (F to F)

orDering inFormation

Model

nuMber

straight

through ConneCtors

Monitoring Port

9PCDT

(1) DB9 Male, (1) DB9 Female

DB9 Female

232CDT

(1) DB25 Male, (2) DB25 Female

DB25 Female
