Smallest, Most Reliable Gigabit
Switching Media Converter
Giga-MiniMc LFPT
SpecificationS
Technical
Plug-and-play operation
RJ45 and SC or SFP connectors
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
MTU: Supports Jumbo Frames up to 10240 bytes
Country-specific, high-reliability power adapter
Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 1,488,096 pps for
1000 Mbps)
Status LEDs
Mechanical
Dimensions
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
Shipping Weight 0.7 lbs (.317 kg)
Power
5 VDC, 400mA
120 VAC, 0.1A
environMental
Operating Temperature: +32° F to +122° F (0° C to +50° C)
Storage Temperature: -31° F to +167° F (-35° C to +75° C);
Operating Humidity 5% to 95% (non-condensing)
regulatory aPProvals
FCC Class A
UL/cUL, CSA, CE

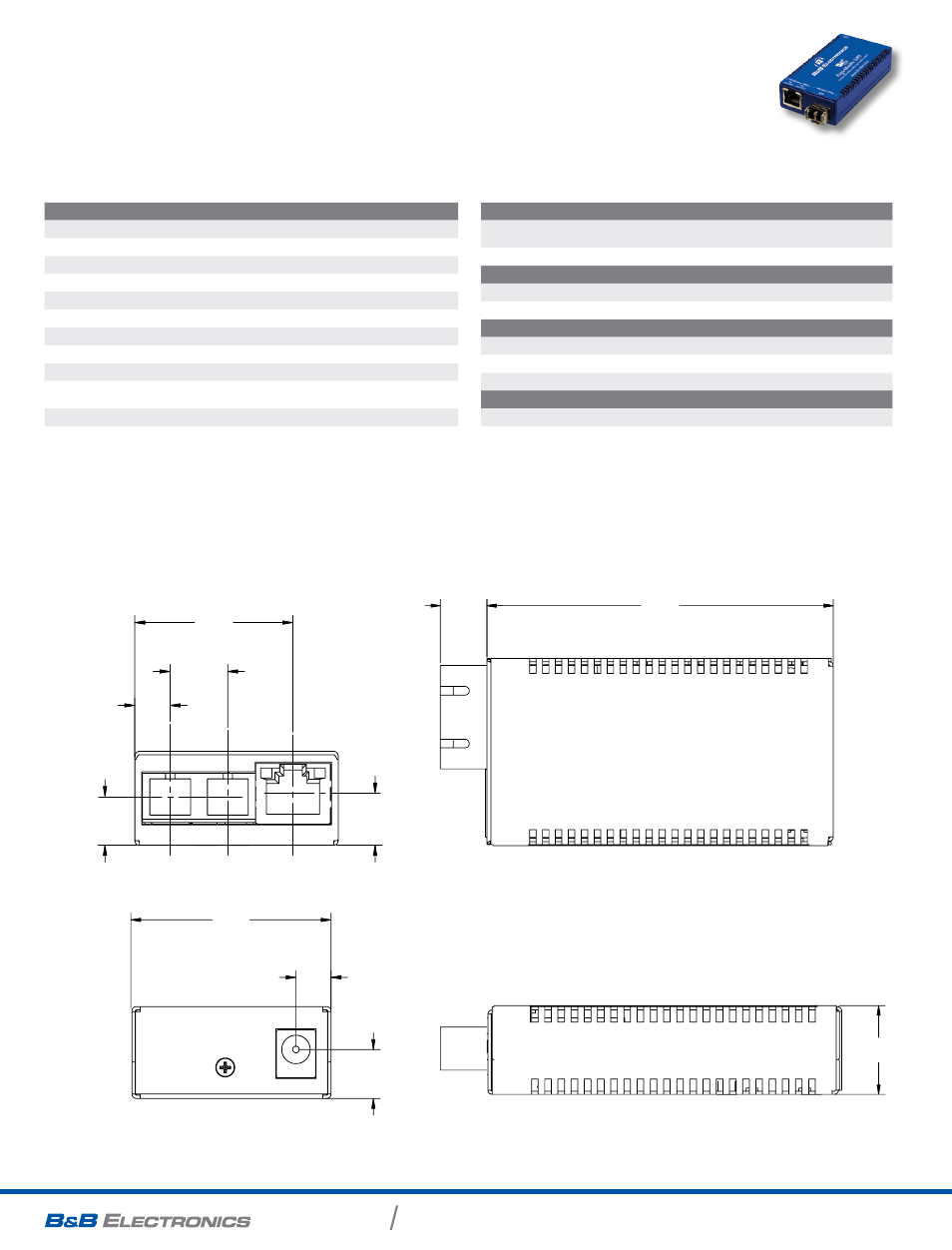

MEChAniCAl DiAGRAM
(dimensions in inches & millimeters)
(7,9)
.31
(12,9)
REF
.51
(35,6)
1.40
(11,0)
.43
(11,7)
.46
(11,2)
.44
(8,1)
.32
(46,0)
1.81
(85,1)
3.35
(11,4)
.45
(21,3)
.84
