Model ADAM-6018
Accurate and Reliable Thermocouple
Measurement for Industrial Automation
8-Channel Thermocouple Input with DO Module
Overview
The ADAM-6018 8-channel thermocouple input module is the most prevailing temperature sensor in today’s industrial
automation market. In addition to 8 T/C input channels, the ADAM-6018 is also equipped with 8 digital output channels

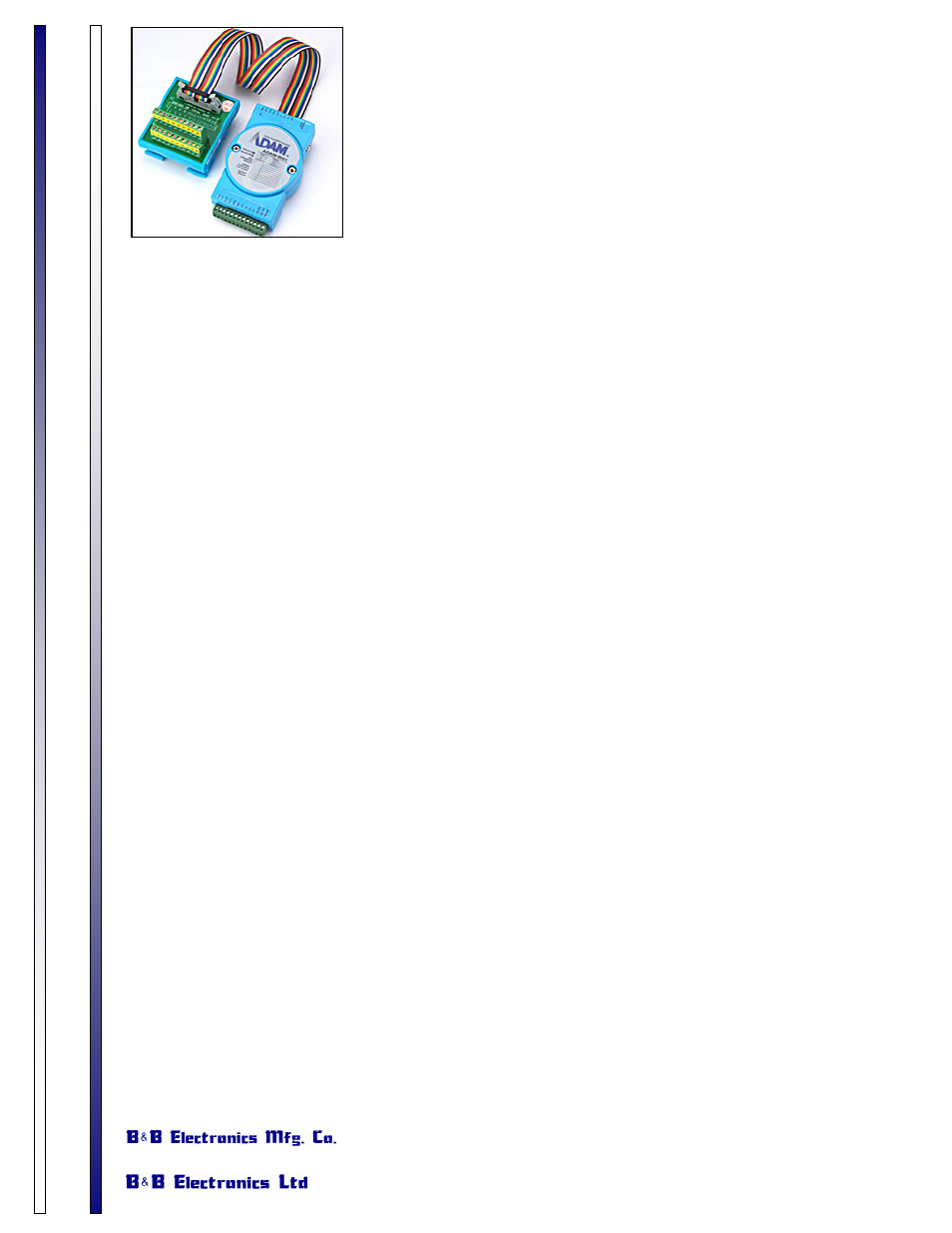

such as auxiliary alarm outputs or pure outputs. It also comes with an external DIN-rail terminal board for wiring
between the ADAM-6018 module and the field sensor. This special wiring mechanism greatly enhances the accuracy
and reliability for thermocouple measurement in environmental and facility monitoring applications.
Features
• I/O type: 8 thermocouple and 8 digital output
• 10/100 Based-T Ethernet
• Supports multi-channel/multi-range
• Provides default/customized web page
• 2,500 VDC optical isolation
• Built-in watchdog timer
Specifications
Communication
Ethernet interface:
RJ45
Speeds: 10/100 Mbps
Max. Communication distance: 333 feet (100m), can be extended by using switch hub
Power and communication LED indicator
TCP/IP, UDP, MODBUS/TCP supported
Online module insertion and removal
Channels: 8 differential
Effective Resolution: 16-bit
Input Type: Thermocouple
Thermocouple Type and Range:
J
0 ~ 760°C
K 0 ~ 1370°C
T -100 ~ 400°C
E 0 ~ 1000°C
R 500 ~ 1750°C
S 500 ~ 1750°C
B 500 ~ 1800°C
Isolation Voltage: 2000VDC
Fault and Overvoltage Protection: Withstands overvoltage up to ± 35 V
Sampling Rate:
10 samples / sec.
Input Impedance: 10KΩ
Bandwidth: 13.1 Hz @ 50 Hz.
15.72 Hz @ 60 Hz
Accuracy: ± 0.1% or better
Zero Drift: ± 6 µV/°C
Span Drift: ± 25 ppm/°C
CMR @ 50/60 Hz: 92 dB min.
