SpecificationS
RS-422/485
Connector Terminal Block
SIGNALS
TDA(-), TDB(+), RDA(-), RDB(+), GND
RS-422
RS-485 2-Wire and 4-Wire
Protected GND on Isolated Side
DAtA RAte
Bit-Wise Enabled Up to 1.5 Mbps
ISOLAtION
Method Optical
Rating 2000 V
SURGe SUPReSSION
Method TVS
Rating 12 V bi-directional
avalanche breakdown device
600 W peak power dissipation
Response Time < 1 pico-second
POWeR
Connector Terminal Block
Voltage 10 to 30 VDC
Power Consumption 0.7 W
Source External
teRMINAL BLOCKS
Wire Size 24 to 14 AWG
Torque 4 kgf-cm
High-Speed, Isolated,
RS-422/485 Repeater
485OPDR-HS
LED INDICATORS
2 DATA LEDs (Green) Data LED for each side of isolator
Flashes when data transmitted
ENCLOSURE
Material Plastic
IP Rating 20
Dimensions 1.0 x 3.1 x 3.7 in (2.5 x 7.9 x 9.5 cm)
Mounting 35 mm DIN (Panel Mount Adapter is available)
ENVIRONMENTAL
Operating Temperature -40 to 80 C (-40 to 176 F)
Storage Temperature -40 to 85 C (-40 to 185 F)
Operating Humidity 0 to 95% Non-condensing
MTBF 117316
MTBF Calculation Method MIL217F Parts Count Reliability
APPROVALS AND CERTIFICATIONS
Agency Approvals CE, FCC, NEMA TS2
EN61000-6-2 (Heavy Industrial)
EN61000-4-2 (ESD) ± 4 kV contact, ± 8 kV air
EN61000-4-3 (RI) 10 V/m, 80-1000 MHz; 3 V/m 1.3 to 2.7 GHz
EN61000-4-4 (EFT Burst) ± 2 kV DC ports; ± 1 kV signal ports
EN61000-4-5 (Surge) ± 2 kV common; ± 1 kV differential
EN61000-4-6 (CI) 10 Vrms, 0.15 to 80 MHz
EN61000-4-8 (Magnetic) 10 A/m, 50 Hz & 60 Hz
Other IEC60068-2-27 (Shock) 50 G Peak, 11 ms, 3 axes
IEC60068-2-6 (Vibration) 140-500 Hz, 4G, 3 axes
IEC60068-2-32 (Drop) 10 total drops from sides, corner, edges
Emissions FCC Class B, CISPR Class B (EN55022)
9.5 cm (3.7 in)
7.9 cm
3.1 in
2.5 cm 1.0 in
10.6 cm (4.2 in)

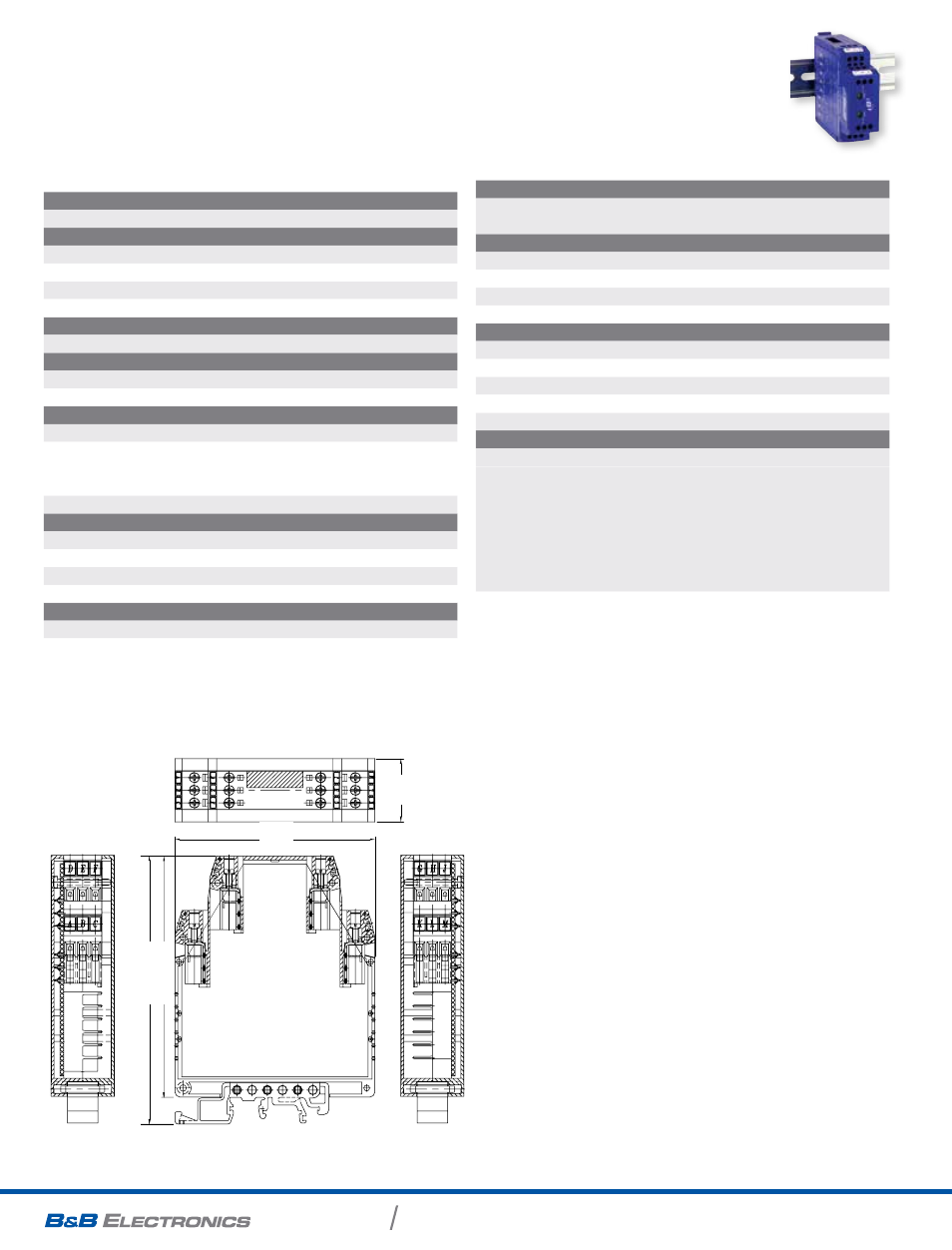

meCHanICal dIagRam
