10/100/1000 Mbps Optical

Ethernet Demarcation Unit

IE-Multiway

SpecificationS

Technical

Plug-and-Play Operation
2 x RJ-45 and 2 x SFP ports (SFPs sold separately)
IEEE 802.3i 10Base-T over twisted pair
IEEE 802.3u 100Base-TX over twisted pair
IEEE 802.3u 1000Base-T over twisted pair
IEEE 802.3u 100Base-FX
IEEE 802.3u 1000Base-X
Jumbo Frames support (up to 10240 bytes)
Auto Negotiation, Auto-Cross for MDI/MDIX
Includes diagnostic LEDs
1+1 uplink protection (< 50 mSecs)
Extended temperature range from -40° to +85° C
-48 VDC terminal for Telco applications
Compatible with all standard MSA compliant SFP transceivers

sTandards compliance

IEEE 802.3ah
IEEE 802.1ag
Y.1731
SFP-MSA SFP standard (September 14, 2000)
SFF-8472 DDMI standard (Revision 1.0)

Mechanical

Dimensions

0.86”H x 3.66”W x 3.86”D

(2.2 x 9.38 x 9.94 cm)

Enclosure

Metal

Shipping Weight

1.0 lbs (0.45 kg)

Power

5 to 24 VDC (Barrel)
48 VDC Telco (Terminal

Power inforMation

Min: 3.15W (1 optic SFP [1 Gbps], 1 Tx [100 Mbps])
Max: 7.0W (2 Cu SFP [1 Gbps], 2 Tx [1 Gbps])
*

Power consumption is based on SFP types

environMental

Operating Temperature

w/ Franmar AC Wall Adapter

+14° to +122° F (-10° to +50° C)

Operating Temperature

w/DC Configuration

-40° to +185° F (-40° to +85° C)

Storage Temperature

-49° to +185° F (-45° to +85° C)

Operating Humidity

10 to 95% Non-condensing

regulatory aPProvals

FCC Class A (Using 48V Telco-type power)
FCC Class B (Using all other power options)
UL/cUL, CE

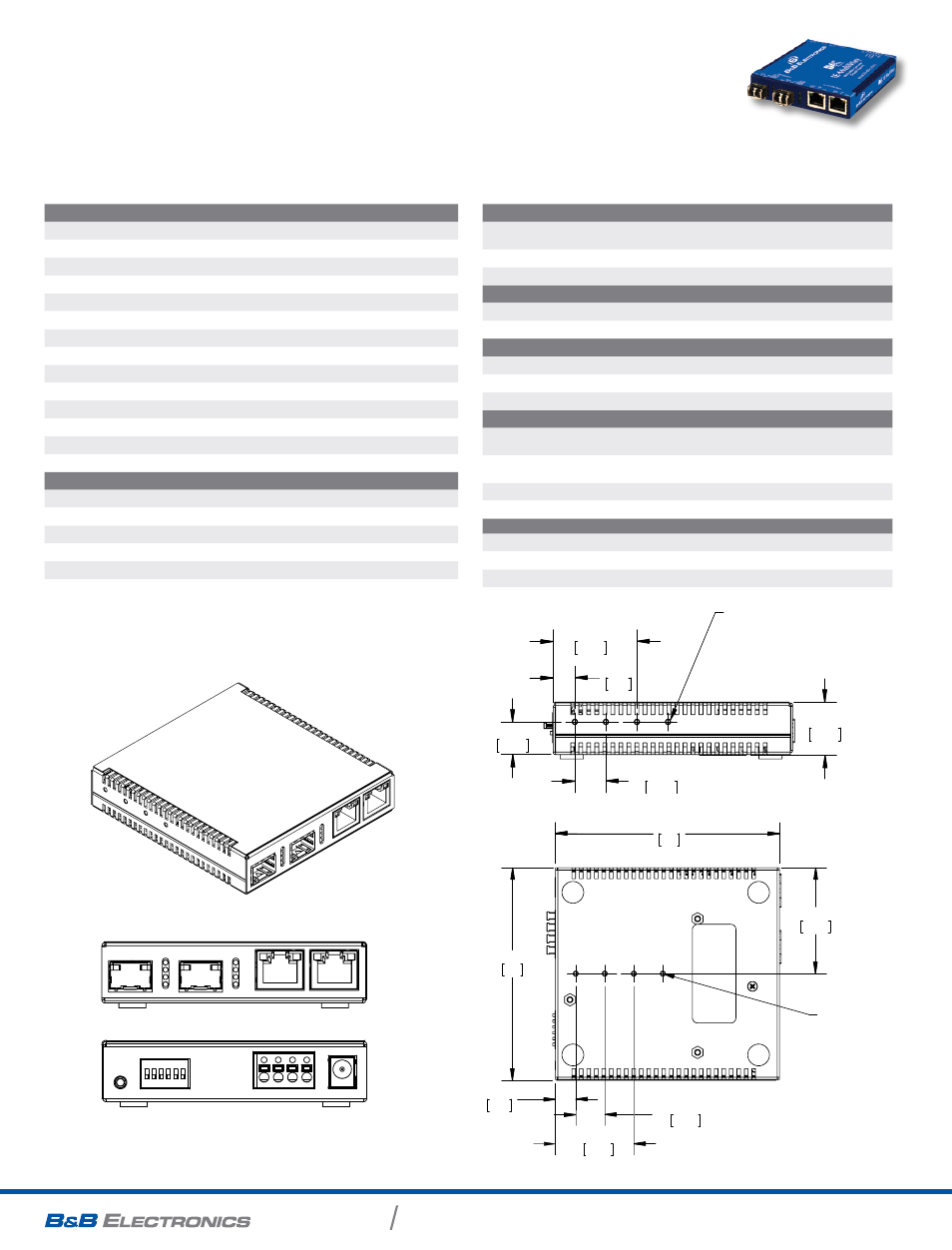

MEChAniCAl DiAgRAM

.35
8.9

1.35
34.3

2X .50

12.7

3.86

3.66

1.82
46.3

DIN RAIL CLIP &

WALL MT BRKT

MOUNTING

4X, 2-56 THDS

MAX SCREW

LENGTH, .09 IN.

.35
8.9

1.35

34.3
