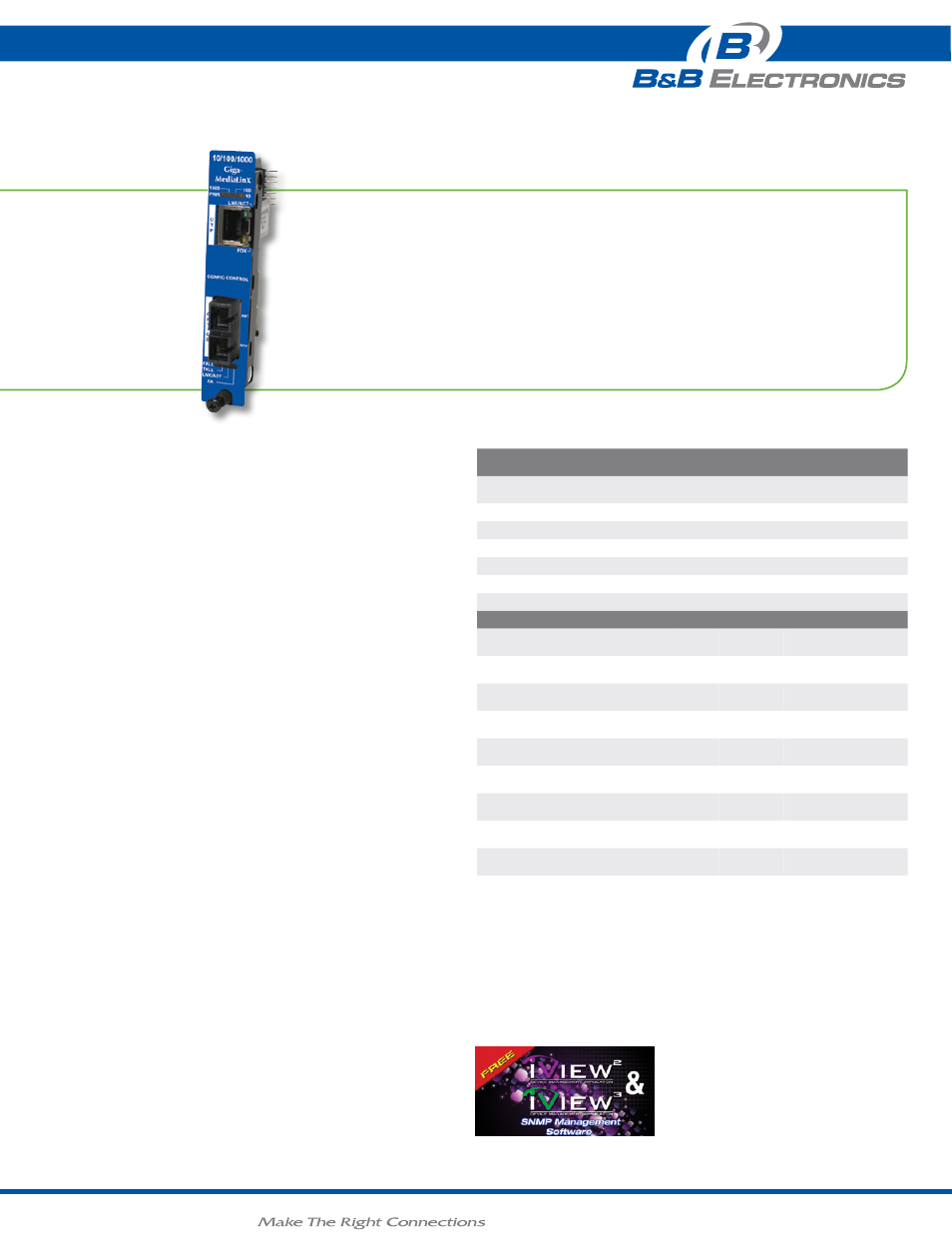

10/100/1000 mbps Ethernet media converter
iMcV-Giga-MediaLinX
10/100/1000 mbps Ethernet
media converter
iMcV-Giga-MediaLinX
Satisfying today’s networking needs while preparing for tomorrow’s
cabling requirements can make designing and installing the physical
layer of networks a daunting task. The decreasing cost of fiber optic
cabling and switching equipment makes all-optical LANs the obvious
choice when future-proofing network equipment. Replacing legacy
equipment and wiring infrastructure is a costly choice. Managed media
conversion allows implementation of new technologies on existing
networks, while monitoring all connections, to keep networks running
and up-to-date.
B&B Electronics offers a wide range of SNMP-managed Ethernet
copper to fiber media converters, with a choice of fixed rate or
rate conversion capabilities. The “iMcV-“ modules also include
troubleshooting features and LEDs to assist in network diagnostics as
well as make isolating cable breaks easier. The iMcV-Giga-MediaLinX
and IE-iMcV-Giga-MediaLinX also features Link Fault Pass-Through.
In addition, support for Config Control is available if using SNMP
management.
All converters feature an RJ-45 copper port and a fiber port, with a
choice of SC or SFP (IE-iMcV-Giga-MediaLinX only) connectors, and are
hot-swappable.
Rate converters employ Auto Negotiation functionality on the twisted
pair port for plug-and-play operation, or they can be manually
configured for the desired speed and duplex mode.
• Available for multi-mode or single-mode fiber
• Double fiber capacity with single-strand fiber versions
• Modular, hot-swappable architecture reduces operational costs
associated with product installation, upgrades and maintenance
• SNMP Manageable
• Converts 10,100 or 1000 Mbps Copper to 1000 Mbps Fiber
• Supports Configuration Control
• Features Link Fault Pass-Through (LFPT)
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
ethernet
Ports
ethernet
ConneCtor
iMcv-giga-Medialinx tx/lx or sx 10/100/1000 Mbps with (lFPt) and
Config Control
856-11959 SX-MM850-ST
1 220/550 m 1 RJ45
856-11950 SX-MM850-SC 1 220/550 m 1 RJ45
856-11951 LX-SM1310-SC 1 15 km 1 RJ45
856-11952 LX-SM1310/PLUS-SC 1 40 km 1 RJ45
856-11953 LX-SM1550/LONG-SC 1 80 km 1 RJ45
856-11958 LX-SM1550/XLONG-SC 1 100 km 1 RJ45
single strand FiBer *
856-11940 SSLX-SM1310-SC
(1310xmt/1550rcv)
1 10 km 1 RJ45
856-11941 SSLX-SM1550-SC
(1550xmt/1310rcv)
1 10 km 1 RJ45
856-11933 SSBX-SM1310-SC
(1310xmt/1490rcv)
1 10 km 1 RJ45
856-11935 SSBX-SM1490-SC
(1490xmt/1310rcv)
1 10 km 1 RJ45
856-11942 SSLX-SM1310/PLUS-SC
(1310xmt/1550rcv)
1 40 km 1 RJ45
856-11943 SSLX-SM1550/PLUS-SC
(1550xmt/1310rcv)
1 40 km 1 RJ45
856-11937 SSBX-SM1310/PLUS-SC
(1310xmt/1490rcv)
1 30 km 1 RJ45
856-11939 SSBX-SM1490/PLUS-SC
(1490xmt/1310rcv)
1 30 km 1 RJ45
856-11954 SSLX-SM1490/LONG-SC
(1490xmt/1550rcv)
1 70 km 1 RJ45
856-11955 SSLX-SM1550/LONG-SC
(1550xmt/1490rcv)
1 70 km 1 RJ45
iMcV-Giga-MediaLinX 10/100/1000Mbps also available in
CWDM Fiber. Call for details.
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
product FEaturEs
iView: Windows 2000/XP/Vista/Win7
