Cellular router - Cdma/hspa
Spectre 3G Series
spECIFICatIons
interFaCeS
Standard
Ethernet
10/100 Mbits
USB USB Type A Host
Binary I/O 1 input / 1 output
SIM 1 SIM Card
SIM 2 SIM Card
exPanSion Port oPtionS
Port 1 Ethernet 10/100
RS-232/422/485
Modbus, CNT (I/O)
Port 2 RS-232/422/485
Modbus
CNT (I/O)
i/o Cnt 4 Binary inputs, 1 Binary output (2 inputs maybe
configured as counters)
2 analog inputs, I Binary output
antenna
SMA – 50 Ohm
3G: 2 dBi, penta band, right angle dipole
FrequenCy BandS
Quad Band UMTS (WCDMA): 850, 900,1900 and 2100 MHz
Quad-Band GSM/GPRS/EDGE: 850, 900, 1800,1900 MHz
Power
Source 10 – 30 VDC
Consumption
300 mW receive mode
Up to 3.5 W (GPRS transmission)
Up to 5.5 W (UMTS/HSDPA transmission)
MeChaniCal
Dimensions 42x76x113 mm/1.7x3.0x4.5 in (DIN 35 mm)
Enclosure Metal
Weight 150 g
enVironMental
Operating Temperature -30 to 60°C
Storage Temperature -40 to 85°C
VPn tunneling
IPsec, OpenVPN, L2TP – secure encrypted tunnels
GRE tunnel – simple tunnel without security measures
networking
DHCP – automatic IP addressing in LAN network
NAT – IP address and ports translation between inside/outside network
Firewall: filtering of addresses, ports, protocols
VRRP – virtual backup router function
DynDNS client – access to the router with a dynamic IP address
VLAN 802.11Q: virtual LAN
QoS: quality of service
Dial-in – Communicate via CSD call
NTP client, NTP Server: time synchronization
PPPoE Bridge – PPP frames encapsulation inside ETH frames
ConFiguration and diagnoStiCS
HTTP server – configuration via web server
Telnet – configuration and access to the file system
SNMP – router diagnostics, communication with I/O and M-BUS
Cellular state signalization LED
On-line info on cellular signal status (level, cell, neighbors)
SMS info – power on, cellular connection or disconnection
SMS control – on/off cellular connection, switch SIM, I/O, etc.
Transferred data counting, one more APN as backup
Remote router group configuration change, switching among configuration profiles
SSH – encrypted configuration and access to the file system
additional FunCtionS
Linux based: program your own applications
NTP client, NTP Server – time synchronization
SMS communication – AT commands on RS232, Ethernet and I/O
M-RAM memory inside – router statistic saved into memory
aPProValS / CertiFiCationS
FCC Part 15, CE
EN 550 221B
ETS 300 342 immunity
EN60747 isolation
EN60950 safety; EN 60950-1:06 ed.2 + A11:09 + A1:10
EN 301 511, v9.0.2; EN 301 908-1&2, v3.2.1
ETSI EN 301 489-1 V1.8.1
Service Providers GSM: AT&T, Rogers, T-Mobile. CDMA: Sprint, Verizon

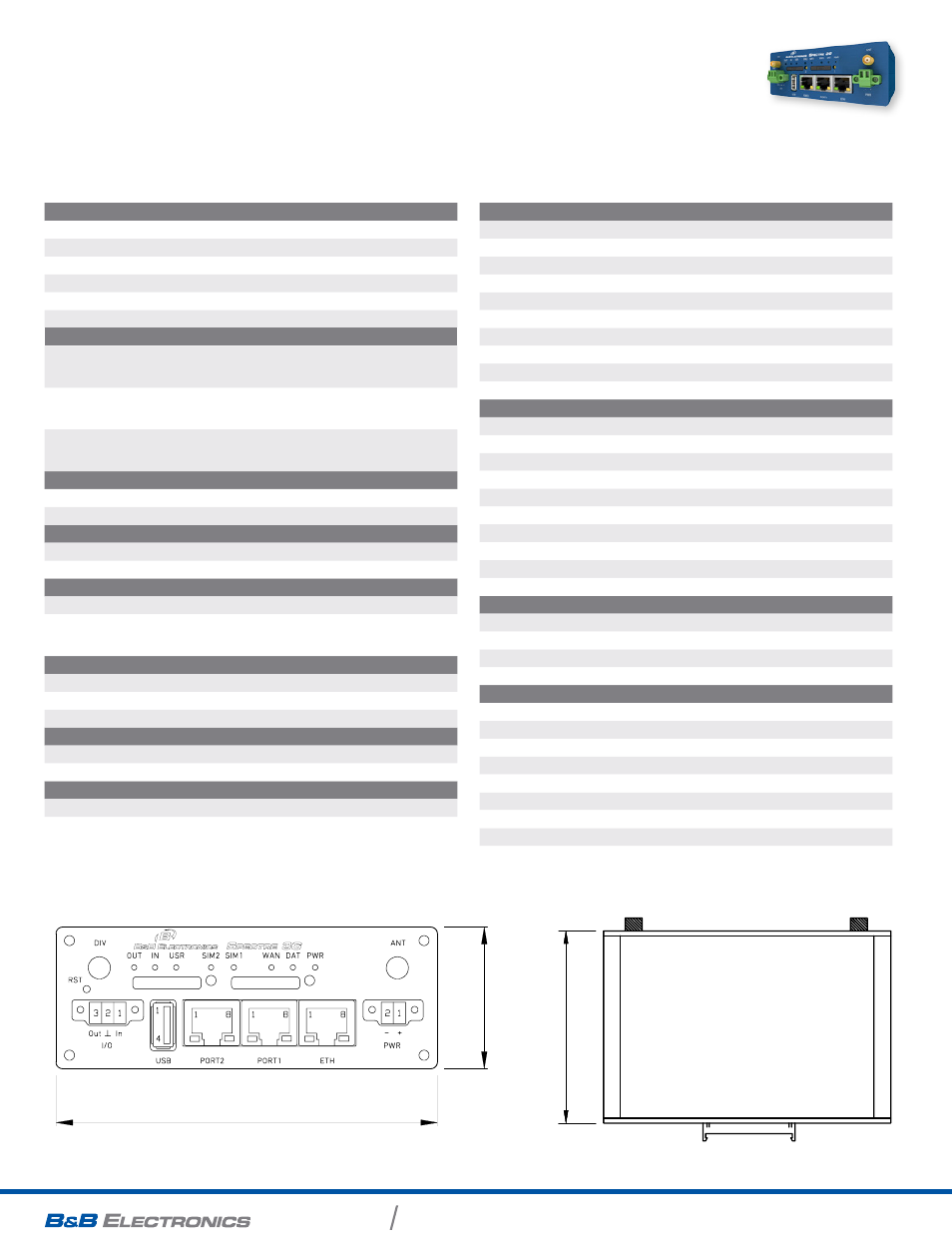

mEChanICal dIagram
42 mm
113 mm
42 mm
76 mm
113 mm
