International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104

European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

[email protected]

[email protected]

SpeCiFiCationS

serial teChnology

Data Rate

115.2 kbps maximum

LED Indicators

TD and RD

rs-232

Connectors 4WSD9OTB: DB9 female

4WSD25OTB: DB25 female

Signals TD, RD, GND

rs-422/485

Connector 4WSD9OTB: Terminal block, removable

4WSD25OTB: Terminal block, removable

RS-485, 2-wire

Data A(-), Data B (+), GND

RS-422/485, 4-wire

TDA(-), TDB(+), RDA (-), RDB(+), GND

Power

Input Required

10-48 VDC

Current Draw

28 mA at 12 VDC (typical)

MeChaniCal

Dimensions, 4WSD9OTB

9.8 x 4.3 x 2.3 cm (3.9 x 1.7 x 0.9 in)

Dimensions, 4WSD25OTB 9.8 x 5.5 x 2.3 cm (3.9 x 2.2 x 0.9 in)
MTBF

179604

MTBF Calculation Method

MIL 217F Parts Count Reliability Prediction

environMental

Operating Temperature

0 to +70 °C (+32 to +158 °F)

Storage Temperature

-40 to +85 °C (-40 to +185 °F)

aPProvals / CertiFiCations - 4wsd9otb, 4wsd25otb

FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class B Emissions
CE
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-

Industrial Environments

EN 61000-4-2: 2009 Electro-Static Discharge (ESD)

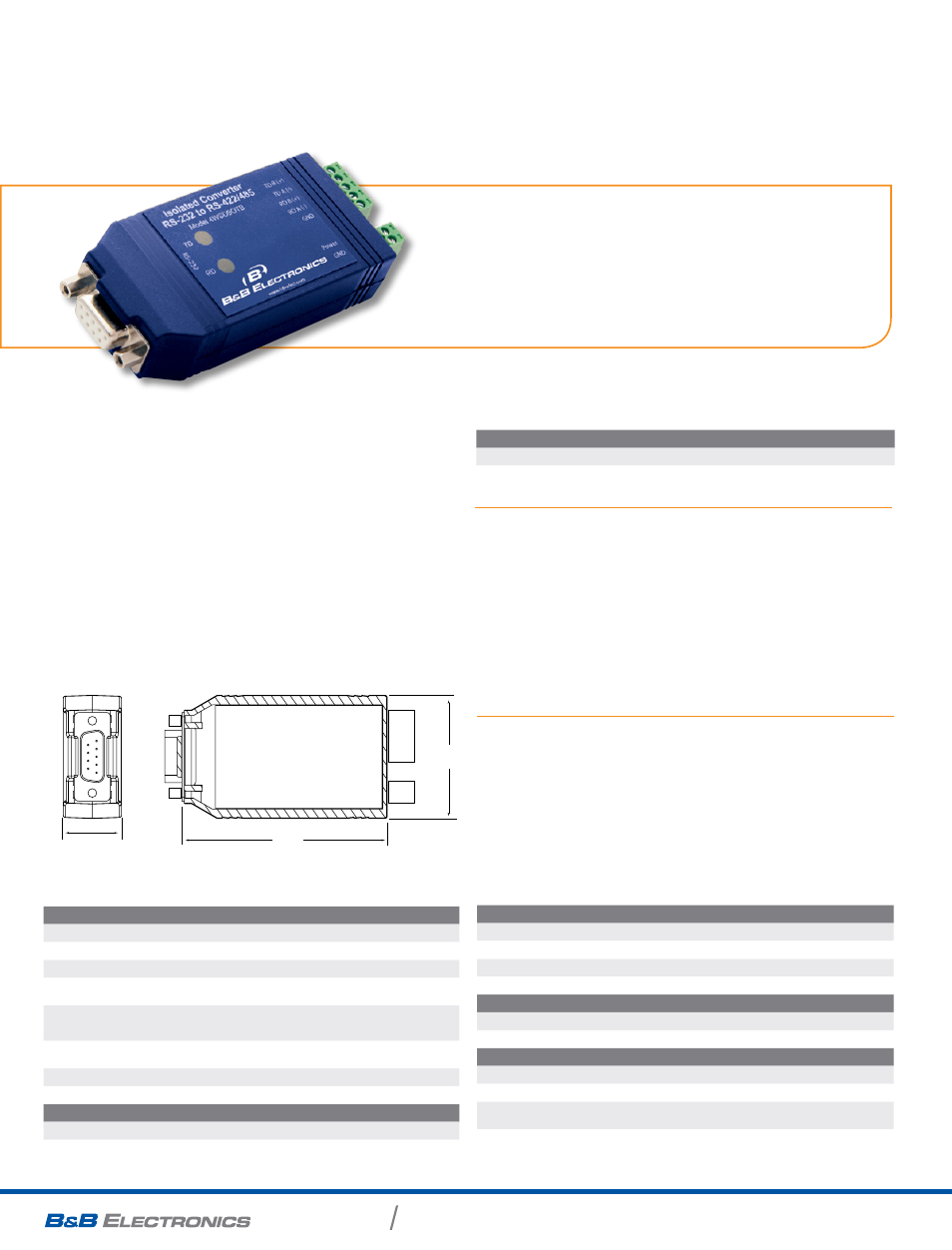

meChaniCaL Diagram

isolated in-line Serial Converters

4WSD9OTB, 4WSD25OTB

Isolated Models 4WSD9OTB and 4WSD25OTB convert RS-232 to RS-
422 or RS-485 (2 or 4-wire). 2,000V two-way optical isolation protects
devices from power surges, spikes and ground loops in harsh electrical
environments.

These in-line converters support distances up to 1,200 m (4000 ft.) and
data rates up to 115.2 kbps. Switchable modes support 2-wire RS-485,
4-wire RS-485, and full duplex RS-422. Available with female DB9 or DB25
RS-232 inputs.

Removable terminal blocks for RS-422/485 and external power make
wiring easy. Accepts external power from 10-48 VDC.

• Modbus compatible serial conversion
• Removable terminal blocks for RS-422/485
• 2,000V two-way optical isolation
• Automatic Send Data Control - no software

drivers necessary

• Accepts external power from 10-48 VDC

proDuCt FeatureS

aCCeSSorieS

485PS2 - 12VDC@100mA wall transformer power supply, tinned stripped leads
7175 - 2 position 3.5MM Replacement Terminal Block (power, included)
7372 - 5 position 3.5MM Replacement Terminal Block (data, included)
TBKT4 - 5 position 3.5MM Replacement Terminal Block
9PAMF6 - 6 ft. (1.8 m) RS-232 Serial Cable
E1250BL-BB3 - 12VDC @ 500MA European wall transformer power supply,

tinned stripped leads
MMNM9 - DB9 male to DB9 male Null Modem Adapter

orDering inFormation

Model nuMber

rs-232 ConneCtor

rs-485 ConneCtor

4WSD9OTB

DB9 Female

Removable Terminal Blocks

4WSD25OTB

DB25 Female

Removable Terminal Blocks

9.8 cm

3.9 in

4.3 cm

1.7 in

2.3 cm

0.9 in

9.8 cm

3.9 in

4.3 cm

1.7 in

2.3 cm

0.9 in
