Features
www.advantech.com/products Online Download
 Supports 1-port 100 Mbps multi-mode fiber optic (ADAM-6541)
 Supports 1-port 100 Mbps single strand fiber optic (ADAM-6542)
 Supports full/half duplex flow control
 Supports Integrated Loop-up engine
 Supports MDI/MDI-X auto crossover
 Provides broadcast storm protection
 Supports +10 ~ 30 V
DC
voltage power input
 Provides surge protection 3,000 V
DC
for power line
 Provides flexible mounting: DIN-rail, panel, piggyback
 Supports operating temperatures from -10 ~ 65° C
 Embedded a switch controller-supports auto-negotiation
 Embedded a memory buffer-supports store and forward transmission

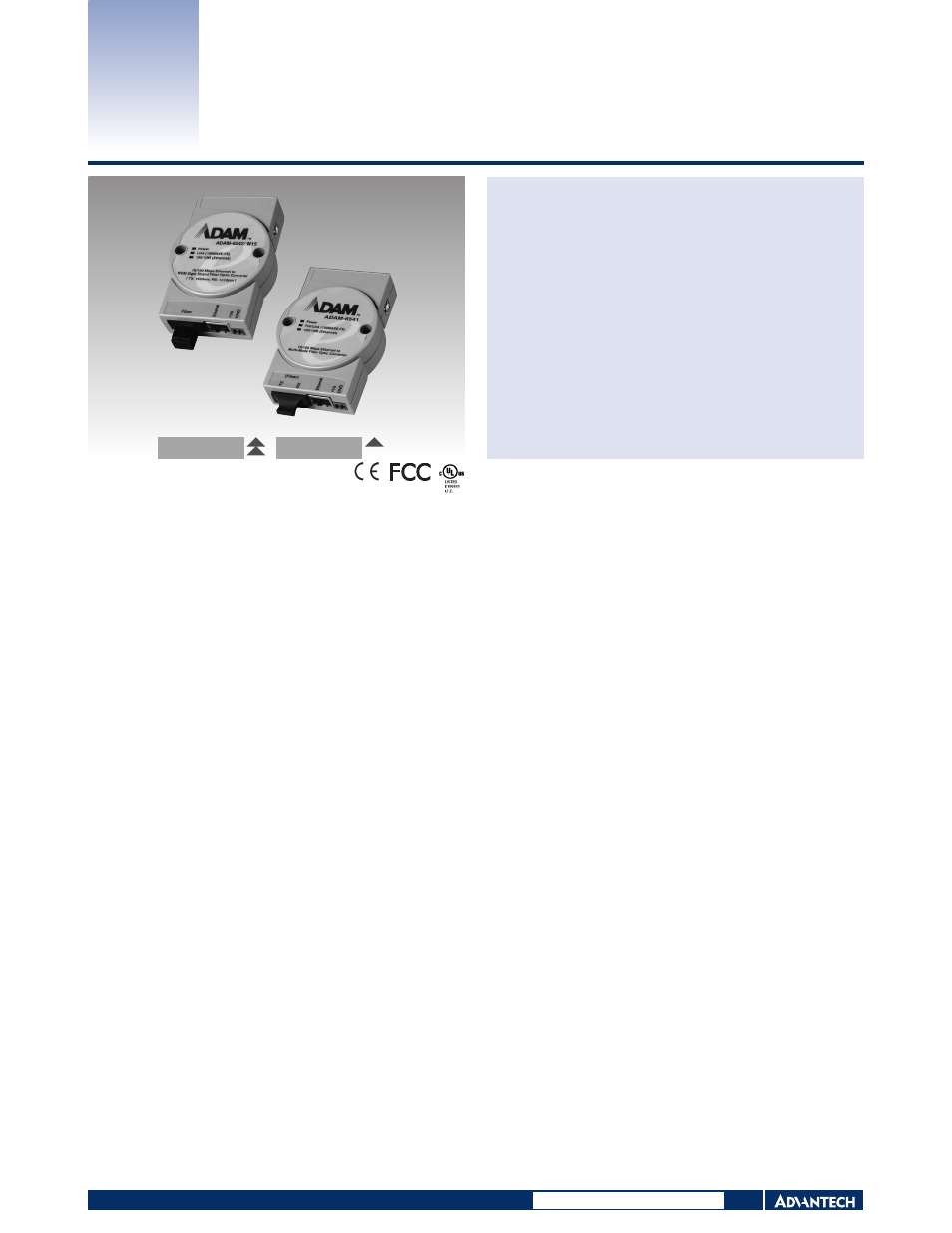

ADAM-6541
ADAM-6542
Specifications
Communications
 Standard IEEE 802.3, 802.3u, 802.3x
 LAN 10/100Base-TX, 100Base-FX
 Transmission Distance
Ethernet : 100 m
Fiber: ADAM-6541 2 km
ADAM-6542 20 km
 Transmission Speed Ethernet: up to 100 Mbps
Fiber: 100 Mbps
Interface
 Connectors 1 x RJ-45
1 x SC type fiber optic connector (ADAM-6541,
ADAM-6542/W13, ADAM-6542/W15)
1 x ST type fiber optic connector (ADAM-6541/ST)
 LED Indicators ADAM-6541: Power, Full/Link (100Base-FX),
100/10 M (Ethernet)
ADAM-6542: Power, Link (100Base-FX),
100/10 M (Ethernet)
Power
 Power Connectors 2-pin removable screw terminal
 Power Consumption Max. 3 W
 Power Input Unregulated 10 ~ 30 V
DC
Mechanism
 Dimensions (WxHxD) ADAM-6541 : 70 x 112 x 27 mm
ADAM-6542 : 70 x 115 x 27 mm
 Enclosure IP30, ABS+PC with solid mounting hardware
 Mounting DIN 35 rail, stack, wall
Protection
 Isolation Protection 1,500 V
rms
(Ethernet port)
 Surge (EFT) Protection 3,000 V
DC
(Power)
Environment
 Operating Temperature -10 ~ 65° C (14 ~ 149° F)
stack : -10 ~ 60° C (14 ~ 140° F)
 Storage Temperature -20 ~ 80° C (-4 ~ 176° F)
 Operating Humidity 20 ~ 95% (non-condensing)
 Storage Humidity 0 ~ 95% (non-condensing)
 MTBF 550,000 hrs
Certifications
 Safety UL 60950-1, CAN/CSA-C22.2 No.60950
 EMC U.S.A.: FCC Part 15 CISPR 22
EU: EN55011
EN55022 Class A,
EN61000-3-2/3
EN55024
IEC61000-4-2/3/4/5/6/8/11
Ordering Information
 ADAM-6541 10/100 Base-TX Ethernet to 100 Base-FX Multi-mode
SC Type Fiber Optic Converter
 ADAM-6541/ST 10/100 Base-TX Ethernet to 100 Base-FX Multi-mode
ST Type Fiber Optic Converter
 ADAM-6542/W15 10/100Base-TX Ethernet to 100Base-FX WDM Single
Strand Fiber Optic Converter (Tx:1550nm, Rx:1310nm)
 ADAM-6542/W13 10/100Base-TX Ethernet to 100Base-FX WDM Single
Strand Fiber Optic Converter (Tx:1310 nm, Rx:1550nm)
Ethernet to Multi-mode Fiber Optic
Converter
Ethernet to Single Strand WDM Fiber Optic
Converter
Introduction
ADAM-6541 and ADAM-6542 are industrial-grade converters designed to convert Ethernet networks to fiber networks. It does so by transparently converting Ethernet signals to optic
signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. Therefore, ADAM-6541 and ADAM-6542 are ideal solution for
“fiber to building” applications at central offices or local sites.
ADAM-6542 uses WDM (Wavelength Division Multiplexing) technology, which increases the information-carrying capacity of fiber by multiplex transmission and reception of signals
at different wavelengths on a singles strand cable. WDM technology is implemented in couples. One site uses an ADAM-6542/W15 where the transmission channel is 1550nm and
the reception channel is 1310nm. The other site installs an ADAM6542/W13 where the transmission channel is 1310nm and the reception channel is 1550nm. Both the transmission
and reception channels of ADAM-6542/W15 and ADAM-6542/W13 are multiplexed to a single strand cable. This means that cabling costs are halved when you use ADAM-6542/W15
and ADAM-6542/W13 instead of a dual fiber converter.
ADAM-6541 and ADAM-6542 support MDI/MDIX auto detection, so you don’t need to use crossover wires. It also includes a switch controller that can sense the transmission speed
(10/100 Mbps) automatically. Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data cane be transmitted
properly.
ADAM-6541 ADAM-6542
