5 Port Industrial ethernet switch
with 4 Poe Injector Ports
EIRP305-T
regulatory
Approvals
FCC, CE, UL
UL File Number: E173795
Free Fall IEC60068-2-32
Shock IEC60068-2-27
Vibration IEC60068-2-6
ieee standards
IEEE 802.3 802.3. 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE802.3af Power over Ethernet
network sPeciFications
Architecture
Back-plane (Switching Fabric): 1.0 Gbps
Throughput (Full-dux): 1.488 Mpps@64bytes
Transfer Rate
14,880 pps Ethernet Port
148,800 pps Fast Ethernet Port
Buffer 448 Kbits
MAC Table 2K
Other
Broadcast Storm Filtering
CSMA/CD

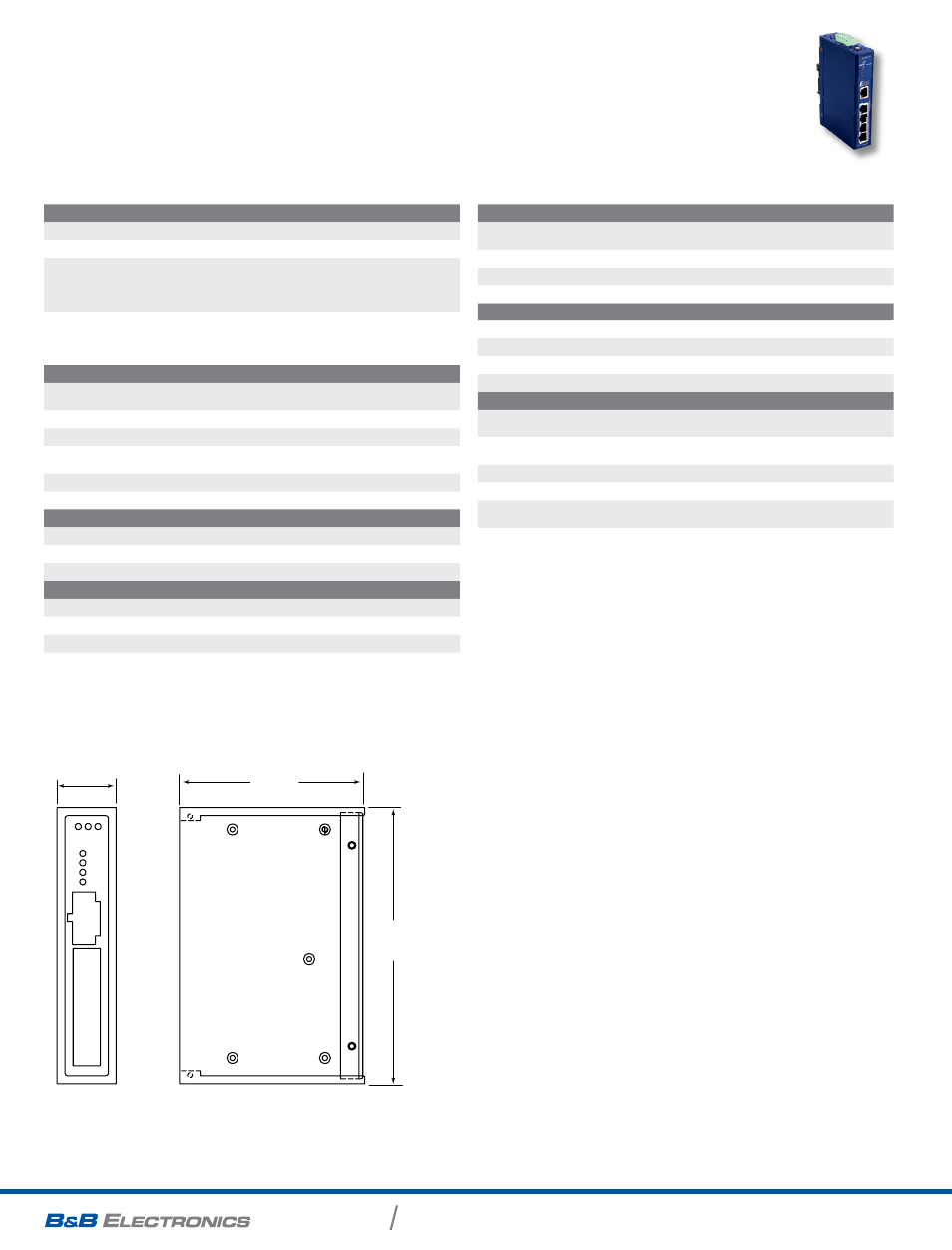

mechAnIcAl dIAgrAm
5.51 in
14 cm
1.18 in
3.0 cm 3.8 in
9.7 cm
sPecIFIcAtIons
interFace
RJ-45 Ports 5 x 10/100BaseT, Auto MDI/MDI-X
ESD Protection 6000V ESD Protection
PoE
802.3af End-point Alternative A (4 Ports)
Positive (VCC+): Pins 1 and 2
Negative (VCC-): Pins 3 and 6
Data: Pins 1, 2, 3, and 6
LED Indicators
P1 (Power 1), P2 (Power 2),
Fault (Power Fault),
RJ-45 Ports have 2 LED’s to indicate LINK
and activity. FWD LEDs for PoE status.
Power
Input Voltage
Dual 48 VDC Inputs
Reverse Polarity Protection
Power Connection Removable Terminal Block
Wire Size 12 to 24 AWG
Power Use
3.4 Watts (without PoE)
67 Watts (full load PoE)
Fault Output 1 Relay Output – Normally Closed
EFT Protection 3000 V EFT Protection
enVironMental
Operating Temperature - 40 to 75°C (-40 to 167°F)
Storage Temperature - 40 to 85°C (-40 to 185°F)
Operating Humidity 0 to 95%
Mechanical
Enclosure IP30 Metal Enclosure
Mounting 35 mm DIN Rail or Panel Mount Attachments
Dimensions 3.0 x 9.7 x 14.0 cm (1.2 x 3.8 x 5.5 in)
