5 & 8 Port, compact Industrial
ethernet switches
ESW205 & ESW208 Series
Fiber Optics
Fiber type Distance Wavelength transmit power
receive
sensitivity
Multi-mode 2 km 1310 nm Neg. 23.5 to Neg. 14 dBm ≤ Neg. 35 dBm
Single-mode 20 km 1310 nm Neg. 15 to Neg. 8 dBm ≤ Neg. 35 dBm
regulatOry apprOvals
CE, FCC, RoHS
HazarDOus lOcatiOns
UL/cUL Class I Div 2 Groups A,B,C, and D
sPecIFIcAtIons
technology
Standards: IEEE802.3, 802.3u, 802.3x
Processing Type:
Store and forward with IEEE802.3x full duplex,
non-blocking flow control
Flow Control: IEEE802.3x flow control, back pressure flow control
Packet buffer memory: 64K bytes
Address Table Size 2K MAC Addresses
interFace
RJ45 Ports:
10/100BaseT(X) auto negation, Full/Half duplex, auto
MDI/MD-X
Fiber Ports:
100BaseFX, (multi-mode or single–mode with LC
connectors)
LED Indicators: Power, (Link / Speed / Activity for each port)
Power
Input Voltage 12 to 36 VDC and 10 to 24 VAC
Power Consumption 4.00 W Max
Input Connection Removable Terminal Block
Protection Reverse Polarity Protection
enVironMental
Operating Temperature -10 to 60°C (14 to 140°F)
Wide Temperature
(-T Model)
-40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 80°C (-40 to 176°F)
Humidity 10 to 95% Non-condensing
MTBF 200,000 hours
MTBF Calculation Parts count reliability prediction
Mechanical
Enclosure IP30 DIN mount metal case
Dimensions (5 ports)
H 112mm x W 30mm x D 75.2 mm
(4.41 in x 1.18 in x 2.96 in)
Dimensions (8 ports)
8 copper,
6 copper/2 fiber ports
H 130 mm x W 44 mm x D 105 mm
(5.1 in x 1.73 in x 4.13 in)
Dimensions (8 ports)
4 copper/4 fiber ports
H 130mm x W 44mm x D 105mm
(5.1 in X 1.7 in x 4.13 in)
Installation 35 mm DIN or 6 way panel mount
sPeciFications–leVel 3, en 61000-6-2: 2006
generic standards For (heaVy) industrial enVironMents
test description test level level
EN 55022: 2006 +
A1:2007
Class B Emissions
EN 61000-4-2: 2009 Electro-Static
Discharge (ESD)
Enclosure
Contact
6kV
3
Enclosure Air 8kV 3
EN61000-4-
3:2006+A1:2008
Radiated Field
Immunity (RFI)
Enclosure
Ports
10V/m
3
EN61000-4-4:2004 Burst (Fast Transient) Signal Ports [email protected] 3
DC Ports 2kV 3
EN61000-4-5:2006 Surge
Signal Ports 1kV 3
DC Power
Ports
2kV
3
EN61000-4-6: 2009 Induced (Conductive)
RFI
Signal Ports 10 V RMS 3
DC Power
Ports
10 V RMS
3
test descriPtion test leVel leVel
IEC60068-2-6 Vibration
Test Fc 2G
-----
IEC60068-2-27 Shock
Test Ea 30G
-----
IEC 60068-2-32 Free Fall -----
envIronmentAl sPecIFIcAtIons

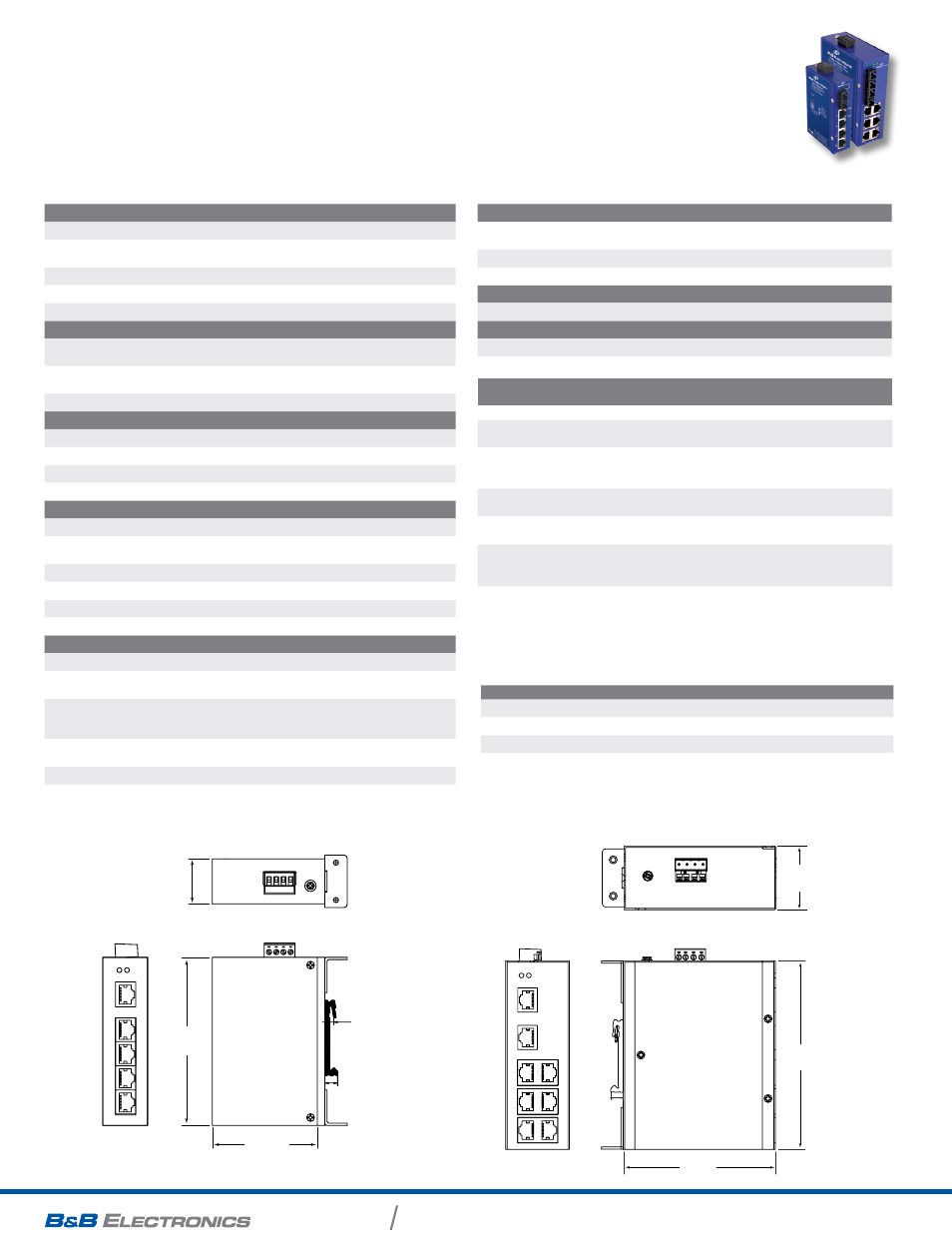

mechAnIcAl dIAgrAm -
esw205 model
mechAnIcAl dIAgrAm -
esw208 model
ESW205 series
3.0 cm
1.18 in
7.52 cm
2.96 in
Optional
11.2 cm
4.41 in
ESW208 series - 8 copper ports
4.4 cm
1.73 in
13.0 cm
5.12 in
10.5 cm
4.13 in
