Flange Mount A B C F W U S Z H L
AMU864F 8.05 6.27 4.13 4.11 6.72 8.50 6.25 4.25 4.00
8.88
8.75
204 mm 159 mm 105 mm 104 mm 171 mm 216 mm 159 mm 108 mm 102 mm
226 mm
222mm
Foot Mount A B C F W U S Z D E M N
AMU864 8.05 6.27 4.13 4.11 6.72 8.50 6.25 4.25 8.75 4.91 6.69 6.97
204 mm 159 mm 105 mm 104 mm 171 mm 216 mm 159 mm 108 mm 222 mm 125 mm 170 mm 177 mm

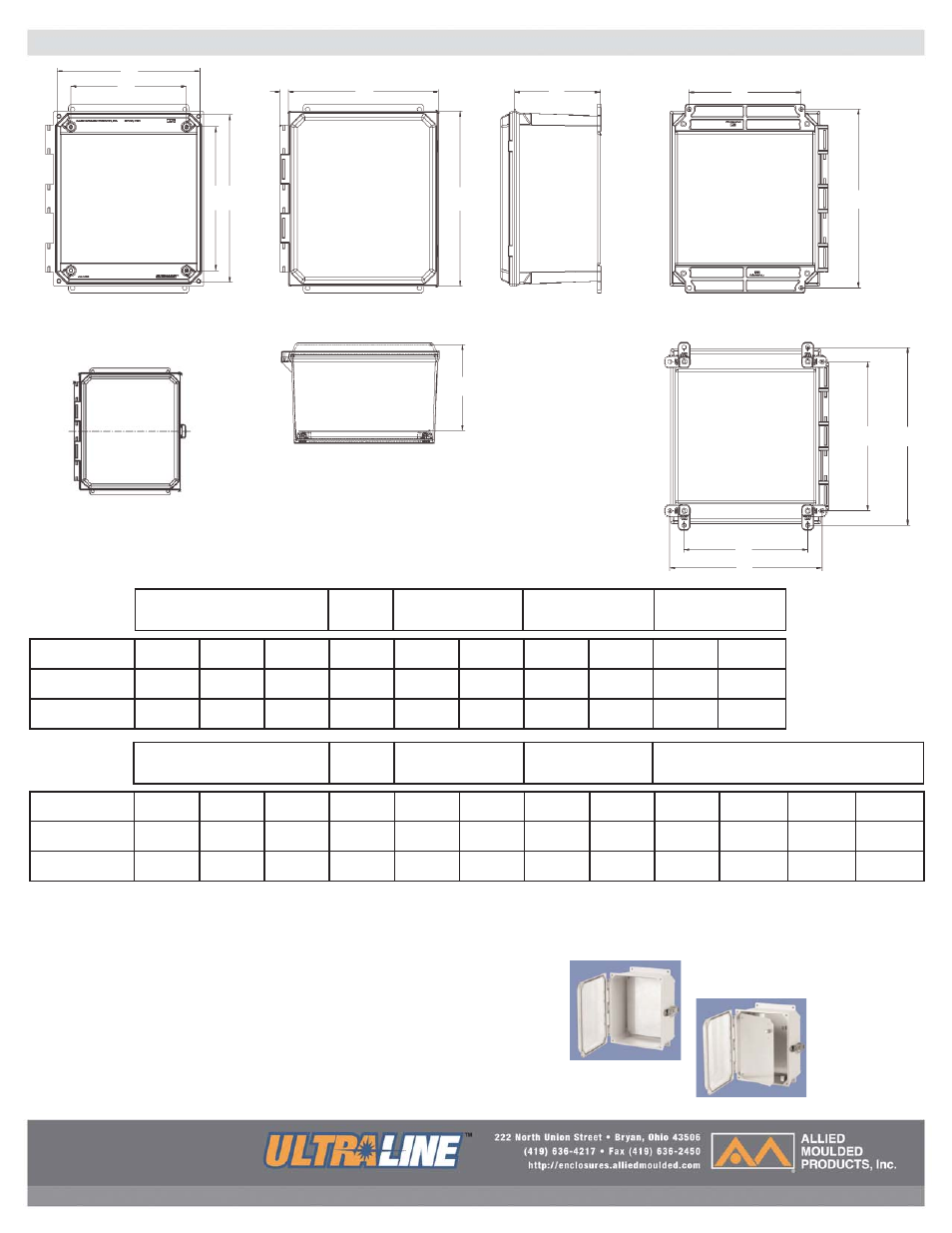

AMU864, NEMA Type 4X, Fiberglass Reinforced Polyester Enclosure
Flange Mount
Foot Mount
A C C E S S O R I E S A C C E S S O R I E S
• Enclosure back panels
- P86 white painted carbon steel
- PA86 aluminum
- PF86 fiberglass reinforced polyester
• Enclosure hinged dead front panel
- HFPU86 aluminum (field installable kit)
Latch Location
On Vertical C/L
Optional Viewing Window Dimension (Centered in Cover): 4.25 in (108 mm) x 4.25 in (108 mm)
Nominal Wall Thickness - 0.125 in (3 mm)
Enclosure Size
Usable
Depth
Cover Panel Boss Vert. Foot Mount Horiz. Foot Mount
Enclosure Size
Usable
Depth
Cover Panel Boss Flange Mount
UL864spec806
B
Z
W
A S U
0.562 C H
L
M D
E
N
F
