MAX1126
Quad, 12-Bit, 40Msps, 1.8V ADC with
Serial LVDS Outputs
______________________________________________________________________________________ 13

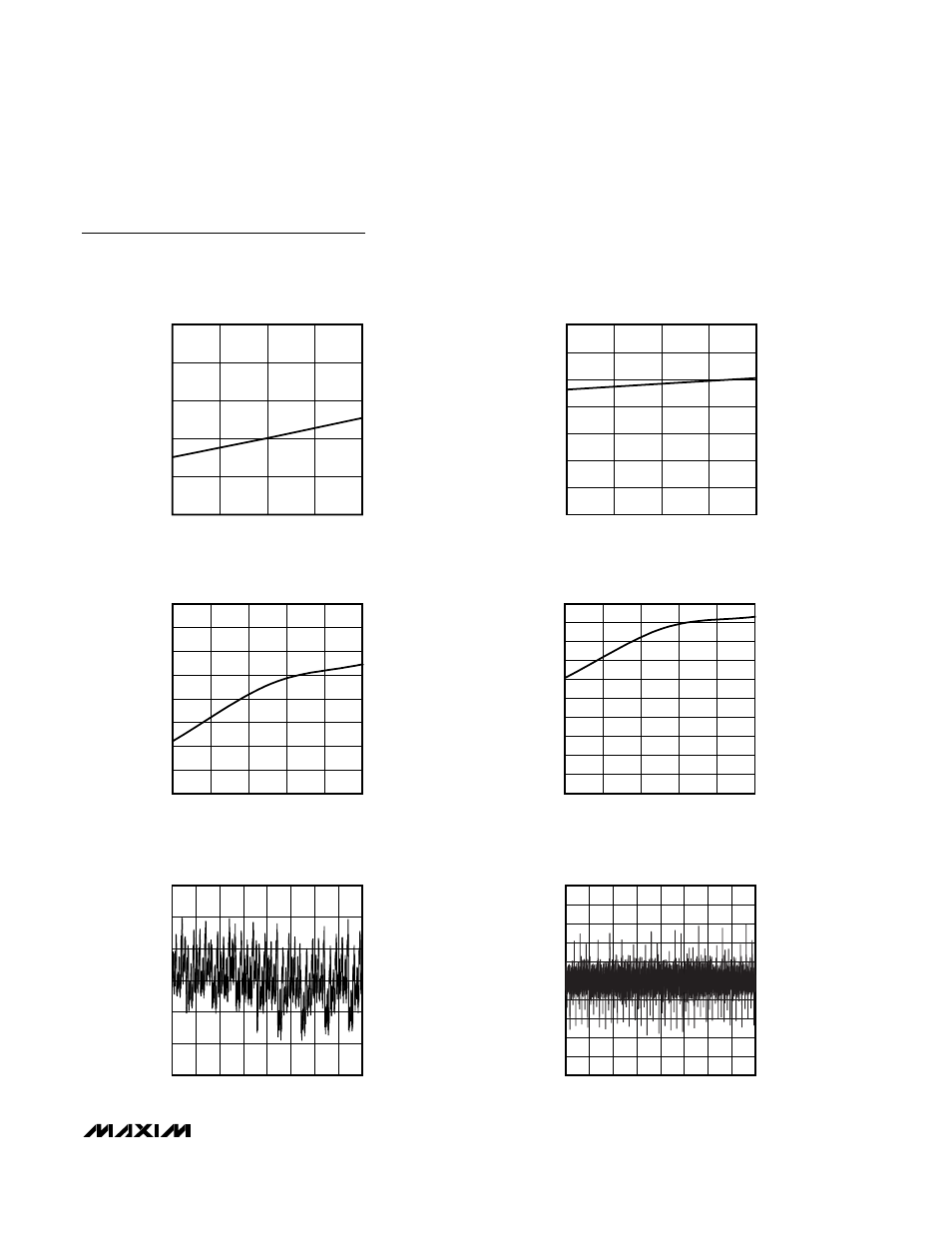

ANALOG SUPPLY CURRENT
vs. SAMPLING RATE
f CLK (MHz)
I AVDD
(mA)
MAX1126 toc28
240
250
230
260
270
220
35 30 25 20 40
DIGITAL SUPPLY CURRENT
vs. SAMPLING RATE
f CLK (MHz)
I OVDD
(mA)
MAX1126 toc29
20
40
10
60
30
50
70
0
35 30 25 20 40
OFFSET ERROR
vs. TEMPERATURE
TEMPERATURE (°C)
OFFSET ERROR (%FS)
-15 10 60 35 -40 85
MAX1126 toc30
-0.015
-0.010
-0.005
0
0.005
0.010
0.015
0.020
-0.020
GAIN ERROR
vs. TEMPERATURE
TEMPERATURE (°C)
GAIN ERROR (%FS)
-15 10 60 35
0.6
0.8
0.4
0.2
0.5
0.7
0.3
0.1
0.9
1.0
0
-40 85
MAX1126 toc31
INTEGRAL NONLINEARITY
vs. DIGITAL OUTPUT CODE
MAX1126 toc32
DIGITAL OUTPUT CODE
INL (LSB)
3584 3072 2560 2048 1536 1024 512
-0.4
-0.2
0
0.2
0.4
0.6
-0.6
0 4096
DIFFERENTIAL NONLINEARITY
vs. DIGITAL OUTPUT CODE
MAX1126 toc33
DIGITAL OUTPUT CODE
DNL (LSB)
3584 3072 2560 2048 1536 1024 512 0 4096
-0.4
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0.4
0.5
-0.5
Typical Operating Characteristics (continued)
(AV DD = 1.8V, OV DD = 1.8V, CV DD = 1.8V, GND = 0, external V REFIO = 1.24V, INTREF = AV DD , differential input at -0.5dBFS,
f CLK = 40MHz (50% duty cycle), DT = low, C LOAD = 10pF, T A = +25°C, unless otherwise noted.)
