MAX1126
Quad, 12-Bit, 40Msps, 1.8V ADC with
Serial LVDS Outputs
20 ______________________________________________________________________________________
Frame Alignment Output (FRAMEP, FRAMEN)
The MAX1126 provides a differential frame alignment
signal that consists of FRAMEP and FRAMEN. As
shown in Figure 4, the rising edge of the frame align-
ment signal corresponds to the first bit (D0) of the
12-bit serial data stream. The frequency of the frame
alignment signal is identical to the frequency of the
sample clock.
Serial Output Data (OUT_P, OUT_N)
The MAX1126 provides its conversion results through
individual differential outputs consisting of OUT_P and
OUT_N. The results are valid 6.5 input clock cycles
after the sample is taken. As shown in Figure 3, the out-
put data is clocked out on both edges of the output
clock, LSB (D0) first. Figure 5 provides the detailed ser-
ial output timing diagram.
Output Data Format (
T
/B), Transfer Functions
The MAX1126 output data format is either offset binary
or two’s complement, depending on the logic input T/B.
With T/B low, the output data format is two’s comple-
ment. With T/B high, the output data format is offset
binary. The following equations, Table 2, Figure 6, and
Figure 7 define the relationship between the digital
output and the analog input. For two’s complement
(T/B = 0):
and for offset binary (T/B = 1):
where CODE 10 is the decimal equivalent of the digital
output code as shown in Table 2. FSR is the full-scale
range as shown in Figures 6 and 7.
Keep the capacitive load on the MAX1126 digital out-
puts as low as possible.
LVDS and SLVS Signals (SLVS/
LVDS
)
Drive SLVS/LVDS low for LVDS or drive SLVS/LVDS
high for scalable low-voltage signaling (SLVS) levels at
the MAX1126 outputs (OUT_P, OUT_N, CLKOUTP,
CLKOUTN, FRAMEP, and FRAMEN). See the Electrical
Characteristics table for LVDS and SLVS output voltage
levels.
LVDS Test Pattern (LVDSTEST)
Drive LVDSTEST high to enable the output test pattern
on all LVDS or SLVS output channels. The output test
pattern is 0000 1011 1101 MSB→LSB. As with the ana-
log conversion results, the test pattern data is output
V V FSR
CODE
IN P IN N _ _
− = Ч Ч
−
2
2048
4096
10
V V FSR
CODE
IN P IN N _ _
− = Ч Ч 2
4096
10
(V
CLKOUTP
-
V
CLKOUTN
)
(V
OUT_P
-
V
OUT_N
)
t
CH
t
CL
t OD t OD
D0 D1 D2 D3

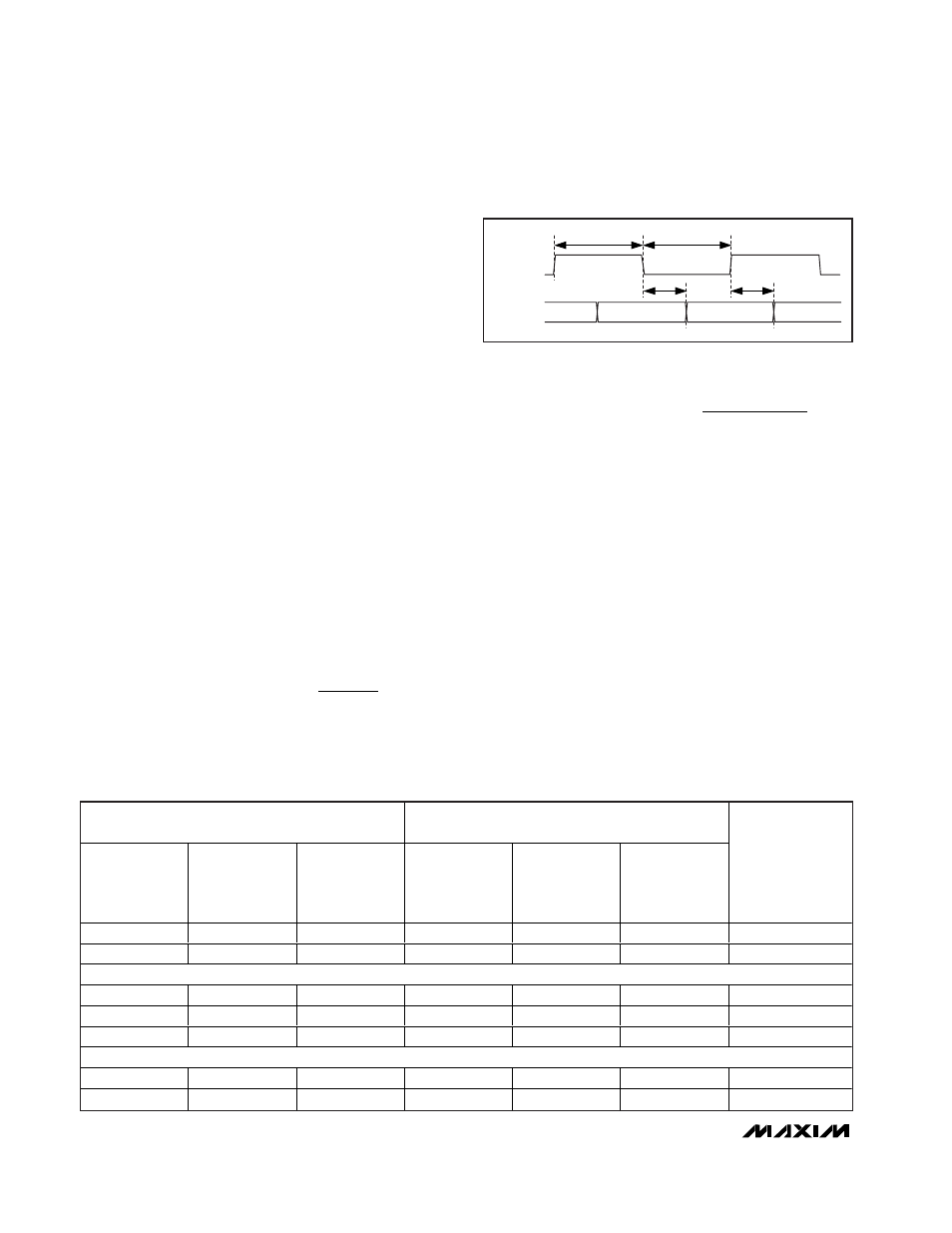

Figure 5. Serialized Output Detailed Timing Diagram
TWO’S COMPLEMENT DIGITAL OUTPUT CODE
( T /B = 0)
OFFSET BINARY DIGITAL OUTPUT CODE
( T /B = 1)
BINARY
D11 D0
HEXADECIMAL
EQUIVALENT
OF
D11 D0
DECIMAL
EQUIVALENT
OF
D11 D0
BINARY
D11 D0
HEXADECIMAL
EQUIVALENT
OF
D11 D0
DECIMAL
EQUIVALENT
OF
D11 D0
V IN_P - V IN_P (mV)
(V REFIO = 1.24V)
0111 1111 1111 0x7FF +2047 1111 1111 1111 0xFFF +4095 +699.66
0111 1111 1110 0x7FE +2046 1111 1111 1110 0xFFE +4094 +699.32
0000 0000 0001 0x001 +1 1000 0000 0001 0x801 +2049 +0.34
0000 0000 0000 0x000 0 1000 0000 0000 0x800 +2048 0
1111 1111 1111 0xFFF -1 0111 1111 1111 0x7FF +2047 -0.34
1000 0000 0001 0X801 -2047 0000 0000 0001 0x001 +1 -699.66
1000 0000 0000 0x800 -2048 0000 0000 0000 0x000 0 -700.00
Table 2. Output Code Table (V REFIO = 1.24V)
