Max2338 triple/dual-mode cdma lna/mixers, General description, Applications

General Description
The MAX2338 receiver RF front-end IC is designed for
dual-band CDMA cellular phones and can also be used
in dual-band TDMA, GSM, or EDGE cellular phones.
Thanks to the MAX2338’s on-chip low-power LO
divider, the cellular VCO module can be eliminated.
The MAX2338 includes a low-noise amplifier (LNA) with
an adjustable high-input third-order intercept point
(IIP3) to minimize intermodulation and cross-modulation
in the presence of large interfering signals. For cellular
band operation, a low-gain LNA is available for higher
cascaded IIP3 at lower current.
The CDMA mixers are designed for high linearity, low
noise, and differential IF outputs. The FM mixer is
designed for lower current and single-ended output.
The MAX2338 triple-mode LNA/mixer includes an on-
chip LO frequency divider to allow the use of a single
VCO for both bands. This device is available in an ultra-
small 28-pin leadless QFN package.
________________________Applications
Dual-Band, Triple-Mode PCS/Cellular Phones
Dual-Mode Cellular Phones
Features
♦ 1.4dB LNA Noise Figure
♦ 15dB LNA Gain
♦ Mixer Noise Figure
7.5dB (CDMA)
8.7dB (AMPS)
♦ Mixer Gain
14.5dB PCS
13.3dB Cellular
8.8dB AMPS
♦ LO Frequency Divider, Saves VCO Module
♦ LO Output Buffers for TX
♦ Ultra-Small 28-Pin Leadless Package
MAX2338
Triple/Dual-Mode CDMA LNA/Mixers
________________________________________________________________ Maxim Integrated Products
1
MAX2338
25
26
27
28
22
23
24
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
N.C.
GND
LO/2
LOIN
GND
PLOOUT
CLOOUT
CMIXIN
CLNAOUT
GND
PLNAOUT
GND
GND
PMIXIN
GND
CLNAIN
LIN
GAIN
PLNAIN
RLNA
IF-
GND
BUFFEN
V
CC
FMOUT
IF+
RBIAS
QFN
TOP VIEW
÷2
BAND
19-1807; Rev 1; 3/01
EVALUATION KIT
AVAILABLE
Ordering Information
28 QFN
PIN-PACKAGE
TEMP RANGE
-40°C to +85°C
MAX2338EGI
PART

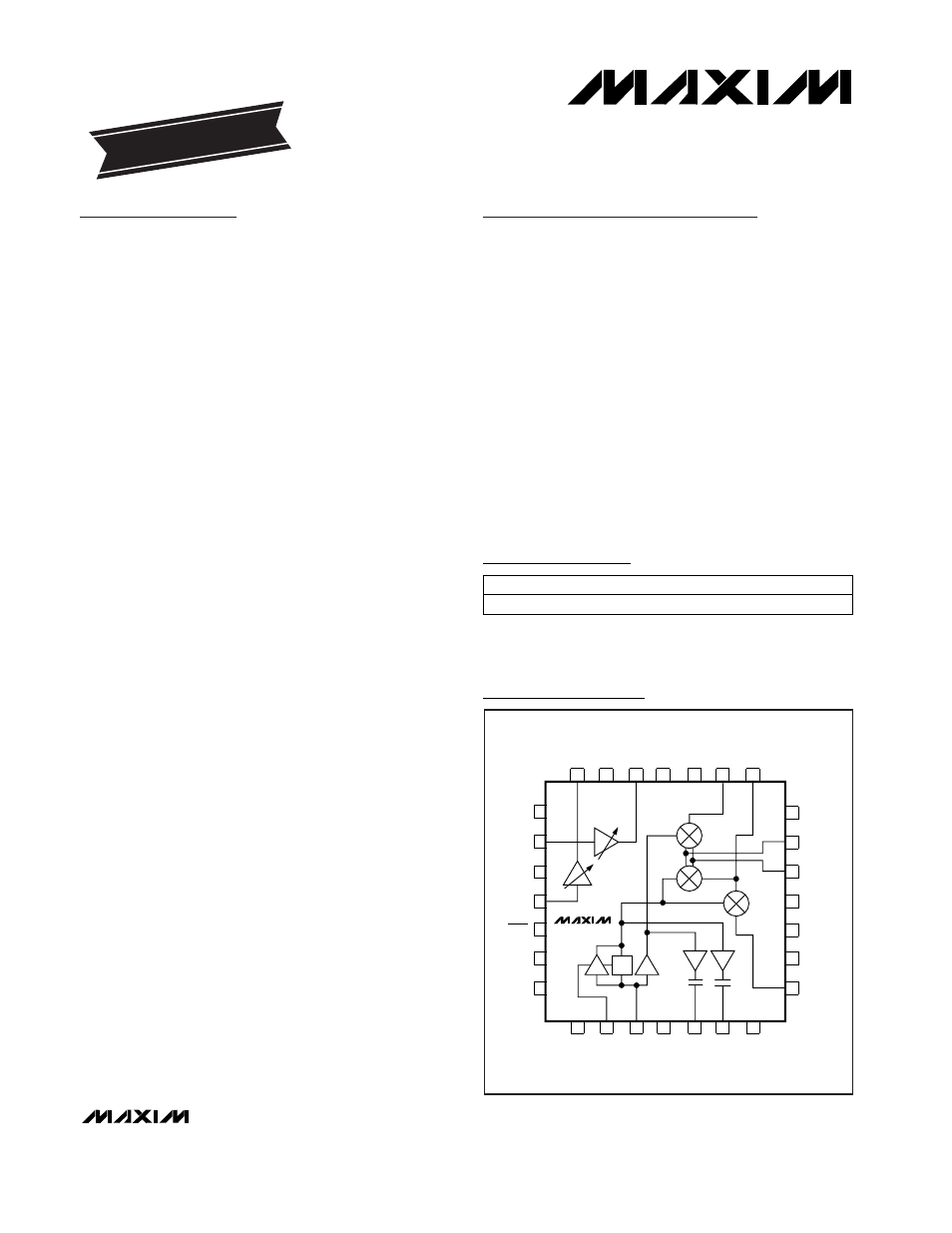

Pin Configuration/
Functional Diagram
Typical Operating Circuit appears at end of data sheet.
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
