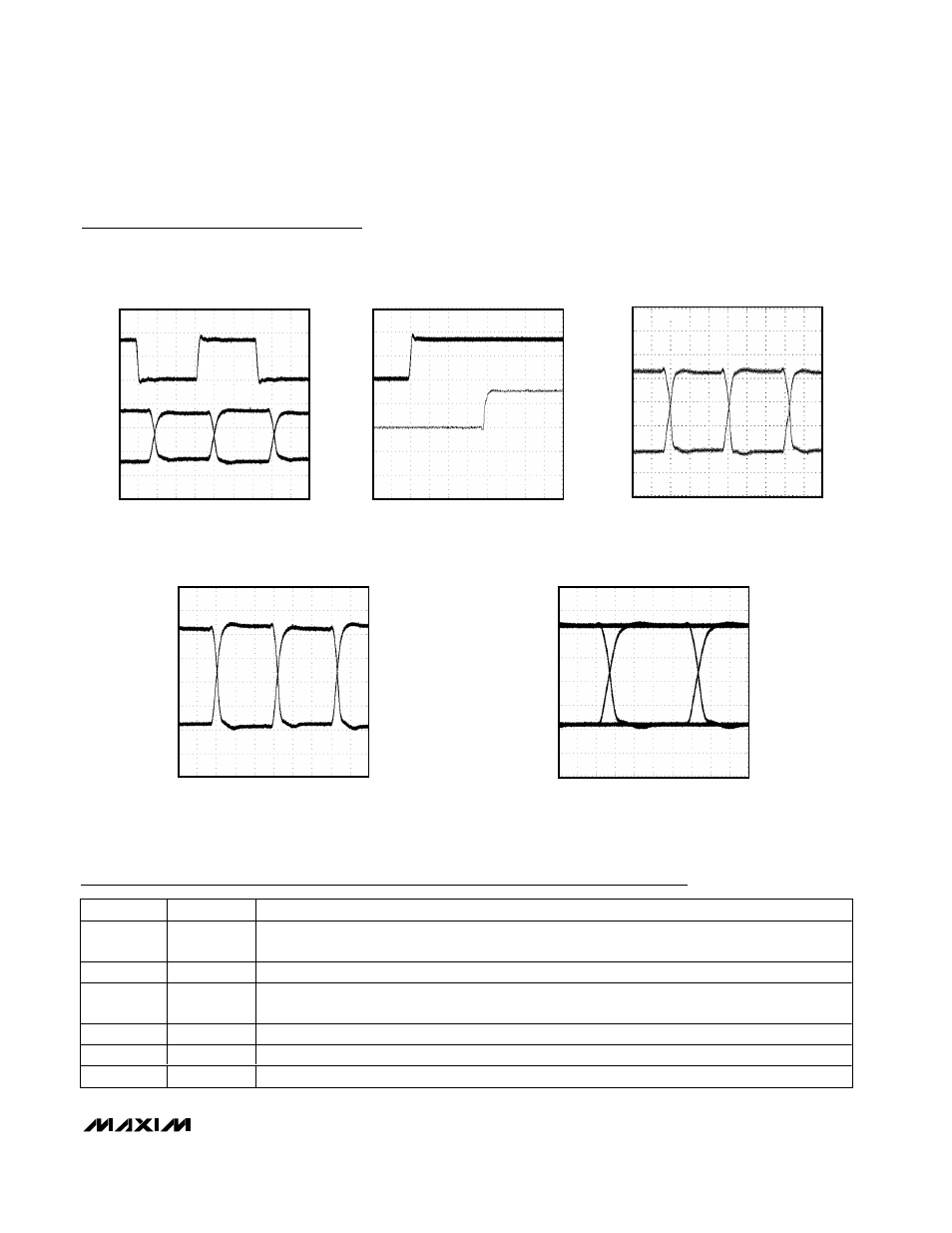

DRIVER PROPAGATION DELAY
MAX3293-95 toc10
20ns/div
Y, Z: 1V/div
DI: 2V/div
DI
0V
0V
Y, Z
Typical Operating Characteristics (continued)
(V
CC
= +3.3V, T
A
= +25°C, unless otherwise noted.)
MAX3293/MAX3294/MAX3295
20Mbps, +3.3V, SOT23 RS-485/
RS-422 Transmitters
_______________________________________________________________________________________
7
ENABLE RESPONSE TIME
MAX3293-95 toc11
40ns/div
DE
0V
0V
Y-Z
Y, Z, DE: 2V/div
UNLOADED DRIVER OUTPUT
WAVEFORM (f
IN
= 16Mbps)
MAX3293-95 toc12
20ns/div
Y, Z: 1V/div
0V
Y, Z
LOADED DRIVER OUTPUT WAVEFORM
(f
IN
= 16Mbps)
MAX3293-95 toc13
20ns/div
Y, Z: 500mV/div
0V
Y, Z
EYE DIAGRAM (f
IN
= 20Mbps)
MAX3293-95 toc14
10ns/div
Y, Z: 500mV/div
0V
Y, Z
Pin Description
PIN
NAME
FUNCTION
1
DI
Driver Input. A logic low on DI forces the noninverting output (Y) low and the inverting output (Z)
high. A logic high on DI forces the noninverting output (Y) high and the inverting output (Z) low.
2
V
CC
Positive Supply. V
CC
= +3.3V ±5%. Bypass V
CC
to GND with a 0.1µF capacitor.
3
DE
Driver Output Enable. Force DE high to enable driver. Pull DE low to disable the driver. Hot-swap
input, see the Hot-Swap Capability section.
4
Z
Inverting RS-485/RS-422 Output
5
GND
Ground
6
Y
Noninverting RS-485/RS-422 Output
