1.0 Functional Description

(Continued)

20094310

(a) Serial Bus Write to the internal Command Register followed by a the Data Byte

20094311

(b) Serial Bus Write to the Internal Command Register

20094312

(c) Serial Bus Read from a Register with the Internal Command Register preset to desired value.

20094314

(d) Serial Bus Write followed by a Repeat Start and Immediate Read

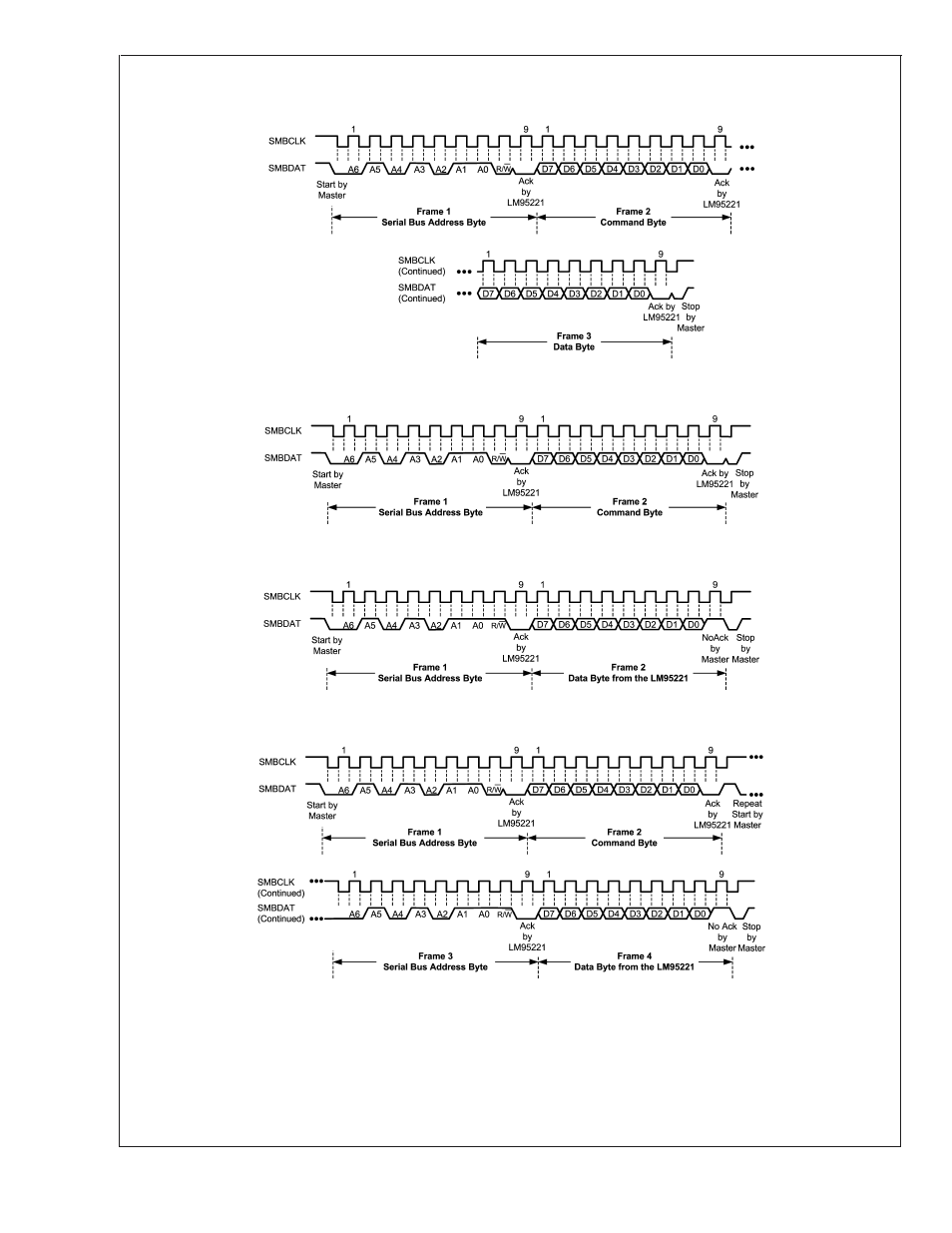

FIGURE 3. SMBus Timing Diagrams

LM95221
