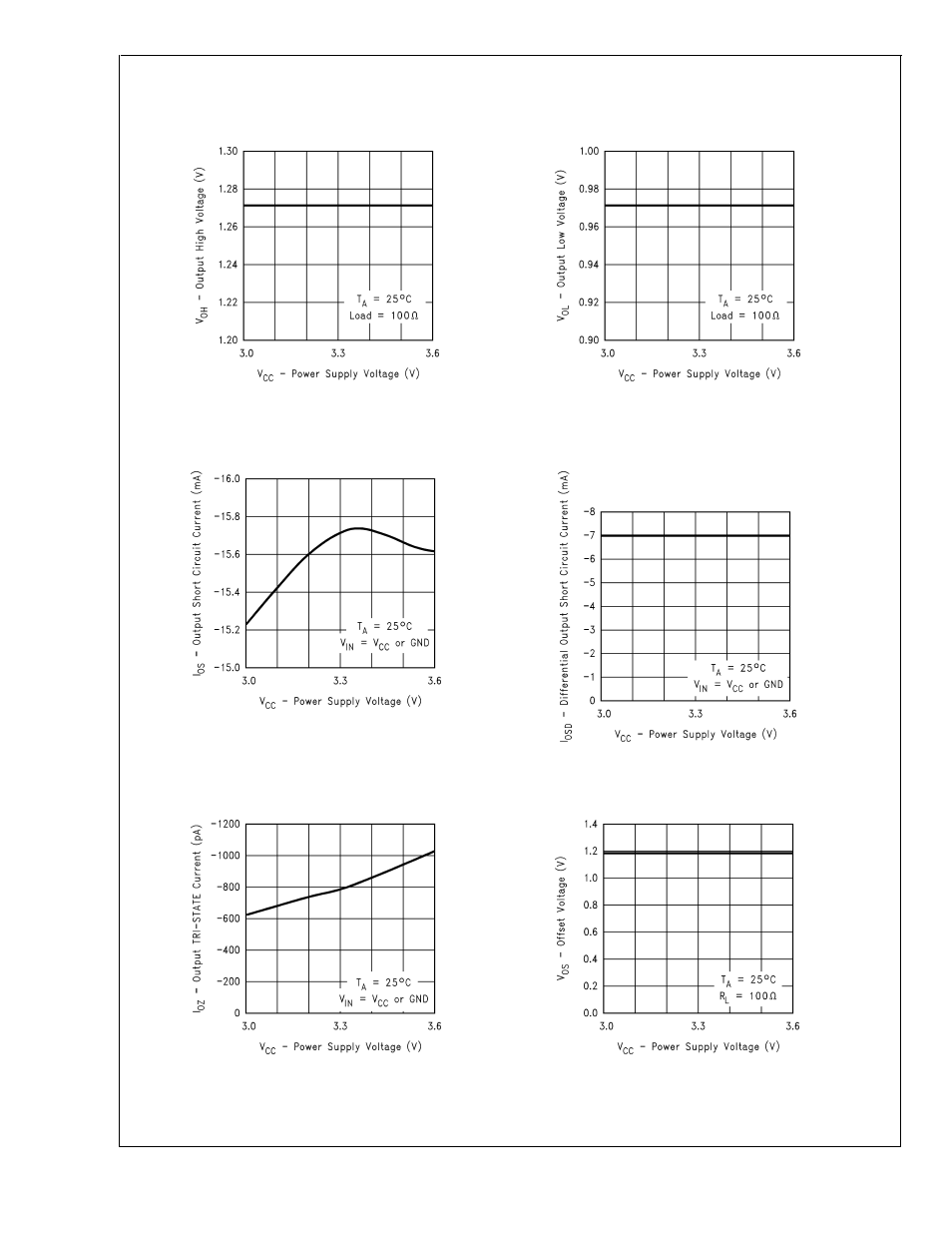

Typical Performance Curves
Output High Voltage vs
Power Supply Voltage
DS101338-16
Output Low Voltage vs
Power Supply Voltage
DS101338-17
Output Short Circuit Current vs
Power Supply Voltage
DS101338-18
Differential Output Short Circuit Current vs
Power Supply Voltage
DS101338-19
Output TRI-STATE Current vs
Power Supply Voltage
DS101338-20
Offset Voltage vs
Power Supply Voltage
DS101338-21
DS90L
V001
www.national.com
8
