DS90LV001 Pin Description (SOIC and LLP)
Pin Name
Pin #
Input/Output
Description
GND
1
P
Ground
IN −
2
I
Inverting receiver LVDS input pin
IN+
3
I
Non-inverting receiver LVDS input pin
NC
4
No Connect
V
CC
5
P
Power Supply, 3.3V
±
0.3V.
OUT+
6
O
Non-inverting driver LVDS output pin
OUT -
7
O
Inverting driver LVDS output pin
EN
8
I
Enable pin. When EN is LOW, the driver is disabled and the LVDS
outputs are in TRI-STATE. When EN is HIGH, the driver is enabled.
LVCMOS/LVTTL levels.

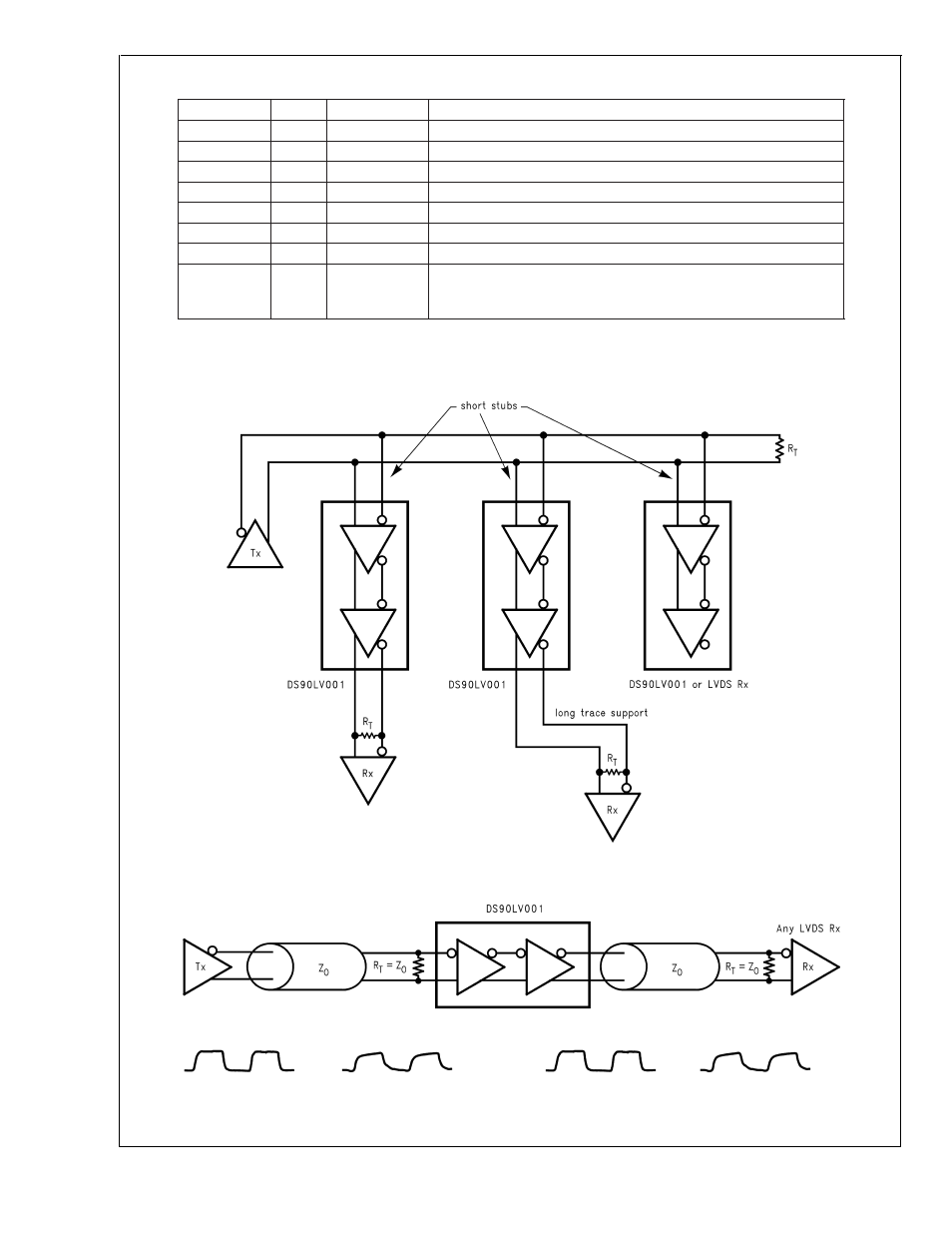

Typical Applications
Backplane Stub-Hider Application
DS101338-11
Cable Repeater Application
DS101338-10
