DS17485/DS17487
35 of 38

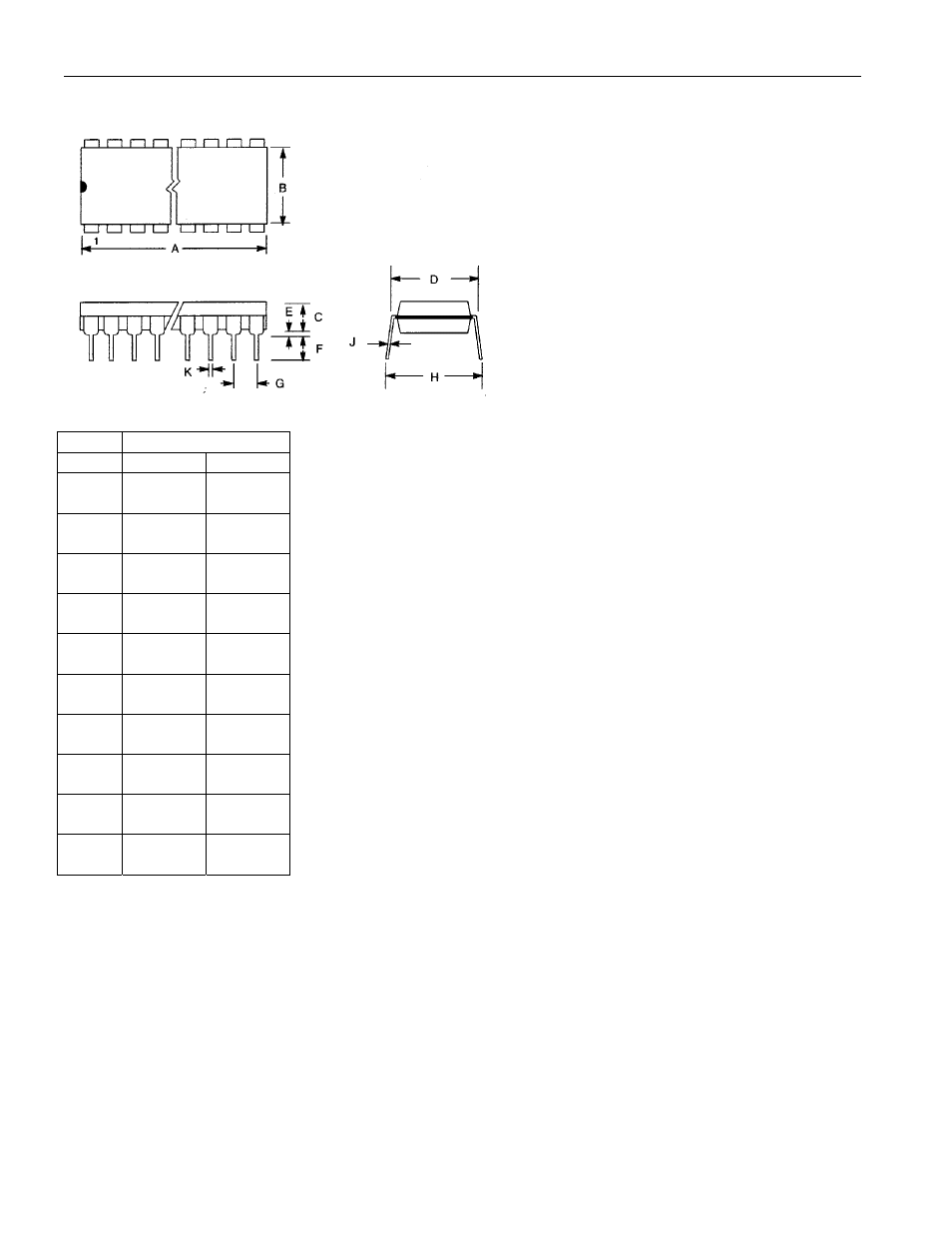

DS17485 24-PIN DIP
PKG 24-PIN
DIM MIN MAX
A IN
MM
1.245
31.62 1.270
32.25
B IN
MM
0.530
13.46 0.550
13.97
C IN
MM
0.140
3.56
0.160
4.06
D IN
MM
0.600
15.24 0.625
15.88
E IN
MM
0.015
0.380 0.050
1.27
F IN
MM
0.120
3.05
0.145
3.68
G IN
MM
0.090
2.29
0.110
2.79
H IN
MM
0.625
15.88 0.675
17.15
J IN
MM
0.008
0.20
0.012
0.30
K IN
MM
0.015
0.38
0.022
0.56
