Test Circuits and Timing Waveforms
(Continued)
10133604

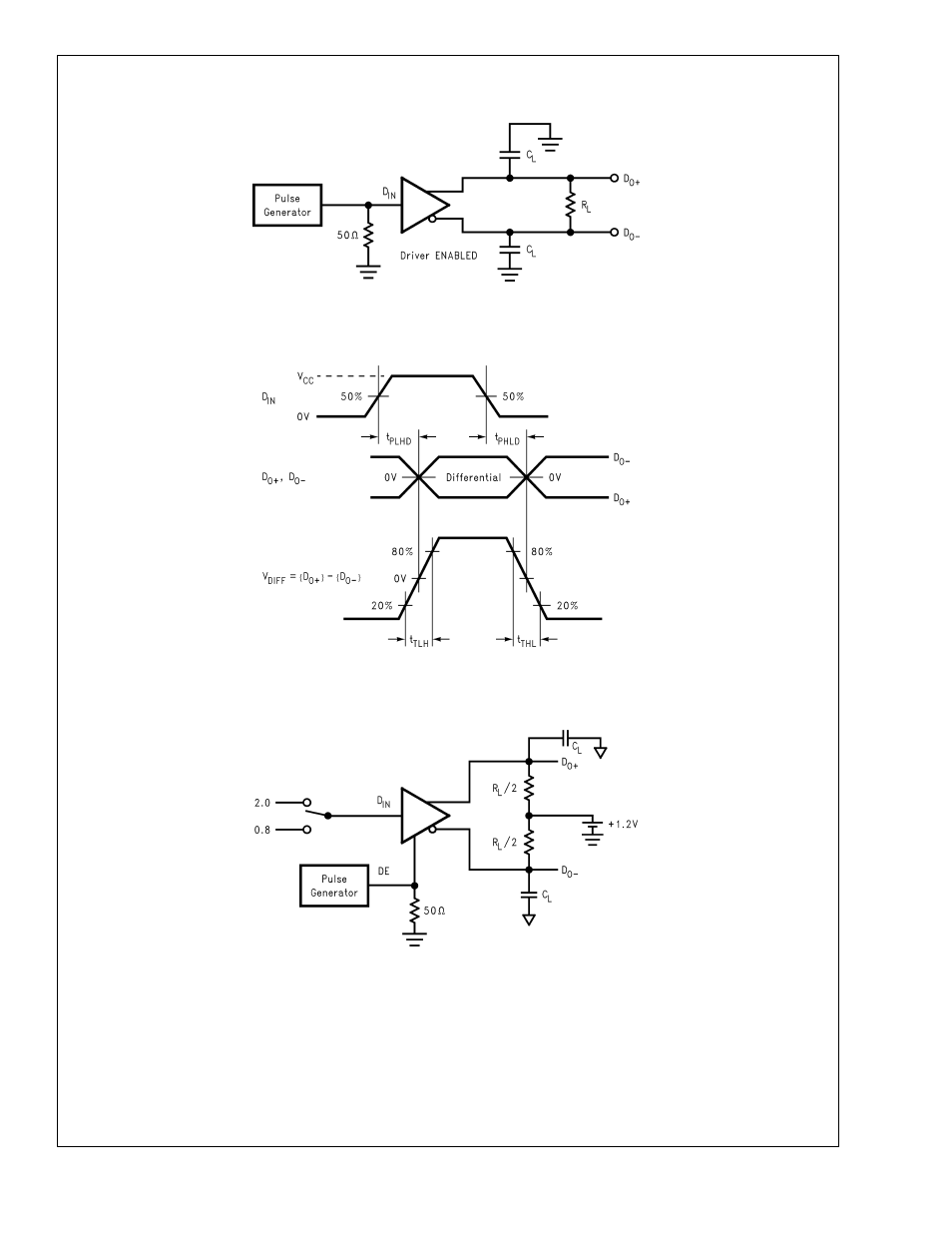

FIGURE 2. Differential Driver Propagation Delay and Transition Time Test Circuit
10133605
FIGURE 3. Differential Driver Propagation Delay and Transition Time Waveforms
10133606
FIGURE 4. Driver TRI-STATE Delay Test Circuit
DS92L
V040A
www.national.com 7
