Ds2405 addressable switch, Features, Pin assignment

1 of 15
110501
FEATURES
§ Open-drain PIO pin is controlled by
matching 64-bit, laser-engraved registration
number associated with each device
§ Logic level of open drain output can be
determined over 1-Wire
®
bus for closed-loop
control
§ PIO pin sink capability is greater than 4mA
at 0.4V
§ Multiple DS2405s can be identified on a
common 1-Wire bus and be turned on or off
independent of other devices on the bus
§ Unique, factory-lasered and tested 64-bit
registration number (8-bit family code +48-
bit serial number +8-bit CRC tester) assures
absolute identity because no two parts are
alike
§ Built-in multidrop controller ensures
compatibility with other MicroLAN products
§ Reduces control, address, data, and power to
a single data pin
§ Directly connects to a single port pin of a
microprocessor and communicates at up to
16.3kbits/s
§ 8-bit family code specifies DS2405
communications requirements to reader
§ 8-bit cyclic redundancy check ensures error-
free selection
§ Zero standby power required
§ Low cost TO-92, SOT-223, or 6-pin TSOC
surface mount package
§ 1-Wire communication operates over a wide
voltage range of 2.8V to 6.0V from -40°C to
+85°C

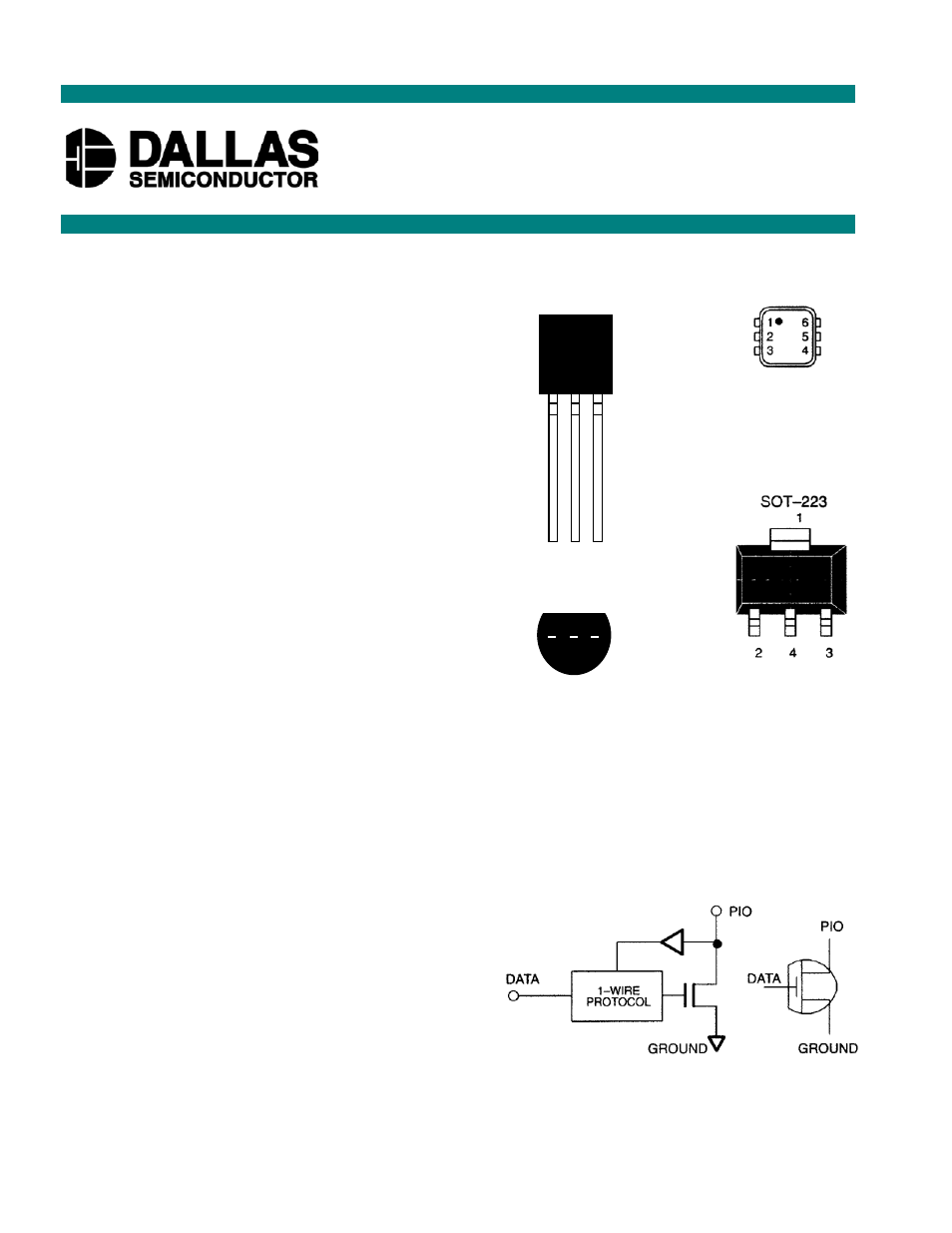

PIN ASSIGNMENT
TSOC PACKAGE
PIN DESCRIPTION TSOC
Pin 1 - Ground
Pin 1 - Ground
Pin 2 - Data
Pin 2 - Data
Pin 3 - PIO
Pin 3 - PIO
Pin 4 - Ground
Pin 4-6 -No Connect
DS2405
Addressable Switch
www.maxim-ic.com
TOP VIEW
TOP VIEW
3.7 X 4.0 X 1.5
GND
DATA
PIO
NC
NC
NC
BOTTOM VIEW
See Mech.
Drawings Section
TO-92
DS2405
2 3
1
1 2 3
