General Description
The MAX9218 digital video serial-to-parallel converter
deserializes a total of 27 bits during data and control
phases. In the data phase, the LVDS serial input is con-
verted to 18 bits of parallel video data and in the control
phase, the input is converted to 9 bits of parallel control
data. The separate video and control phases take
advantage of video timing to reduce the serial data rate.
The MAX9218 pairs with the MAX9217 serializer to form
a complete digital video transmission system.
Proprietary data decoding reduces EMI and provides
DC balance. The DC balance allows AC-coupling, pro-
viding isolation between the transmitting and receiving
ends of the interface. The MAX9218 features a selec-
table rising or falling output latch edge.
ESD tolerance is specified for ISO 10605 with ±10kV
contact discharge and ±30kV air discharge.
The MAX9218 operates from a +3.3V core supply and
features a separate output supply for interfacing to 1.8V
to 3.3V logic-level inputs. This device is available in 48-
lead Thin QFN and TQFP packages and is specified
from -40°C to +85°C.
Applications
Navigation System Display
In-Vehicle Entertainment System
Video Camera
LCD Displays
Features
♦ Proprietary Data Decoding for DC Balance and
Reduced EMI
♦ Control Data Deserialized During Video Blanking
♦ Five Control Data Inputs Are Single Bit-Error
Tolerant
♦ Output Transition Time Is Scaled to Operating
Frequency for Reduced EMI
♦ Staggered Output Switching Reduces EMI
♦ Output Enable Allows Busing of Outputs
♦ Clock Pulse Stretch on Lock
♦ Wide ±2% Reference Clock Tolerance
♦ Synchronizes to MAX9217 Serializer Without
External Control
♦ ISO 10605 ESD Protection
♦ Separate Output Supply Allows Interface to 1.8V
to 3.3V Logic
♦ +3.3V Core Power Supply
♦ Space-Saving Thin QFN and TQFP Packages
♦ -40°C to +85°C Operating Temperature
MAX9218
27-Bit, 3MHz-to-35MHz
DC-Balanced LVDS Deserializer
________________________________________________________________ Maxim Integrated Products
1
RGB_OUT7
RGB_OUT6
RGB_OUT5
RGB_OUT4
RGB_OUT3
RGB_OUT2
RGB_OUT1
RGB_OUT0
PCLK_OUT
LOCK
V
CCO
V
CCO
GND
R/F
RNG1
V
CCLVDS
IN+
IN-
LVDS GND
PLL GND
V
CCPLL
RNG0
GND
V
CC
REFCLK
1
2
3
4
5
6
7
8
9
10
11
12
36
35
34
33
32
31
30
29
28
27
26
25
PWRDWN
OUTEN
CNTL_OUT0
CNTL_OUT1
CNTL_OUT2
CNTL_OUT3
CNTL_OUT4
CNTL_OUT5
CNTL_OUT6
CNTL_OUT7
CNTL_OUT8
DE_OUT
TQFP
MAX9218
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
RGB_OUT17
RGB_OUT16
RGB_OUT15
RGB_OUT14
RGB_OUT13
RGB_OUT12
RGB_OUT11
RGB_OUT10
RGB_OUT9
RGB_OUT8
V
CCO
V
CCO
GND
RGB_OUT7
RGB_OUT6
RGB_OUT4
RGB_OUT3
RGB_OUT0
PCLK_OUT
LOCK
V
CCO
GND
V
CCO
RGB_OUT2
RGB_OUT1
RGB_OUT5
V
CCLVDS
IN+
IN-
LVDS GND
PLL GND
V
CCPLL
RNG0
REFCLK
GND
V
CC
RNG1
R/F
1
2
3
4
5
6
7
8
9
10
11
12
36
35
34
33
32
31
30
29
28
27
26
25
CNTL_OUT2
CNTL_OUT3
CNTL_OUT4
CNTL_OUT6
DE_OUT
CNTL_OUT8
CNTL_OUT7
CNTL_OUT1
CNTL_OUT0
OUTEN
PWRDWN
RGB_OUT16
RGB_OUT15
RGB_OUT14
RGB_OUT13
RGB_OUT12
RGB_OUT11
RGB_OUT10
RGB_OUT9
RGB_OUT8
V
CCO
GND
V
CCO
RGB_OUT17
THIN QFN-EP
MAX9218
CNTL_OUT5
TOP VIEW
48
47
46
45
44
43
42
41
40
39
38
37
13
14
15
16
17
18
19
20
21
22
23
24
PART
TEMP RANGE
PIN-PACKAGE
PKG
CODE
MAX9218ECM
-40
°C to +85°C 48 TQFP
C48-5
MAX9218ETM
-40
°C to +85°C 48 Thin QFN-EP*
T4866-1

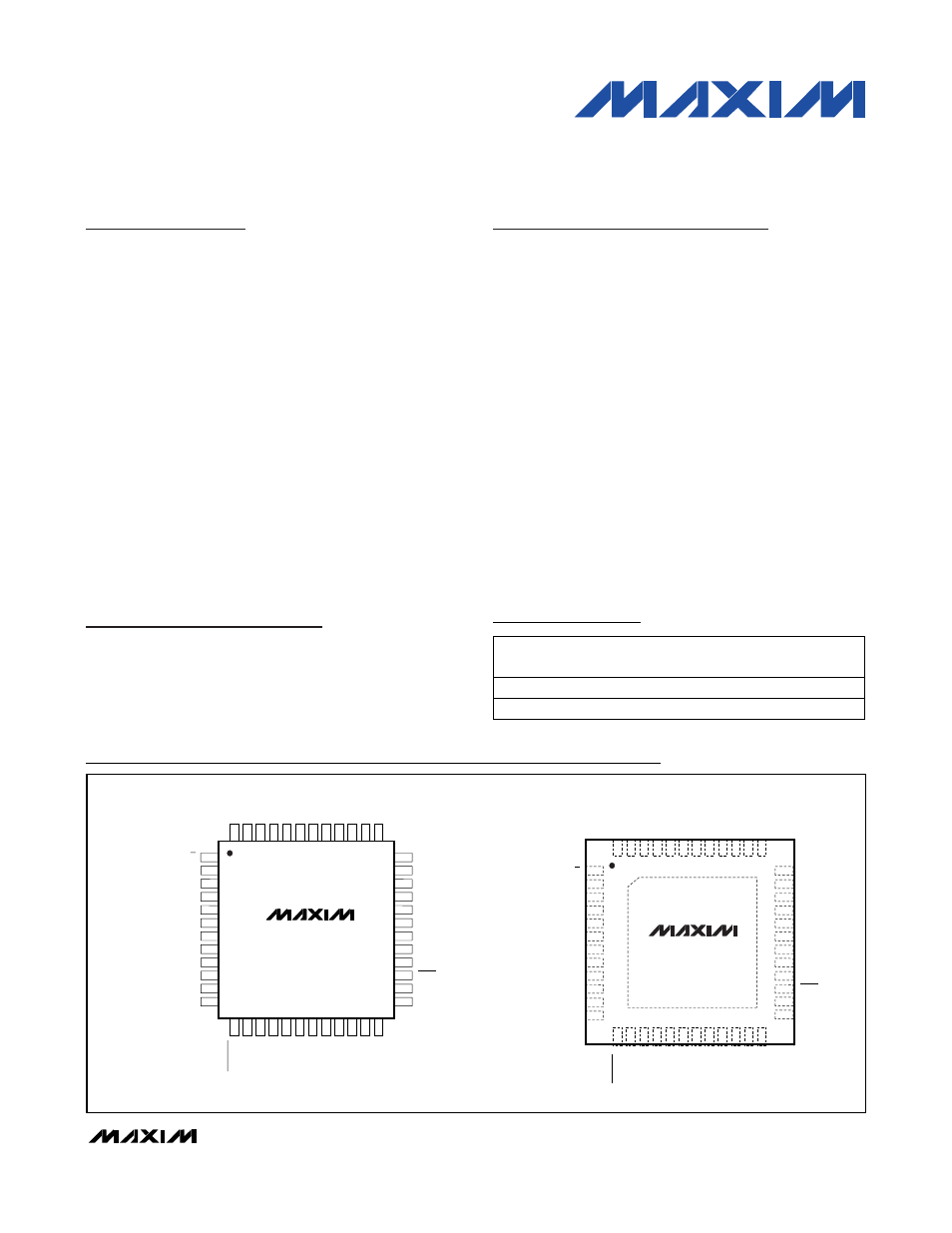

Pin Configurations
Ordering Information
19-3557; Rev 1; 4/05
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
*EP = Exposed pad.
