General Description

The MAX13042E–MAX13045E 4-channel, bidirectional
level translators provide the level shifting necessary for
100Mbps data transfer in multivoltage systems. The
MAX13042E–MAX13045E are ideally suited for level
translation in systems with four channels. Externally
applied voltages, V

CC

and V

L

, set the logic levels on

either side of the device. Logic signals present on the
V

L

side of the device appear as a high-voltage logic

signal on the V

CC

side of the device and vice-versa.

The MAX13042E–MAX13045E operate at full speed
with external drivers that source as little as 4mA output
current or larger. Each input/output (I/O) channel is
pulled up to V

CC

or V

L

by an internal 30µA current

source, allowing the MAX13042E–MAX13045E to be
driven by either push-pull or open-drain drivers.

The MAX13042E–MAX13045E feature an enable (EN)
input that places the devices into a low-power shutdown
mode when driven low. The MAX13042E–MAX13045E
feature an automatic shutdown mode that disables the
part when V

CC

is less than V

L

. The state of I/O V

CC_

and

I/O V

L_

during shutdown is chosen by selecting the

appropriate part version. (See the Ordering Information/
Selector Guide
).

The MAX13042E–MAX13045E operate with V

CC

volt-

ages from +2.2V to +3.6V and V

L

voltages from +1.62V

to +3.2V, making them ideal for data transfer between
low-voltage ASIC/PLDs and higher voltage systems.
The MAX13042E–MAX13045E are available in 12-bump
UCSP™ (1.54mm x 2.12mm) and 14-pin TDFN (3mm x
3mm) packages, and operate over the extended -40°C
to +85°C temperature range.

Applications

Features

Compatible with 4mA Input Drivers or Larger
100Mbps Guaranteed Data Rate
Four Bidirectional Channels
Enable Input
±15kV ESD Protection on I/O V

CC_

Lines

+1.62V V

L

+3.2V and +2.2V V

CC

+3.6V

Supply Voltage Range

12-Bump UCSP (1.54mm x 2.12mm) and

14-Pin TDFN (3mm x 3mm) Lead-Free Packages

MAX13042E–MAX13045E

1.62V to 3.6V Improved High-Speed LLT

________________________________________________________________ Maxim Integrated Products

1

19-0792; Rev 0; 4/07

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

Ordering Information/Selector Guide

GND

GND

GND

+1.8V

SYSTEM

CONTROLLER

+3.3V

SYSTEM

V

L

V

CC

I/O V

L_

I/O V

CC_

DATA

DATA

+3.3V

+1.8V

EN

EN

1

µF

0.1

µF

0.1

µF

MAX13042E–

MAX13045E

4

4

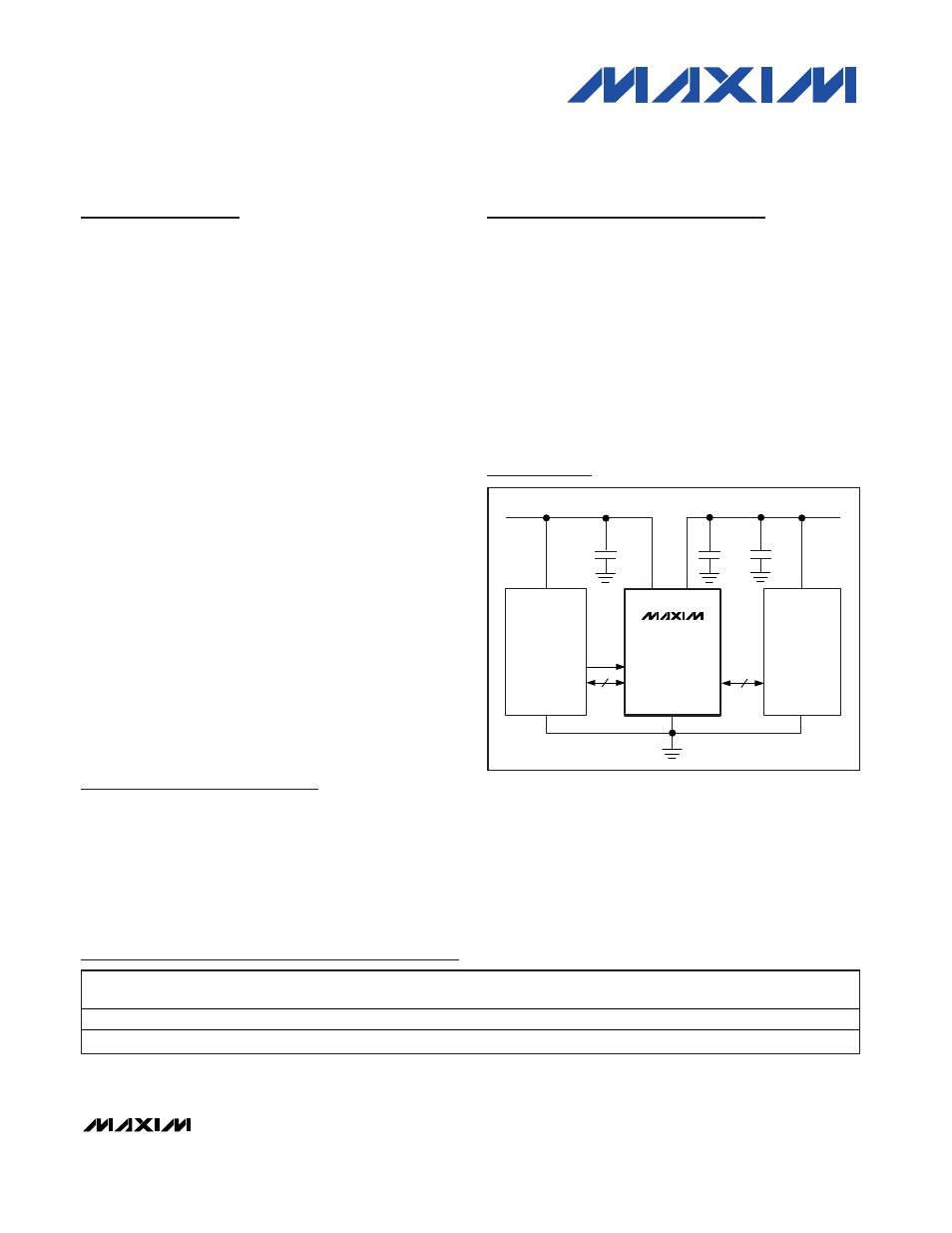

Typical Operating Circuit

PART

PIN-
PACKAGE

I/O V

L_

STATE DURING

SHUTDOWN

I/O V

CC_

STATE DURING

SHUTDOWN

TOP

MARK

PKG CODE

MAX13042EEBC+T

12 UCSP-12

High Impedance

High Impedance

ADQ

B12-3

MAX13042EETD+T

14 TDFN-EP**

High Impedance

High Impedance

ADE

T1433-2

Note: All devices operate over the -40°C to +85°C temperature
range.
+Denotes a lead-free package.

*Future product—contact factory for availability.
**EP = Exposed paddle.

Pin Configurations appear at end of data sheet.

UCSP is a trademark of Maxim Integrated Products, Inc.
SPI is a trademark of Motorola, Inc.
MICROWIRE is a trademark of National Semiconductor Corp.

Ordering Information/Selector Guide continued at end of
data sheet.

CMOS Logic-Level
Translation

Low-Voltage ASIC Level
Translation

Cell Phones

SPI™, MICROWIRE™
Level Translation

Portable POS Systems

Portable Communication
Devices

GPS

Telecommunications
Equipment
