MAX13223E

AutoShutdown

The MAX13223E achieves 1µA supply current with
Maxim’s AutoShutdown feature, which operates when
FORCEON is low and FORCEOFF is high. When the
device senses no valid signal levels on both receiver
inputs for > 30µs (typ), the onboard charge pump and
drivers are shut off, reducing supply current to 1µA.
This occurs if the RS-232 cable is disconnected or the
connected peripheral transmitters are turned off. The
device turns on again when a valid level is applied to
either RS-232 receiver input. As a result, the system
saves power. Table 2 summarizes the MAX13223E’s
operating modes. FORCEON and FORCEOFF override

AutoShutdown. When neither control is asserted, the IC
selects between these states automatically, based on
receiver input levels. Figure 6a shows the input levels
and Figure 6b shows the timing diagram for
AutoShutdown operation.

Software-Controlled Shutdown

If direct software control is desired, INVALID can be
used to indicate a DTR or Ring indicator signal.
Connect FORCEOFF and FORCEON together to bypass
AutoShutdown; therefore, the line acts as a SHDN input.

±70V Fault-Protected, 3.0V to 5.5V,
2Tx/2Rx RS-232 Transceiver

8

_______________________________________________________________________________________

MAX13223E

UART

FORCEON

FORCEOFF

POWER-

MANAGEMENT

UNIT OR CPU

INVALID

RS-232

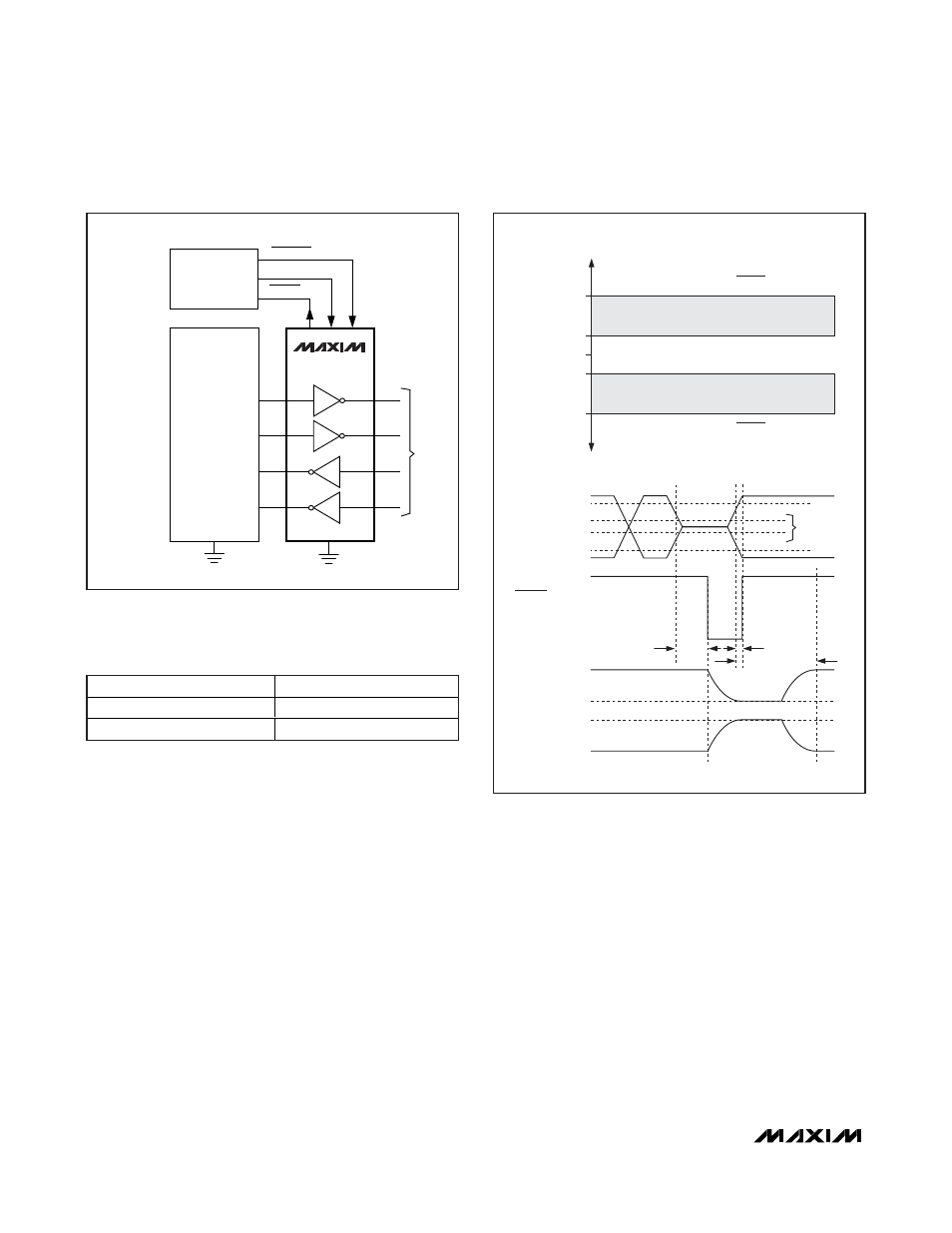

Figure 5. Interface Under Control of PMU

Table 1. Receiver Control Truth Table

EN

R_OUT

0

Active

1

High Impedence

RECEIVER INPUT

AutoShutdown, TRANSMITTER DISABLED,

1

µA SUPPLY CURRENT

-2.7V

b)

a)

-0.3V

+2.7V

+0.3V

0

INDETERMINATE

INDETERMINATE

TRANSMITTER ENABLED, INVALID HIGH

TRANSMITTER ENABLED, INVALID HIGH

t

INVL

t

INVH

t

WU

V+

V-

0

+2.7V

+0.3V

-0.3V

-2.7V

0

V

CC

V

CC

RECEIVER

INPUT

VOLTAGE

(V)

INVALID

OUTPUT

(V)

INVALID
REGION

Figures 6a and 6b. Trip Levels for Entering and Exiting
AutoShutdown
