TH7813A/TH7814A

1990A–IMAGE–05/02

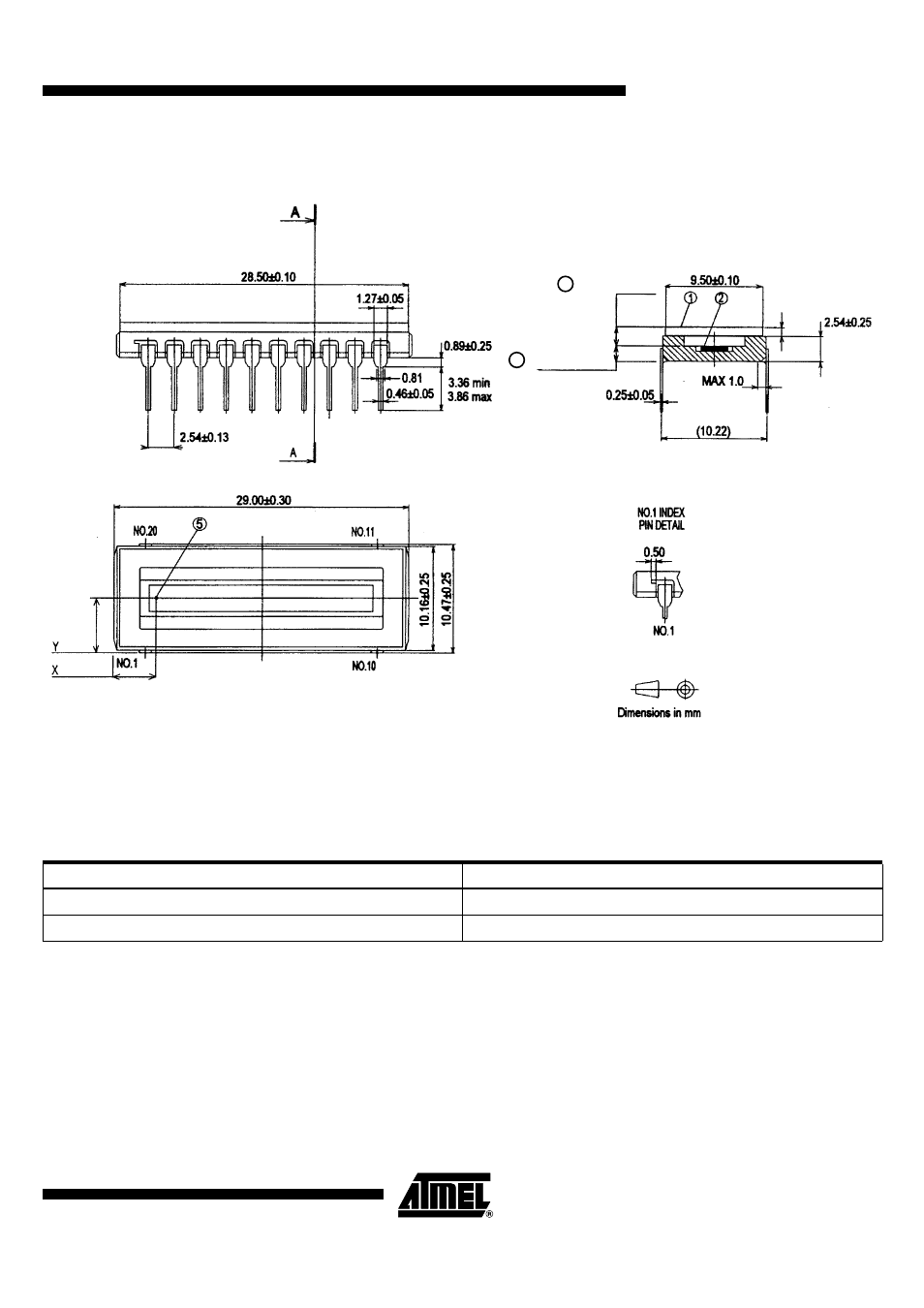

Package Drawing

Both devices have the same optical center

Notes:

1. Window
2. Photosensitive area
3. Optical distance between external face of window and photosensitive area
4. Optical distance between backside of package and photosensitive area
5. First pixel position (mm):

Ordering Code

TH7813ACC

TH7814ACC

TH7813A

TH7814A

X = 9.6 ± 0.4

X = 4.5 ± 0.4

Y = 5.2 ± 0.35

Z = 1.61±0.30

0.9±0.1

Z = 2.01±0.30
