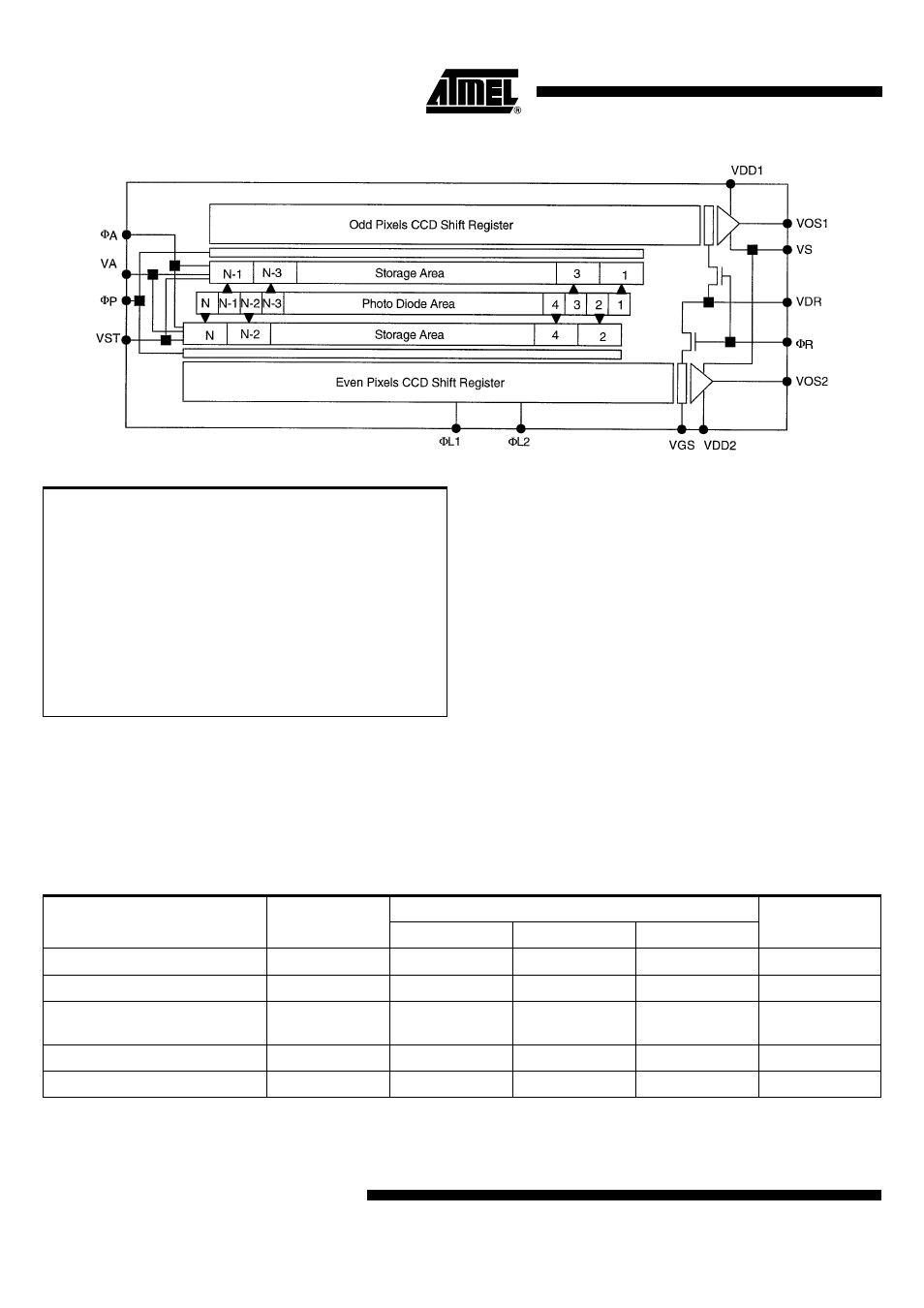

TH7813A/TH7814A
1990A–IMAGE–05/02
Note: Operating range defines the limits within which the functionality is guaranteed.
Electrical limits of applied signals are given in operating conditions section.
Operating Precautions Shorting the video outputs to any other pin, even temporarily, can permanently damage
the on-chip output amplifier.
Operating Conditions
Absolute Maximum Ratings*
Storage Temperature Range ......................... -55°C to +150°C *NOTICE: Stresses above those listed under absolute max-
imum ratings may cause permanent device fail-
ure. Functionality at or above these limits is not
implied. Exposure to absolute maximum ratings
for extended periods may affect device reliability.
Operating Temperature Range........................ -40°C to +85°C
Thermal Cycling..........................................................15°C/mn
Maximum Applied Voltages:
• Pin: 2, 8, 10, 11, 13, 14, 15 .................................. -0.3 to 15V
• Pin: 4, 5, 7, 17, 20 ................................................ -0.3 to 16V
• Pin: 1, 6, 9, 12, 16, 19 .........................................0V (ground)
Table 1. DC Characteristics
Parameter Symbol
Value
Unit Min Typ Max
Output Amplifier Drain Supply VDD1, VDD2 14.5 15 15.5 V
Storage Gate Bias VST 2.2 2.4 2.6 V
Antiblooming Gate (See Pixel
Saturation Adjustment)
Φ
A 2 4 7 V
Reset Bias VDR 13.5 14 14.5 V
Antiblooming Diode Bias VA 14.5 15 15.5 V
