Detailed Description
The MAX13013–MAX13017/MAX3023–MAX3028 logic-
level translators provide the level shifting necessary to
allow 100Mbps data transfer in a multivoltage system.
Externally applied voltages, V
CC
and V
L
, set the logic
levels on either side of the device. Logic signals pre-
sent on the V
L
side of the device appear as a higher-
voltage logic signal on the V
CC
side of the device, and
vice-versa. The MAX13013/MAX13014/MAX3023 bidi-
rectional level translators allow data translation in either
direction (V
L
↔V
CC
) on any single data line. The
MAX13015/MAX13016/MAX13017/MAX3024–MAX3028
unidirectional level translators, level shift data in one
direction (V
L
→ V
CC
or V
CC
→V
L
) on any single data
line. The MAX13013–MAX13017/MAX3023–MAX3028
accept V
L
from +1.2V to (V
CC
- 0.4V) and operate with
V
CC
from +1.65V to +3.6V, making them ideal for data
transfer between low-voltage ASICs/PLDs and higher
voltage systems.
When in tri-state mode, the MAX13013–MAX13017/
MAX3023–MAX3028 reduce the V
CC
supply current to
0.03µA, and the V
L
supply current to 0.1µA. These
devices operate at a guaranteed data rate of 100Mbps
for V
L
> 1.8V.
Level Translation
For proper operation, ensure that +1.65V
≤ V
CC
≤ +3.6V,
and +1.2V
≤ V
L
≤ V
CC
- 0.4V. During power-up
sequencing, V
L
≥ V
CC
does not damage the device.
During power-supply sequencing, when V
CC
is floating
and V
L
is powering up, up to 40mA current can be
sourced to each load on the V
L
side, without the device
latching up. The maximum data rate depends heavily on
the load capacitance (see the Typical Operating
Characteristics Rise/Fall Time graph), output impedance
of the driver, and the operating voltage range (Table 1).
Input Driver Requirements
The MAX13013–MAX13017/MAX3023–MAX3028 archi-
tecture is based on a one-shot accelerator output stage
(see Figure 5). Accelerator output stages are in tri-state
mode except when there is a transition on any of the
translators on the input side, either I/O V
L_
or I/O V
CC_
.
A short pulse is then generated during which the accel-
erator output stages become active and charge/dis-
charge the capacitances at the I/Os. Due to the
architecture, both sides become active during the one-
shot pulse. This can lead to some current feeding into
the external source that is driving the translator.
However, this behavior simply helps to speed up the
transition on the driven side.
Table 1. Data Rate
V
L
(V)
GUARANTEED DATA RATE (Mbps)
V
L
< 1.8
80
V
L
≥ 1.8
100
P
ONE-SHOT
V
CC
V
L
I/O V
L
I/O V
CC
150
Ω
4k
Ω
I/O V
CC_
TO I/O V
L_
PATH
I/O V
L_
TO I/O V
CC_
PATH
N
ONE-SHOT
P
ONE-SHOT
N
ONE-SHOT

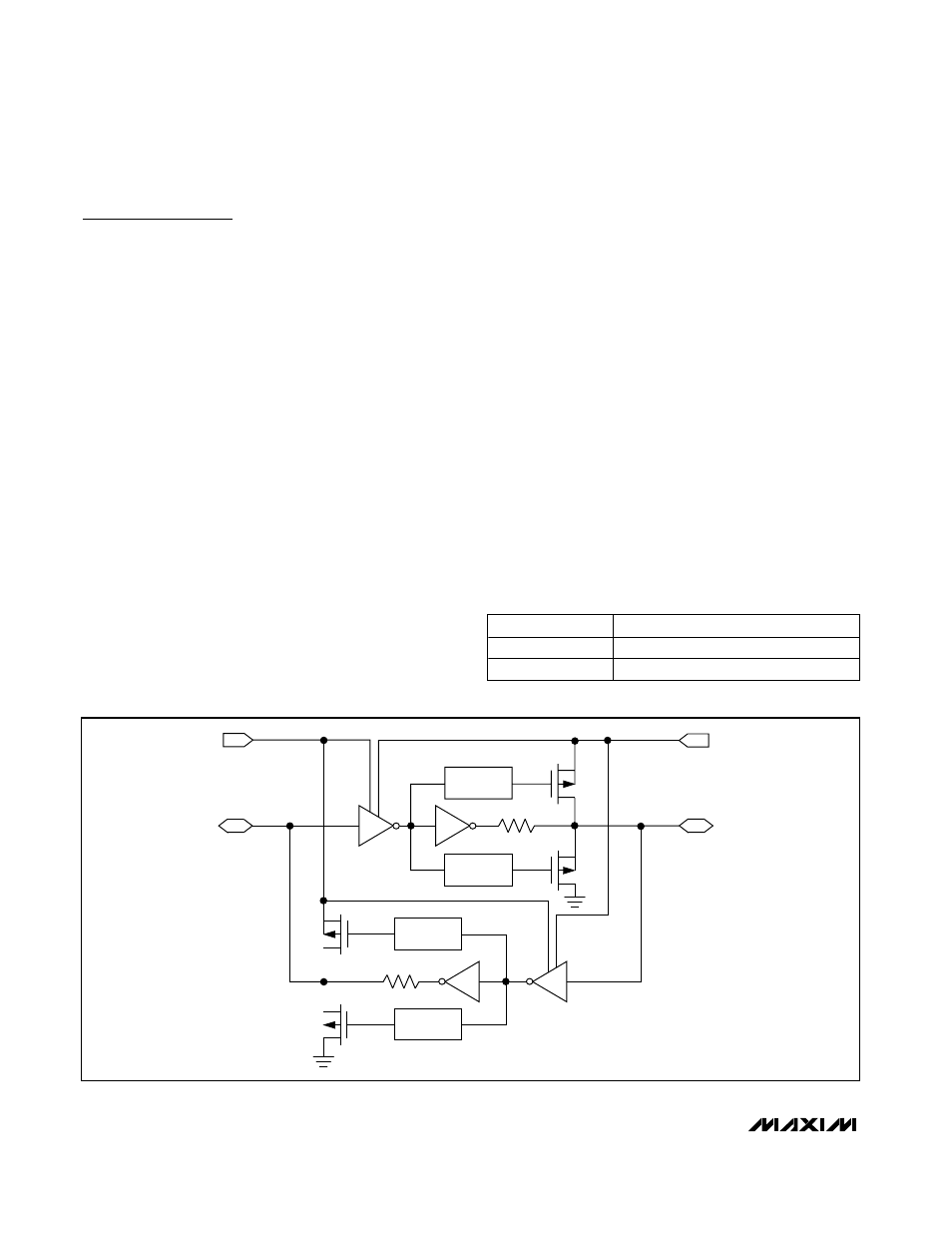

Figure 5. Simplified Functional Diagram (One I/O Line)
