Tri-state test circuit and waveforms, Typical performance characteristics – Rainbow Electronics ADC08161 User Manual
Page 8

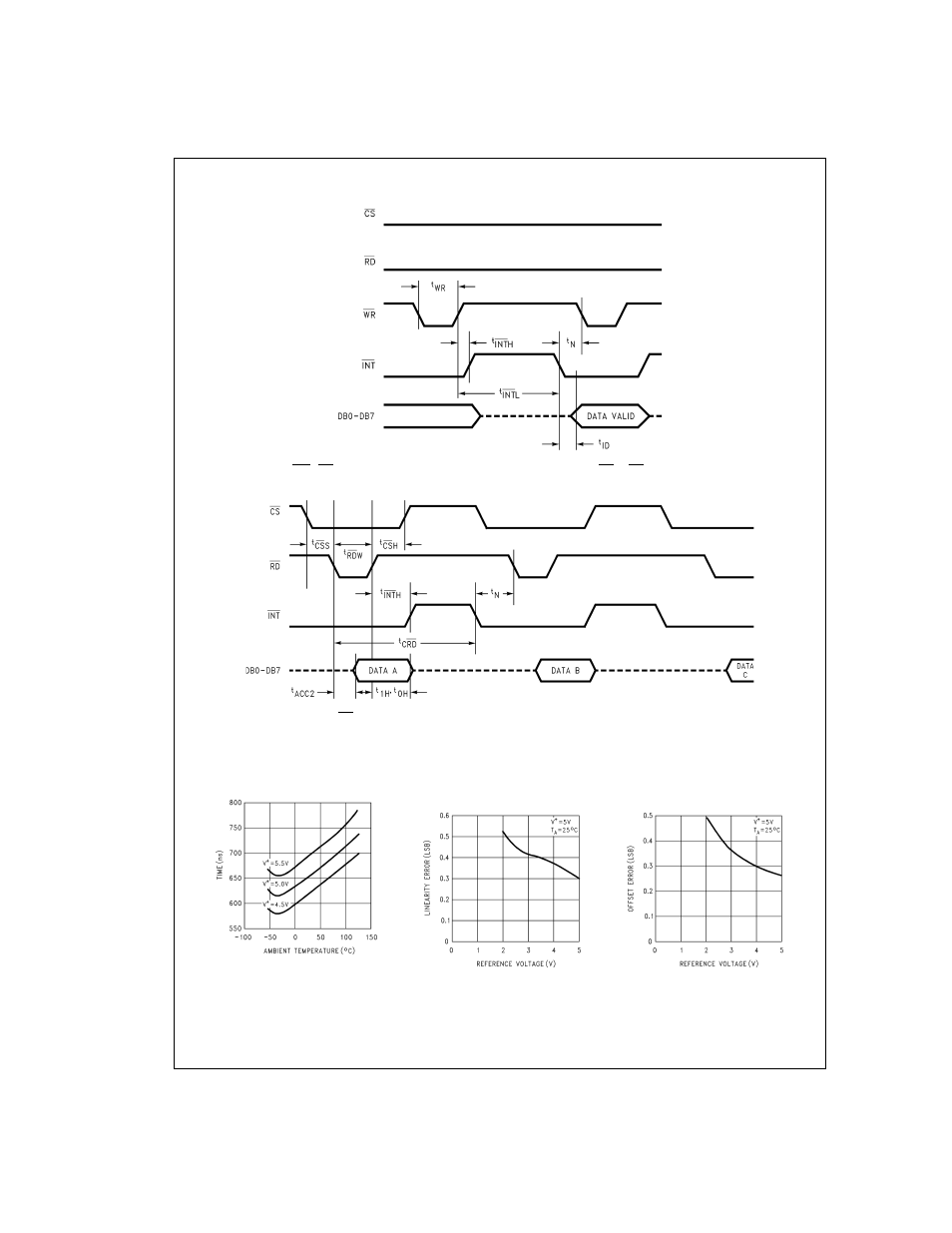

TRI-STATE Test Circuit and Waveforms
(Continued)
Typical Performance Characteristics
DS011149-9
FIGURE 4. WR -RD Mode Reduced Interface System Connection with CS = RD = 0 (Mode Pin is High)
DS011149-10
FIGURE 5. RD Mode (Pipeline Operation); t
RDW
must be between 200 ns and 400 ns.
(Mode Pin is Low)
t
CRD
vs Temperature
DS011149-23
Linearity Error vs
Reference Voltage
DS011149-24
Offset Error vs
Reference Voltage
DS011149-25
www.national.com
8
