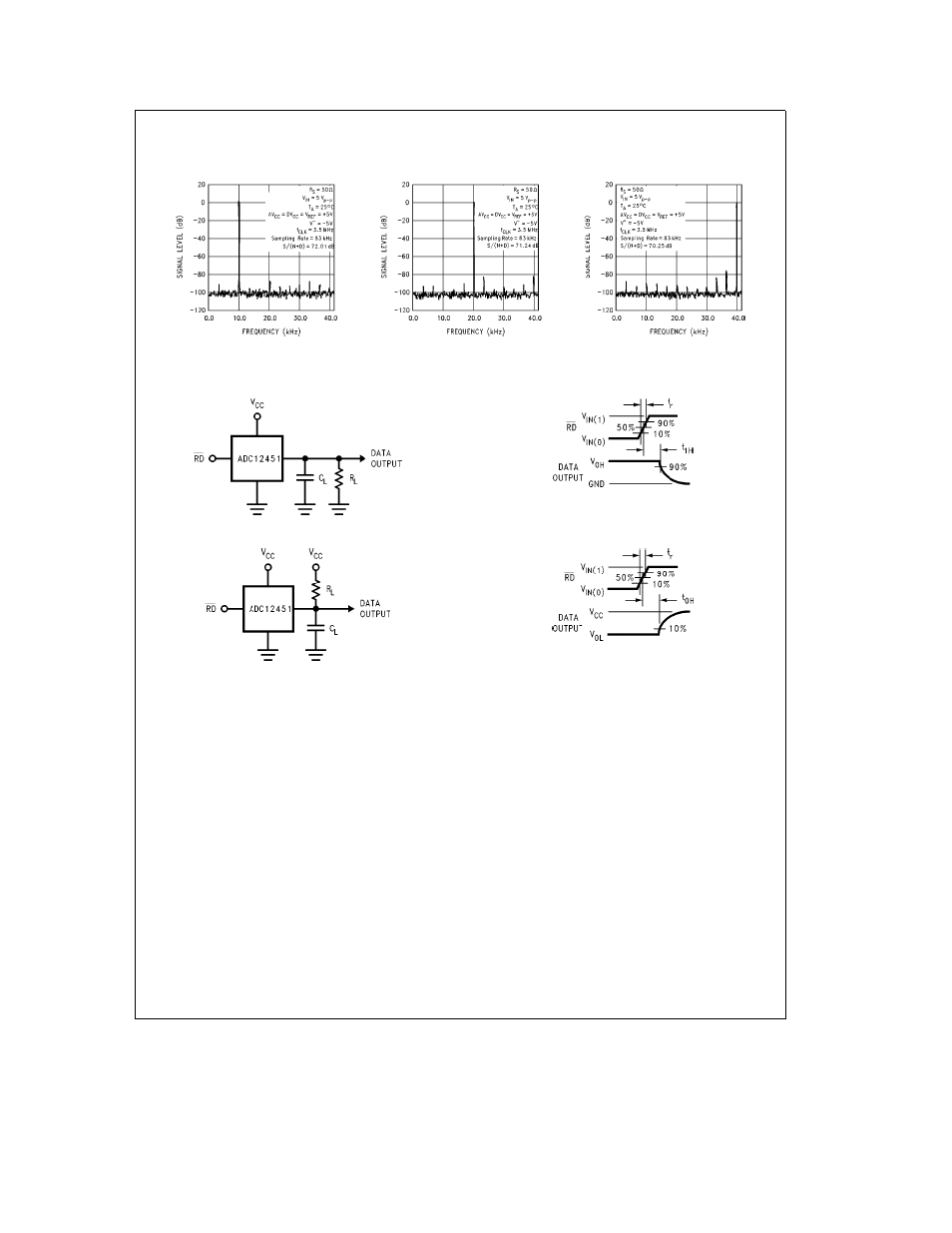

Typical Performance Characteristics
(Continued)
with 10 kHz Sine Wave Input
Unipolar Spectral Response
with 20 kHz Sine Wave Input
Unipolar Spectral Response
with 40 kHz Sine Wave Input
Unipolar Spectral Response
TL H 11025 – 11
Test Circuits
TL H 11025 – 12
TL H 11025 – 13
TL H 11025 – 14
TL H 11025 – 15
FIGURE 2 TRI-STATE Test Circuits and Waveforms
9
