MAX9634

1µA, 4-Bump UCSP/SOT23,

Precision Current-Sense Amplifier

_______________________________________________________________________________________

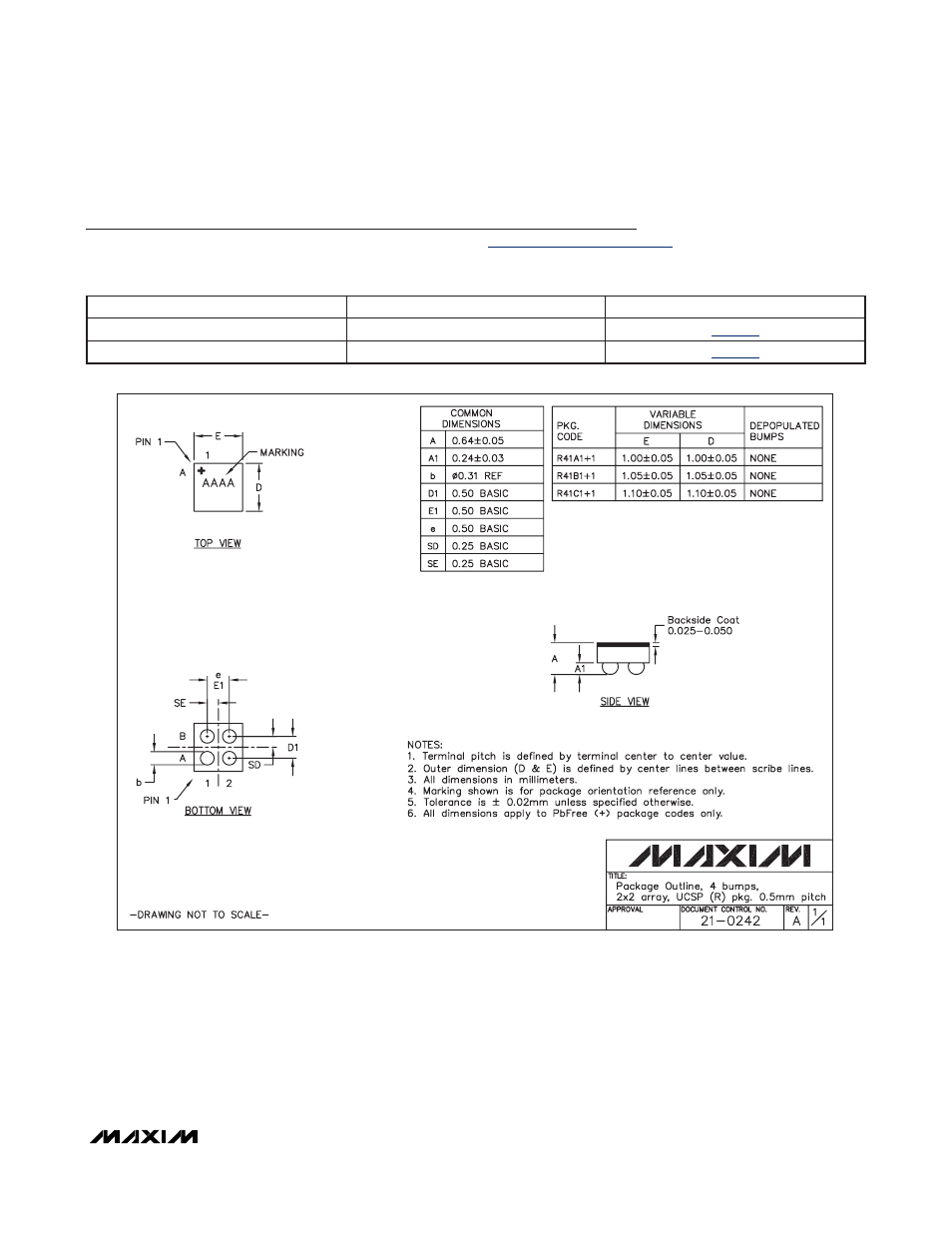

2x2 UCSP.EPS

Package Information

For the latest package outline information and land patterns, go to

www.maxim-ic.com/packages

. Note that a "+", "#", or "-" in the

package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the
package regardless of RoHS status.

PACKAGE TYPE

PACKAGE CODE

DOCUMENT NO.

2 x 2 UCSP

R41A1+1

21-0242

5 SOT23

U5-2

21-0057
