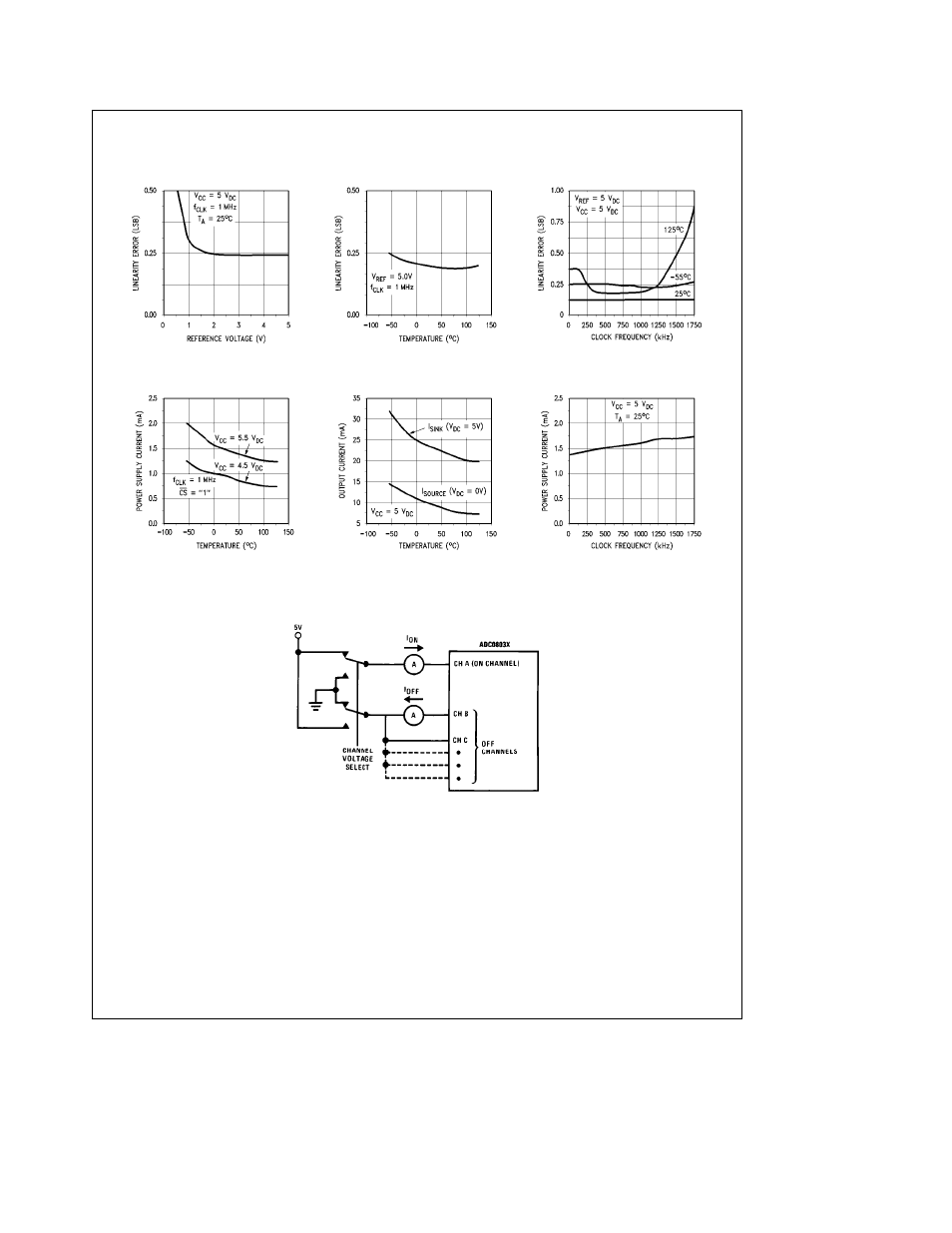

Typical Performance Characteristics
Reference Voltage
Linearity Error vs
Temperature
Linearity Error vs
Clock Frequency
Linearity Error vs
ADC08034 ADC08031)
Temperature (ADC08038
Power Supply Current vs
Temperature
Output Current vs
vs Clock Frequency
Power Supply Current
TL H 10555 – 6
Note
For ADC08032 add I
REF
Leakage Current Test Circuit
TL H 10555 – 7
