Applications
(Continued)

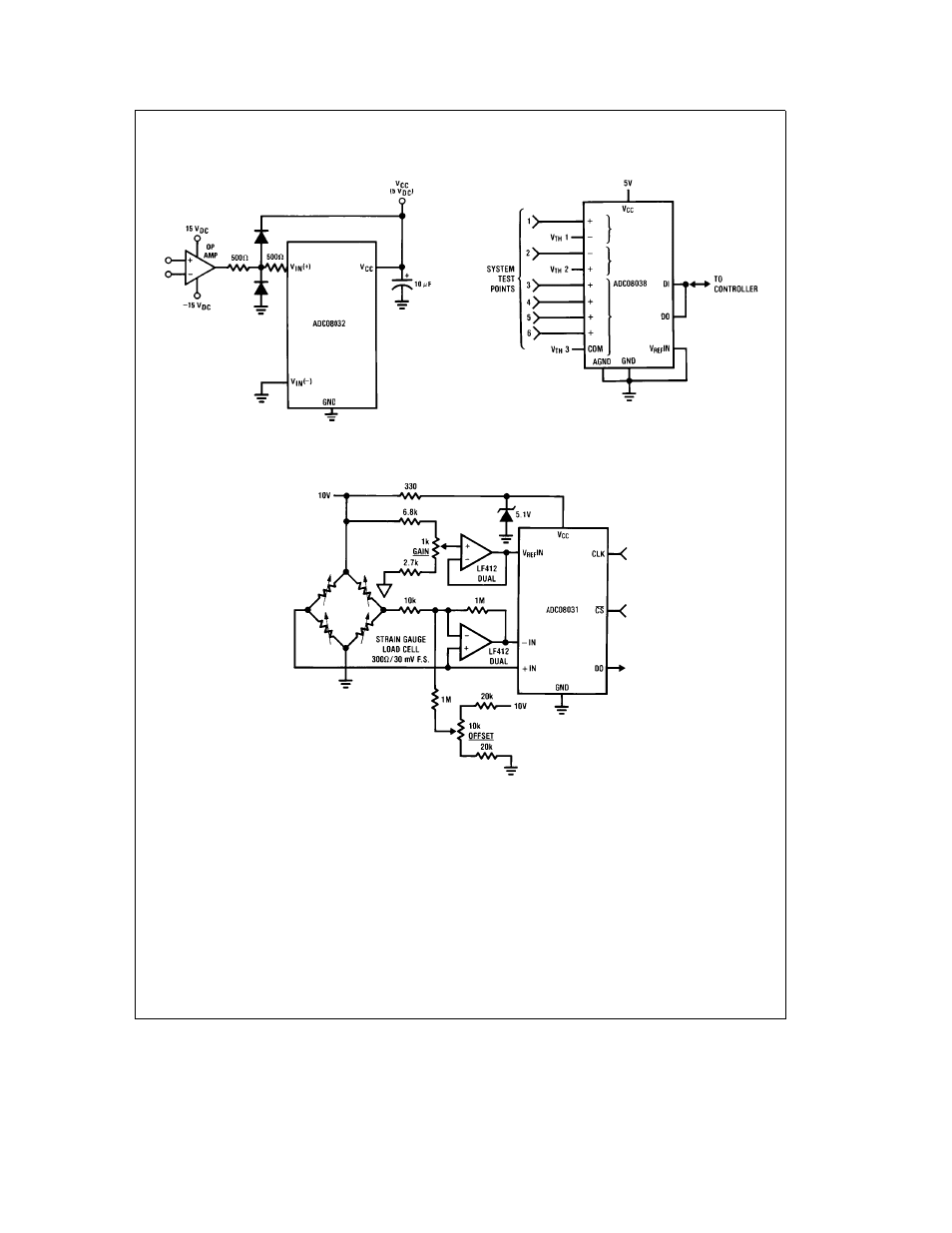

Protecting the Input
Diodes are 1N914
TL H 10555 – 25
High Accuracy Comparators
DO e all 1s if a V IN l b V IN
DO e all 0s if a V IN k b V IN TL H 10555 – 26
Digital Load Cell
TL H 10555 – 27
Uses one more wire than load cell itself
Two mini-DIPs could be mounted inside load cell for digital output transducer
Electronic offset and gain trims relax mechanical specs for gauge factor and offset
Low level cell output is converted immediately for high noise immunity
19
